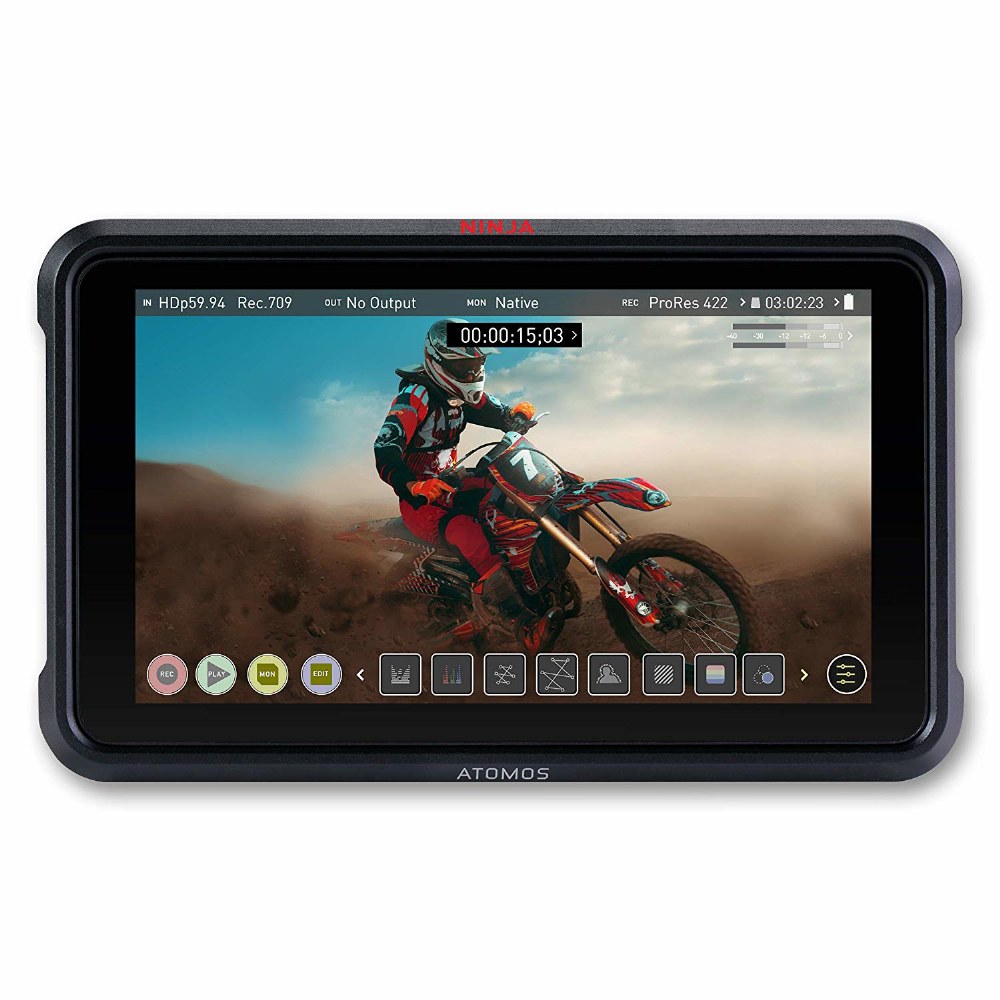

Atomos Ninja V

Atomos Ninja V


EAN / UPC : 814164021173 | Brand : Atomos | SKU : ATOMNJAV01

Available Options:


    Notify Me     Request Delivery Info

add to order       Add to Wish List       Add to Registry

Out-of-stock items may still be ordered, and will be supplied as promptly as possible.

Promotions & Cashbacks

Claim a free Assimilate Play Pro Studio license

Eliminate your camera’s internal compression and time limits – record up to 4Kp60 10-bit HDR video direct from your camera's sensor over HDMI 2.0. Teamed with a 1TB AtomX SSDmini you can now achieve up to 150 minutes of 4K recording on a single drive! And when you’re done, your edit-ready ProRes and DNxHR recordings are stored on affordable SSD drives.

HDR/SDR perfection

The Ninja V displays 10+ stops of dynamic range in realtime from Log/ PQ/HLG signals. See your images clearly in daylight on the near edge-to-edge anti-reflection screen. Ninja V can be calibrated for perfect color accuracy every time, and also enables playout to HDR or SDR TV.

Compact Monitor Recorder made perfect

The new Ninja V features a stunningly bright 5.2” 10-bit HDR monitor with an astounding 1000 nits of output. The sleek aluminium body is crafted for maximum durability, weighing in at just 320g and measuring only 25mm thick – easily attaching to any camera rig.

Pocket size playback

AtomOS allows accurate set up and one-touch operation, ensuring a great recording every time. Of course, a recording isn't complete until checked; Ninja V allows instant playback, slow motion and frame-by-frame analysis for immediate review.

Record 4K HDR Gaming

Ninja V is a stand-alone system for 4k UHD, HDR and high frame rate capture that eliminates expensive, complicated and unreliable PC setups. Ninja V enables simple recording, monitoring and instant review. Capture every detail in HDR and automatically include all the correct HDR flags ready for upload to YouTube. Ideal for games development testing, pre-release capture sessions or just to show off your skills!

Edit, finish & upload

Ninja V files are available immediately on your Mac or PC. Tag on-the-fly while recording for direct-to-edit look up in Final Cut Pro X, Adobe Premiere and Avid Media Composer. Both video and gaming workflows are supported for the fastest path to your audience.

SSD made Mini

We have worked closely with our drive partners at Angelbird and Sony to bring you the AtomX SSDmini. These tiny drives are only 7mm high and 80mm long. They retain the same SATA III connector as traditional SSDs and they are backward compatible with our range of Ninja, Shogun and Sumo devices.

Looks good, sounds great!

Like all Atomos Monitor/Recorders, Ninja V enables audio input directly from your camera. Choose from digital source via HDMI, or analogue input via the stereo 3.5mm line/mic socket, depending on your rig.

Physical Specifications
Dimensions (W x H x D mm) 151 x 91.5 x 31 mm
Weight 360g / 12.7oz
Mount points Anti-rotational 3/8-16 screw mount points, 1/4-20 screw mount adaptor installed. 1x top and 1x bottom
Ambient operating temperature Up to 40° C
Construction and Control
Body Aluminium alloy chassis with ABS Polycarbonate back plate
Cooling Actively controlled fan and heat sink
Tally light Rear and front
Multi-function button Power / lock Screen
AtomXpansion slot Yes
Input voltage 5.8 - 7.2V (Battery)
Operating power 10-22W
Compatible batteries NP-F L series and supporting accessories
Built in battery No
Battery Run time (Record) 5200mAh - up to 2hrs (monitor & record 4K 60p)7800mAh - up to 3hrs (monitor & record 4K 60p)
Battery Run time (Monitor only) 5200mAh - up to 2hrs (monitor & record 4K 60p). 7800mAh - up to 3hrs (monitor & record 4K 60p)
Continuous power Enabled by optional AtomX SYNC Expansion Module
DC in connector Via DC Jack on Battery Eliminator
Dtap Via Battery Eliminator and optional D-Tap to DC cable
Touchscreen SuperAtom IPS panel (capacitive touch) calibration to Rec.709 with optional calibration unit
Size 5.2"
Resolution 1920 x 1080
PPI 423
Bit depth 10Bit (8+2 FRC)
Backlight Type Edge lit
Brightness (cdm2 / nits) 1000
Aspect ratio 16:9
Color Gamut Rec.709
Calibration support Atomos Calibrator with Calibrite ColorChecker Display Pro or ColorChecker Display Plus
Color Pipeline
Gamma Sony SLog / SLog2 / SLog3, Canon CLog / CLog2 / Clog3, ARRI Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320 / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600, Nikon N-Log, Panasonic V-Log, JVC J-Log1, Olympus OM-Log400 / Flat, Lecia L-Log, Z Cam Z-Log2, RED LogFilm / RED Log3G10 / RED Log3G12, FujiFilm F-log, PQ (HDR10), HLG
Gamut Sony SGamut / SGamut3 / SGamut3.cine, Canon Cinema, DCI P3 / DCI P3+, Nikon NLog, Panasonic V-Gamut, Arri Alexa Wide Gamut, Rec709, BT.2020, FujiFilm F-Gamut, JVC LS300, RED WideGamut / RED DragonColor / DragonColor2 / RED Color2 / RED Color3 / RED Color4
3D LUT Display .Cube Format
3D LUT Down Stream Loop out
3DLUT 50/50 Yes
Monitoring Modes Native / HLG / PQ / 3D LUT
HDR output Conversion Log / HDR to HLG / PQ / Dolby Vision
Video Input
HDMI 1 x HDMI (2.0) 4K p60
HDMI RAW Apples ProRes RAW up to 6K
SDI Optional via AtomX SDI module
SDI RAW Optional with AtomX SDI module + SDI RAW activation
Bit Depth 8/10-bit Video / RAW up to 12-bit
Video Chroma Subsampling 4:2:2
HDCP copy protection Not supported
HDMI RAW - white balance, exposure index, shutter speed/angle, iris F stop, ISO, gamma, gamut
SDI File name from Arri, RED
Video Output
HDMI 1 x HDMI (2.0) 4k p60
SDI loop out Optional Via AtomX SDI module
SDI Play out Optional Via AtomX SDI module
Video Chroma Subsampling 4:2:2
Bit Depth 10-bit Video / 12-bit RAW
Web Streaming
USB UVC Optional via Connect 4K
Video Signal Conversion
HDMI to SDI Optional Via AtomX SDI module
SDI to HDMI Optional Via AtomX SDI module
Audio In/Out
Audio Quality 24-bit 48kHz
Audio Codec PCM
HDMI 8ch 24-bit, input dependent
SDI 12ch 24-bit, input dependent
Analogue Audio in 3.5mm 2ch.
Headphone out 3.5mm 2ch.
Timecode / Sync
Embedded HDMI and SDI
Time of day Yes, Time and Date
LTC via 3.5mm audio Jack input (requires post processing)
Wireless SYNC Via Optional AtomX SYNC Module
Resolution and Frame Rates (Record, Monitor & Playback)
6k RAW Only up to 30p via HDMI
5k RAW Only up to 29.97p via HDMI.
4k DCI 23.98/24/25/29.9/30/50/59.94/60p
4k UHD 23.98/24/25/29.9/30/50/59.94/60p
2K DCI 2046 x 1080 Optional via AtomX SDI module
Anamorphic 3.5k: RAW up to 60p (from supported cameras only)
FHD 1920 x 1080 Progressive 23.98/24/25/29.9/30/50/59.94/60/100/120p
FHD 1920 x 1080 PsF converted to P and looped out PsF
FHD 1920 x 1080 Interlaced 23.98/24/25/29.9/30/50/59.94/60i
1280 x 720p 50/59.94/60p
Recording CODEC
Apple ProRes RAW ProRes RAW & RAW HQ
Apple ProRes LT, 422, 422HQ
Avid DNxHD 220x, 220, 145, 36
H.265 LQ, MQ, HQ in 8/10Bit, 4 2 2 and 4 2 0 (Optional activation via
Playlist Yes, create playlists from full or sub clips
Loop Yes, with user customizable in / out markers
Apple ProRes Raw Yes, recorded clips
Apple ProRes Yes, with Linear PCM audio
Avid DNx Yes, with Linear PCM audio
H.265 Yes, with Linear PCM audio (once activated)
Recording functions
Pre-roll record Yes (HD 8s, 4K 2s) - Not available in RAW
Timelapse Yes
Multi Input / Switching
SDI A/B toggle via optional AtomX SDI module
Supported media
Master Caddy I Not compatible
SSDmini Native size and fit
CFast II Supported cards via optional AtomX CFast Adapter
File Naming Unit Name - Scene/Shot/Take
File System ExFAT
On screen tools
Waveform Yes, 3 size / position
RGB parade Yes, 3 size / position
Vector scope Yes, 2 size / position
1 x Zoom Yes. 1:1 Pixel mapping for 4k
2 x Zoom Yes
Focus peaking Colour selected / threshold setting / color / mono / edges only
False colour Yes, with scale
Zebra Yes, adjustable
Isolate color channel Blue Only
Cine Frame Guides 2.4:1, 2.35:1, 1.9:1, 1.85:1, 4:3
Social Frame guides 9:16, 1:1, 1.91:1, 4:5
Safe areas Action and Graphic
Grid markers 9 grid
Anamorphic desqueeze 1.25x 1.33x , 1.5x ,1.8x ,2x
Display Flip Vertical Only
Onboard Signal Processing
Pulldown Removal 24/25/30pSF > 24/25/30p (2:2 pulldown)60i > 24p (3:2 pulldown)
4K UHD Downscale for HD Loop out - 4K UHD to FHD
DCI Crop Loop out - 17:9 to 16:9 Crop
Remote control
HDMI Auto HDMI Trigger, Supported Protocols - Canon, Sony,Atomos Open Standard
SDI SDI trigger camera selectable
Serial 2.5mm Jack LANC control and calibration via optional USB to serial cable
Bluetooth LE via optional AtomX SYNC module
Wireless RF via optional AtomX SYNC module
External Device Control
Serial 2.5mm Jack Camera control for supported cameras via Optional USB to Serial Cable
Bluetooth LE via optional AtomX SYNC module to compatible devices
Wireless RF via optional AtomX SYNC module to compatible devices
Supported Applications
Apple ProRes RAW Apple FCP, Adobe Premiere, After Effects, Avid Media Composer, GrassValley Edius, Assimilate Scratch, Baselight Film Light.
Video Codecs All Applications with support for Apple ProRes and Avid DNX in .MOV wrapper
What’s in the box
Ninja V Ninja V, 1 x Battery eliminator, 1 x international DC power supply, 1 x MasterCaddy II and QuickStart Guide
Ninja V Pro Ninja V (with SDI RAW pre-activated), AtomX SDI Expansion Module, DC to D-Tap cable, 1x 5" Sunhood, 1 x Atomos Connect 4K unit, 1 x Battery eliminator, 1 x international DC power supply, 1 x MasterCaddy II and QuickStart Guide
Optional extras 5" Accessory kit, Sunhood, DC to D-Tap, Power Kit, HDMI cables, USB to serial cable, AtomX SYNC module, AtomX SDI module, AtomX CAST module
Standard 1 year. Extended to 3 years on product registration

custom image

Atomos devices can monitor and record professional audio and video from any HDMI or SDI device. Not only cameras, but also Mac, PC, Game Consoles and Industrial devices. While the devices can record almost anything, to be useful you'll want to ensure that your camera has a "clean output" i.e. no menu information on the sensor output. The list below will allow you to browse cameras that are compatible with a specific Atomos device. To search for compatible Atomos devices based on the camera you own try their ALL PRODUCTS page.

custom image

The AtomRemote app provides external controls for ATOMOS devices including the Shogun CONNECT, NEON 17, and NEON 24; as well as the NINJA V and NINJA V+ equipped with the ATOMOS CONNECT accessory or an AtomX SYNC module.

The external remote control not only brings freedom to create, but also means flexibility on the field. Shooting in specific situation is sometimes a challenge for creators; space related issues, reduced staff on set and creative needs where external control of the unit seems to be the only option to get the shot! All that creators need to do to start enjoying access to the main monitoring functions and recording setting from iPhone, iPad or computer is to update their Ninja V or Shogun CONNECT to the latest firmware AtomOS 10.84, install the AtomRemote APP in their iOS device. That’s it!

The app communicates wirelessly via Bluetooth LE to perform remote configuration and operation tasks. Input options let you select connection type, select gamma/EOTF, and adjust gamut settings. For monitoring, AtomRemote can control playback, select dynamic-range settings, apply custom 3-D LUTs, and use default color-space transformations. Output controls provide options for 4K-to-HD downconversion and HDR output. In addition to starting and stopping a recording, AtomRemote can activate a full suite of image-analysis tools, including exposure and focus assistance.

  • AtomRemote enables configuration and operations via Bluetooth® LE to:
  • define camera connections to switch between HDMI/SDI inputs
  • select gamma/EOTF and make gamut settings to convert LOG to an HDR image
  • remotely operate recording and playback functions
  • activate on-screen tools such as focus peaking, 1:1 zoom, frame guides, waveforms
  • select monitoring modes use i.e., use Native to display the incoming signal as is, or monitor in HDR by using the HLG and PQ modes
  • apply custom 3D LUTs to preview creative looks on set, or baking a LUT into the recording for quick turnarounds

Being able to adjust these settings remotely is ideal for situations when it is difficult or unsafe to access your rig, such as when it is mounted out of reach as part of a “crash cam" setup or on a gimbal or stabilizer.

Visit the App Store for more details or to download AtomRemote today.
