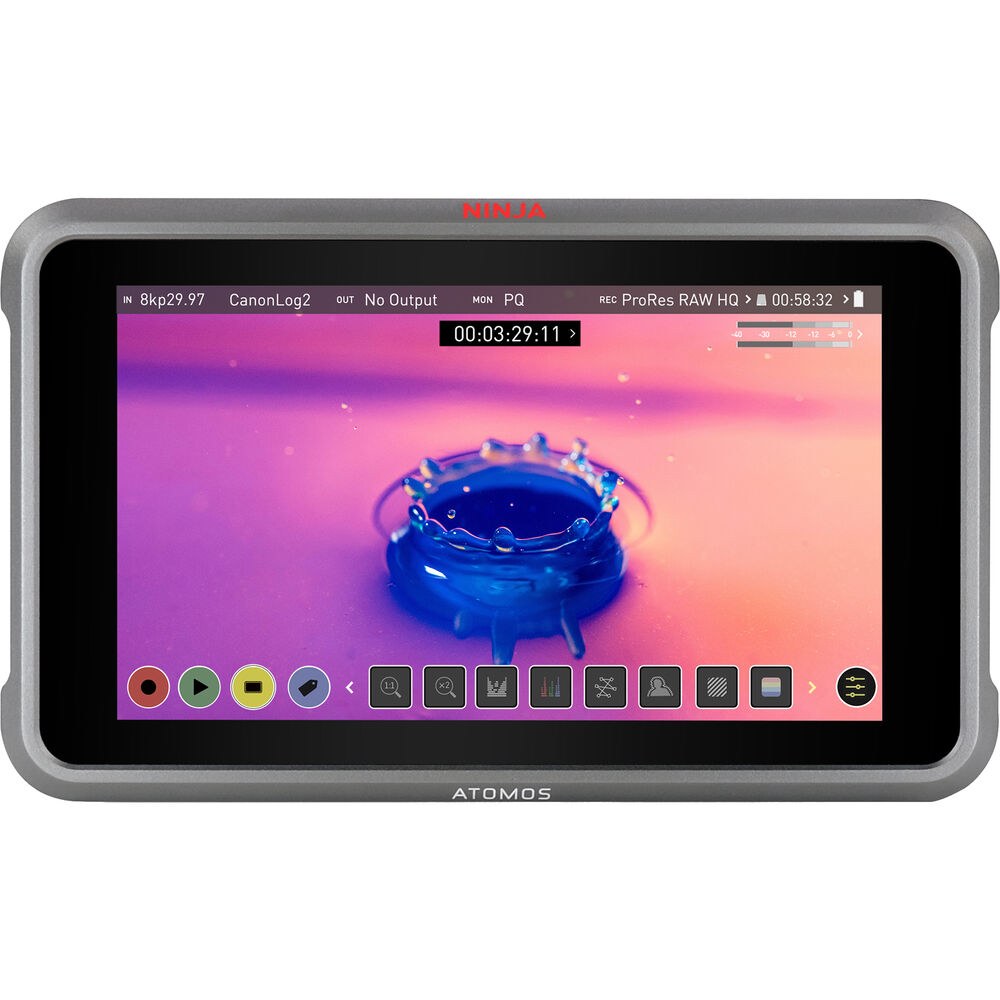

Atomos Ninja V+
Atomos Ninja V+
EAN / UPC : 814164022569 | Brand : Atomos | SKU : ATOMNJVPL1
Promotions & Cashbacks
Claim a free Assimilate Play Pro Studio license
The Ninja V+ is the next stage in the evolution of the multi-award winning Atomos Ninja, delivering up to 8Kp30 and 4Kp120 continuous recording in Apple ProRes RAW while inheriting HDR, 4Kp60 RAW and video as well as HDp120 slow motion from it’s little brother, Ninja V.
With the ability to capture in 8Kp30 and 4Kp120, the Ninja V+ allows you to stay ahead of the game and manage your projects whilst ensuring that you have the flexibility to grow your system. Future-proofed quality and formats allow you to stay compatible with newly released and existing cameras, in a world where new cameras are released frequently and technology is advancing at an incredible pace.
The Ninja V+ takes advantage of the new Atomos Silicon chip, the AtomIC3, AtomOS 10 and the incredible efficiency of ProRes RAW to deliver these increased resolutions and frame rates. The new formats also integrate seamlessly into the timeline of your existing ProRes RAW or ProRes projects, without huge storage or processing overheads.
Atomos 5" Accessory Kit for Shinobi / Shinobi SDI / Ninja V / Ninja V+ Monitors
Out of Stock
Out of Stock
Open Standard Formats from Every Camera
Apple ProRes is the world’s Pro Video standard for Video and RAW capture, and the number of cameras which support RAW recording over HDMI on the Ninja V+ continues to grow. ProRes RAW combines the visual and workflow benefits of RAW video with the incredible real-time performance of ProRes, giving filmmakers enormous latitude when adjusting the look of their images, making it an ideal solution for HDR workflows.
The Ninja V+ also captures up to 4Kp60 in 10-bit 4:2:2 from almost every camera manufacturer, like Panasonic, Nikon, Olympus, Leica, Fujifilm, Z Cam, RED and ARRI. It also builds upon the great workflow and versatility of Ninja V, that unites the world’s leading camera manufacturers and the industry standard editing software for our customers.
The Ninja Solution
Smaller cameras are incredibly capable these days, but they can still be limited in terms of battery life when recording RAW and high frame rates, use expensive internal media and can have recording limits. The Ninja V+ provides a solution to these issues with longer recording times, professional power solutions and affordable SSD media options. In addition, you get a stunningly bright 5.2” monitor with an astounding 1000nits – 10.5 stops of HDR, plus a huge range of features that can enhance your workflow, from AtomOS Monitor Assist features like Focus Peaking, Zoom, Vectorscopes & False Color through to Safe Areas and Cine Guides. Our AtomHDR engine also processes the incoming Log/RAW/HDR signals from your camera or device and displays the HDR screen of the Ninja V+.
Ready for the future
The Ninja V+ will record 8Kp30 ProRes RAW from the Canon EOS R5 mirrorless camera via a standard HDMI 2.0 connection. Atomos and Canon have worked together for the past 2 years to bring customers a world first in capturing stunning 8K RAW and HDR images with incredible clarity and detail in a compact and configurable system that is very affordable in comparison to other 8K setups. Explore all possibilities when shooting in 8K. Canon and Atomos have democratized 8K for the masses with no compromise in quality. More to come in late 2021 with an update from Canon.
Starting with the Canon EOS R5
The ProRes RAW format is a perfect vehicle for an 8K workflow, from ease of use natively on the timeline within Final Cut Pro to the flexibility of RAW image processing with full adjustment of Exposure, WB and ISO. Coupled with the proven Full Frame EOS R5, lens systems and AF, this combination will propel content creators to a whole new level in terms of image quality and production value.
More Power. Less Weight.
Pairing the Ninja V+ with the Canon EOS R5 gives you a powerful yet compact 8K camera package that fits in your hands and can be flexibly built out to suit your needs. It can be the basis of a compact cinema rig or you can easily create a lightweight setup. The Canon EOS R5 with a 24mm Cine Lens, Ninja V+, NPF battery and media comes in under 3KG/7lb, which can be easily carried by a wide range of aerial drones, gimbals and stabilizers, vehicles and robot arms.
Resolution means Creative Flexibility
With the broad canvas of 8K resolution, your options for creative crops into a region of interest, allowing you to extract multiple 4K shots from a single camera angle. This allows you to create additional shots for cutaways to break up the edit that are higher in resolution than if the shots were extracted from a single 4K source.
Create multiple high-resolution vertical or square crops in regions of interest in post for social media, which can be previewed on the Ninja V+ with social media frame guides. This allows you to maximize the camera’s resolution to achieve 4K 9:16 vertical aspect ratios without having to compromise the way you shoot for mainstream delivery.
Stabilise Without Compromise
With the incredible resolution of 8K video, the final shot will likely still have a resolution of 4K or 6K. You can integrate with other 8K footage on the timeline and still look great.
Razor Sharp Screenshots
High resolution screenshots from 8K full frame cameras offer the ability to create scene plates for small scale virtual production stages or use in other content platforms.
Pristine 4Kp120 ProRes RAW
The Ninja V+ allows you to capture content at up to 4Kp120 in pristine ProRes RAW for high frame rate video that has exceptional image quality. This is a great alternative to using the internal compressed codecs on your camera for high frame rate recording, as they can apply higher levels of colour compression and subsampling, leading to potential artifacts or limitation in the edit/grade.
See the Unseen
Capture and visualize the unseen with 4Kp120 recording at up to ProRes RAW from the Ninja V+ and Sony FX6/FX9 and Z CAM E2 /E2-M4 models, with more models to follow. Fully harness the dynamic range of the sensor, capture every aspect of motion and movement directly via RAW over SDI* or HDMI. Another benefit is being able to play back the high frame rate video captured on the Ninja V+ at various play back speeds to preview the adjustments you can make on your NLE timeline. See the Ninja V+ Pro Kit section for information on capturing 4Kp120 ProRes RAW from the SDI RAW output of the Sony FX9* and Sony FX6*.
*The FX9 requires the XDCA-FX9 Extension unit and both the FX6 and FX9 require the AtomX SDI module with RAW activation (or the Pro Kit).
An Incredible Codec Arsenal
With the flexibility of providing options for RAW, visually lossless edit ready files, and proxy/sharable files, scale your needs for quality and file size.
- Apple ProRes RAW – supporting 16bit RAW outputs from camera via HDMI and optionally via SDI
- Apple ProRes – An industry standard edit-ready codec from Apple with scalable levels of compression
- Avid DNx – An industry standard edit-ready codec for Avid editors with scalable levels of compression
- H.265 (HEVC) – The highly efficient compressed codec allows you to create high-quality files with a low bit rate and small file size for sharing. You can also create 4K HDR 10-bit deliverables and have the option to ‘bake in’ LUTs to achieve the final pixel LOOK without the need to grade the footage.
Atomos devices can monitor and record professional audio and video from any HDMI or SDI device. Not only cameras, but also Mac, PC, Game Consoles and Industrial devices. While the devices can record almost anything, to be useful you'll want to ensure that your camera has a "clean output" i.e. no menu information on the sensor output. The list below will allow you to browse cameras that are compatible with a specific Atomos device. To search for compatible Atomos devices based on the camera you own try their ALL PRODUCTS page.
|Dimensions (W x H x D mm)||151 x 91.5 x 31 mm|
|Weight||360 g / 12.7 oz|
|Mount points||Anti-rotational 3/8-16 screw mount points, 1/4-20 screw mount adaptor installed. 1x top and 1x bottom|
|Ambient operating temperature||Up to 40 Degrees Celsius|
|Construction and Control|
|Body||Aluminium alloy chassis with ABS Polycarbonate back plate|
|Cooling||Actively controlled fan and Heat Sink|
|Tally light||Rear and front|
|Multi-function button||Power / lock Screen|
|Input voltage||5.8 - 7.2V (Battery)|
|Compatible batteries||NP-F L series and supporting accessories|
|Built in battery||No|
|Battery Run time (Record)||5200mAh - up to 2hrs (monitor & record 4K 60p) 7800mAh - up to 3hrs (monitor & record 4K 60p)|
|Battery Run time (Monitor only)||5200mAh - up to 2hrs (monitor & record 4K 60p). 7800mAh - up to 3hrs (monitor & record 4K 60p)|
|Continuous power||Enabled by optional AtomX SYNC Expansion Module|
|DC in connector||Via DC Jack on Battery eliminator|
|Dtap||Via Battery Eliminator and optional D-Tap to DC cable|
|Touchscreen||SuperAtom IPS panel (capacitive touch) calibration to Rec.709 with optional calibration unit|
|Resolution||1920 x 1080|
|Bit depth||10Bit (8+2 FRC)|
|Backlight Type||Edge lit|
|Brightness (cdm2 / nits)||1000 +/- 10%|
|De-interlace mode||I > P and PSF > P|
|Calibration support||Atomos Calibrator with Calibrite ColorChecker Display Pro or ColorChecker Display Plus (Retail)|
|Gamma||Sony SLog / SLog2 / SLog3, Canon CLog / CLog2 / Clog3, ARRI Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320 / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600, Nikon N-Log, Panasonic V-Log, JVC J-Log1, Olympus OM-Log400 / Flat, Lecia L-Log, Z Cam Z-Log2, RED LogFilm / RED Log3G10 / RED Log3G12, FujiFilm F-log, PQ (HDR10), HLG|
|Gamut||Sony SGamut / SGamut3 / SGamut3.cine, Canon Cinema, DCI P3 / DCI P3+, Nikon NLog, Panasonic V-Gamut, Arri Alexa Wide Gamut, Rec709, BT.2020, FujiFilm F-Gamut, JVC LS300, RED WideGamut / RED DragonColor / DragonColor2 / RED Color2 / RED Color3 / RED Color4 Sony SGamut / SGamut3 / SGamut3.cine / Canon Cinema / DCI P3 / DCI P3+ / BT2020 Panasonic V Gamut Arri Alexa Wide Gamut Rec709 JVC LS300 Red DragonColor / DragonColor2 / RedColor2 / RedColor3 / RedColor4 / RedWideGamut|
|3D LUT Display||.Cube Format|
|3D LUT Down Stream||Loop out|
|Monitoring Modes||Native / HLG / PQ / 3D LUT|
|HDR output Conversion||Log / HDR to HLG / PQ / Dolby Vision|
|HDMI||1 x HDMI (2.0) 4k p60|
|HDMI RAW||Apples ProRes RAW up to 8k|
|SDI||2 x 12G SDI Backward compatible via optional AtomX SDI module|
|SDI RAW||Optional with AtomX SDI module + SDI RAW activation|
|Bit Depth||8/10-Bit Video / RAW up to 12Bit|
|Video Chroma Subsampling||420 and 422|
|HDCP copy protection||Not supported|
|HDMI||RAW - white balance, exposure index, shutter speed/angle, iris F-stop, ISO, gamma, gamut|
|SDI||File name from Arri & RED via Optional AtomX SDI Module|
|HDMI||1 x HDMI (2.0) 4k p60|
|SDI loop out||Optional Via AtomX SDI module|
|SDI Play out||Optional Via AtomX SDI module|
|Video Chroma Subsampling||4:2:2|
|Bit Depth||10-bit Video / 12-bit RAW|
|USB UVC||Optional Via Connect 4k|
|Video Signal Conversion|
|HDMI to SDI||Optional Via AtomX SDI module|
|SDI to HDMI||Optional Via AtomX SDI module|
|Audio Quality||24-bit 48kHz|
|HDMI||8ch 24-bit, input dependent|
|SDI||12ch 24-bit, input dependent|
|Analogue Audio in||3.5mm 2ch.|
|Analogue Audio Out||3.5mm 2ch.|
|Headphone out||3.5mm 2ch.|
|Timecode / Sync|
|Embedded||HDMI and SDI|
|Time of day||Yes, Time and Date|
|LTC||via 3.5mm audio Jack input (Requires post processing)|
|Wireless SYNC||Via Optional AtomX SYNC Module|
|Resolution and Frame Rates (Record, Monitor & Playback)|
|8k||RAW Only up to 30p via HDMI|
|6k||RAW Only up to 30p via HDMI and SDI (Camera dependent 5.9k HDMI and 5.7k SDI)|
|5k||RAW Only up to 30p via HDMI|
|4k DCI||23.98/24/25/29.9/30/50/59.94/60p - HFR 100/120 via RAW over HDMI & SDI on selected cameras|
|2K DCI 2046 x 1080||Optional via AtomX SDI module|
|Anamorphic||3.5k: RAW up to 60p (from supported cameras only)|
|FHD 1920 x 1080 Progressive||23.98/24/25/29.9/30/50/59.94/60/100/120p|
|FHD 1920 x 1080 PsF||converted to P and looped out PsF|
|FHD 1920 x 1080 Interlaced||23.98/24/25/29.9/30/50/59.94/60i|
|1280 x 720p||50/59.94/60p|
|Apple ProRes RAW||ProRes RAW, ProRes RAW HQ (Free activation via my.Atomos.com)|
|Apple ProRes||LT, 422, 422HQ|
|Avid DNxHD||DNxHD 220x,220,145,36 (Free activation via my.Atomos.com)|
|Avid DNxHR||LB, SQ, HQ, HQX (Free activation via my.Atomos.com)|
|H.265||LQ, MQ, HQ in 8/10Bit, 422 and 420 (Free activation via my.Atomos.com)|
|Playlist||Yes, Create custom play lists from full or sub clips|
|Loop||Yes, with user customisable in / out markers|
|Apple ProRes Raw||Yes, recorded clips|
|Apple ProRes||Yes, with Linear PCM audio|
|Avid DNx||Yes, with Linear PCM audio|
|H.265||Yes, recorded clips with Linear PCM audio|
|Pre-roll record||Yes (HD 8s, 4K 2s) - Not available in RAW|
|Multi Input / Switching|
|SDI A/B toggle||Via optional AtomX SDI module|
|Multiple HDMI input||Via optional AtomX CAST module|
|Master Caddy I||Not compatible|
|SSDmini||Native Size and Fit|
|CFast II||Supported cards via optional SSDmini CFAST II Adaptor|
|File Naming||Unit Name - Scene/Shot/Take|
|On screen tools|
|Waveform||Yes, 3 size / Position|
|RGB parade||Yes, 3 size / Position|
|Vector scope||Yes, 2 size / Position|
|1 x Zoom||Yes. 1:1 Pixel mapping for 4k|
|2 x Zoom||Yes|
|Focus peaking||Color selected / threshold setting / color / mono / edges only|
|False colour||Yes, with Scale|
|Isolate color channel||Blue Only|
|Cine Frame Guides||2.4:1, 2.35:1, 1.9:1, 1.85:1, 4:3|
|Social Frame guides||9:16, 1:1, 1.91:1, 4:5|
|Safe areas||Action and Graphic|
|Grid markers||9 grid|
|Anamorphic desqueeze||1.25x 1.33x , 1.5x ,1.8x ,2x|
|Display Flip||Vertical Only|
|Onboard Signal Processing|
|Pulldown Removal||24/25/30pSF > 24/25/30p (2:2 pulldown), 60i > 24p (3:2 pulldown)|
|4K UHD Downscale for HD||Loop out - 4K UHD to FHD|
|DCI Crop||Loop out - 17:9 to 16:9 Crop|
|HDMI||Auto HDMI Trigger, Supported Protocols - Canon, Sony, Atomos Open Standard|
|SDI||SDI trigger camera selectable|
|Serial 2.5mm Jack||LANC control and calibration via optional USB to serial cable|
|Bluetooth LE||Via optional AtomX SYNC module|
|Wireless RF||Via optional AtomX SYNC module|
|External Device Control|
|Serial 2.5mm Jack||Camera control for supported cameras via Optional USB to Serial Cable|
|Bluetooth LE||Via optional AtomX SYNC module to compatible devices|
|Wireless RF||Via optional AtomX SYNC module to compatible devices|
|XML||Cut tag EDL in FCPX XML|
|Apple ProRes RAW||Apple FCP, Adobe Premier, After Effects, Avid Media Composer, GrassValley Edius, Assimilate Scratch, Baselight Film Light.|
|Video Codecs||All Applications with support for Apple ProRes, H.265 and Avid DNX in .MOV wrapper|
|What’s in the box|
|Ninja V+||Ninja V +, EVA Carry case, 5" Protective Monitor sleeve, Battery eliminator, international DC power supply, 1x MasterCaddy II and QuickStart Guide|
|Ninja V+ Pro||Ninja V+ (with RAW over SDI and H.265 upgrade pre-activated), AtomX SDI Expansion Module, DC to D-Tap cable, Power Supply, 1x 5″ Sunhood, 1x Battery Eliminator, EVA Carry Case, 5″ Protective Monitor Sleeve, 1xMaster Caddy II and Quick Start Guide|
|Optional extras||Sunhood, DC to D-Tap, Power Kit, HDMI Cables, USB to Serial cable, AtomX SYNC, AtomX SDI, AtomX CAST modules, UltraSync ONE, UltraSync Blue|
|Standard||1 year. Extended to 3 years on product registration|
The AtomRemote app provides external controls for ATOMOS devices including the Shogun CONNECT, NEON 17, and NEON 24; as well as the NINJA V and NINJA V+ equipped with the ATOMOS CONNECT accessory or an AtomX SYNC module.
The external remote control not only brings freedom to create, but also means flexibility on the field. Shooting in specific situation is sometimes a challenge for creators; space related issues, reduced staff on set and creative needs where external control of the unit seems to be the only option to get the shot! All that creators need to do to start enjoying access to the main monitoring functions and recording setting from iPhone, iPad or computer is to update their Ninja V or Shogun CONNECT to the latest firmware AtomOS 10.84, install the AtomRemote APP in their iOS device. That’s it!
The app communicates wirelessly via Bluetooth LE to perform remote configuration and operation tasks. Input options let you select connection type, select gamma/EOTF, and adjust gamut settings. For monitoring, AtomRemote can control playback, select dynamic-range settings, apply custom 3-D LUTs, and use default color-space transformations. Output controls provide options for 4K-to-HD downconversion and HDR output. In addition to starting and stopping a recording, AtomRemote can activate a full suite of image-analysis tools, including exposure and focus assistance.
- AtomRemote enables configuration and operations via Bluetooth® LE to:
- define camera connections to switch between HDMI/SDI inputs
- select gamma/EOTF and make gamut settings to convert LOG to an HDR image
- remotely operate recording and playback functions
- activate on-screen tools such as focus peaking, 1:1 zoom, frame guides, waveforms
- select monitoring modes use i.e., use Native to display the incoming signal as is, or monitor in HDR by using the HLG and PQ modes
- apply custom 3D LUTs to preview creative looks on set, or baking a LUT into the recording for quick turnarounds
Being able to adjust these settings remotely is ideal for situations when it is difficult or unsafe to access your rig, such as when it is mounted out of reach as part of a “crash cam" setup or on a gimbal or stabilizer.
Visit the App Store for more details or to download AtomRemote today.
