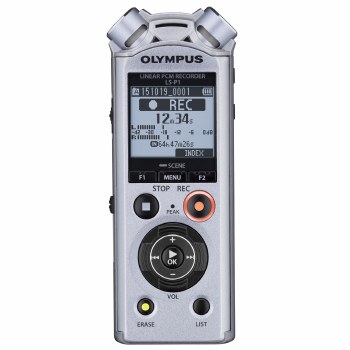

Olympus LS-P1 Sound Recorder

Get the most advanced microphones to date with the LS-P1 digital audio recorder: their 90° construction provides a great stereo feel. What’s more, the high quality of their build means you’ll enjoy clear sound with low noise. All of this and more is packed in a super-small body that gives you outstanding recordings – from music to meetings.
Accurate recording. Full power.
Enjoy the most accurate stereo sound possible without any signal deterioration thanks to the high-quality microphone amplifier. It uses an advanced amplifier circuit to suppress interference – for original stereo sound audio recording from a compact device. OLYMPUS engineers have also gone even further to develop a new codec, so you have even clearer sound quality with less noise during AD/DA music conversion.
Sleek style. Pleasurable use.
The powerful technology on the inside is encased in a sleek metal body on the outside – making the stylishly compact LS-P1 a PCM recorder that you’ll enjoy using with every press of a button, for every song or session. Because it’s so robust and cutting-edge, you’ll want to take this pocket-sized audio recorder with you wherever you go – especially also thanks to Direct USB capability for easy data storage and transfer.
Smooth sound. Better-than-CD quality.
The LS-P1 supports linear PCM recording at rates of up to 24 bits and sampling frequencies as high as 96kHz – far surpassing the 44.1kHz/16 bits of CD-quality audio. When you select this bit rate and sampling frequency, you can readily make a CD of your own recordings.
Storage Media | |
---|---|
Internal / Removable Media | Internal Removable |
External Memory (Slot) | microSD card / SDHC card (512 MB - 32 GB) |
Internal memory | 4GB |
USB functionality | |
Direct USB Connection | Yes |
USB Speed | USB 2.0 High Speed |
USB Classes | USB Storage class USB Composite device |
Display | |
Display Type | Full Dot Matrix Display (108 x 84 dots) |
Display Size | 27.5 x 23.9mm / 1.43 |
Display colour | White |
Display Backlit | LED (White) |
Device operation | |
Main Switch | Push |
HOLD switch | Yes |
Power switch | Yes |
Microphone System | |
Max. Sound Pressure | 120dB SPL |
Recording Modes | |
Recording format | PCM / MP3 |
PCM (WAV) format | 96kHz / 24bit 1h 30min 88.2kHz / 24bit 1h 45min 48kHz / 16bit 5h 44.1kHz / 16bit 5h 30min 44.1kHz (Mono) 11h |
MP3 format | 320 kbps 24h 30min 128 kbps 61h 64 kbps (Mono) 123h |
Playback Modes | |
Playback format | PCM (WAV) / MP3 |
Frequency response | |
PCM | 96kHz / 20 - 44000Hz 88.2kHz / 20 - 42000Hz 48kHz / 20 - 23000Hz 44.1kHz / 20 - 21000Hz 44.1kHz (mono) / 20 - 21000Hz |
MP3 | 320kbps / 20 - 20000Hz 128kbps / 20 - 17000Hz 64kbps (mono) / 20 - 13000Hz |
Internal microphones | 60 - 20.000Hz |
Record function | |
Index | Up to 16 per file |
Auto recording | VCVA (Variable Control Voice Actuator) Voice Sync |
Recording Scenes | Meeting Conference Lecture Dictation Speech-Recognition Music |
Advanced recording | Rec Monitor Manual Rec level control Low Cut-Filter Zoom Mic. Setting |
Playback function | |
Playback speed | Adjustable (50 - 350) |
File operation | Forward / Reverse Skip Fast forward and rewind |
File selection | File Playback Folder Playback All Files Playback |
Repeat functions | Repeat playback A-B repeat playback |
Automatic playback | Random playback |
Sound enhancement | Voice Balancer Equalizer Noise Cancel |
Advanced Play | Voice Playback |
Data organisation | |
Erase | Erase single files Erase all files Music folders Partial (PCM only) |
No. of folders | 5 |
Folder Music | max. 300 |
Files per folder | 200 |
File move | Yes |
File Copy (Folder to Folder) | Yes |
File Replace | Yes |
File divide | Yes |
Calendar Search | Yes |
Interfaces Input | |
Microphone jack | 3.5 mm mini-jack, impedance 2 kO |
Microphone sensitivity / gain | High / Middle / Low/ Intelligent Auto |
PC interface | USB Storage class |
Interfaces Output | |
Max. working output | 150mW (8 speaker) |
Maximum headphone output | 3 mW 3 mW |
Speaker Diameter | Built-in 18 mm round dynamic speaker |
Earphone jack | 3.5 mm jack, impedance 8 or more |
Power Supply | |
Power Supply | Battery: 1 x AAA |
Alkaline battery life | Recording: 39h Playback: 31h via earphones |
Internal Charging | AC / USB Note: Internal charging operable only with Olympus rechargable batteries. AC-adapter is an optional item. |
Dimensions | |
HxWxD | 108.9 x 39.6 x 14.4mm |
Weight | 75g (incl. battery) |
Exterior | |
Housing material | Metal |
Languages | |
Menu languages | EN, FR, DE, IT, ES, RU, PL, CS, SV, NL, DA, CN |
Operating Systems & Requirements | |
Windows | Operating system: Windows Vista/7/8/8.1/10 |
Macintosh | Operating system: Mac OS X 10.5 - 10.10 |
