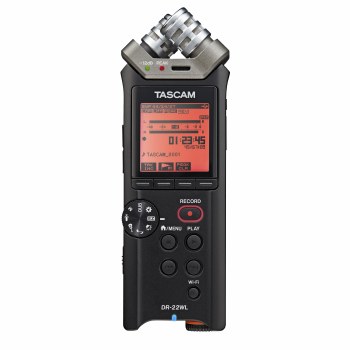

Tascam DR-22WL Portable Recorder

Cardioid condenser capsules are mounted in acoustically-tuned housings. As with all TASCAM recorders, the mic capsules were selected after extensive listening tests. The true X-Y pattern captures the stereo field in phase-alignment, for perfect imaging during playback.

The design of the DR-22WL allows it to record loud sound sources, including rehearsals and concerts, without distortion. Up to 120 dB SPL means that a volume level 20 times higher than the 105dB SPL maximum sound pressure of a movie theater can be captured without clipping. The high level capability also makes the DR-22WL ideal for sound effects gathering.

A programmable gain amplifier (PGA) is used to adjust the level of the audio inputs. In many devices, the audio codec level is adjusted to control levels. In the DR-22WL, the mic gain circuit is independent from the A/D converter for low noise performance as well as programmable gain (manual, automatic, or controlled over Wi-Fi.)
A CIRRUS LOGIC CS42L52 is used in the DR-22WL, a premium-quality audio codec. The A/D - D/A chip features both great audio performance and low power use for longer battery life. The built-in mics and the external inputs both pass through this low-noise audio input circuit.

Similar to the mode dial on a camera, the scene dial makes it easy to preset the recorder to fit your subject. A full manual mode is also available for uses who want to set the recorder up themselves.

The 128×128 LCD, larger than previous TASCAM recorders, shows meters, settings and other information. Icons at the bottom visually display how the four function keys can be used. This interface reduces the need to dig through menus to find commonly-used recording functions.

The most crucial setting on any recorder is the input gain – finding the balance between too low (noise) and too high (clipping). The DR-22WL has a large input level knob right under your fingertips. You don't need to press and hold a button or search through a menu to change the input level.

The DR-22WL connects with smartphones and other Wi-Fi devices directly. There is no need for a Wi-Fi router network or other external equipment. Wi-Fi connections can be established simply by inputting the information shown in the app. Connection status can be checked with an LED on the unit as well as the app screen. Even if the Wi-Fi connection is interrupted, recording will not stop.

With DR Control, audio from the DR-44WL can be broadcast via Wi-Fi to your smartphone for streaming playback. Even when the DR-44WL is in a place that is out of reach, this capability allows you to check audio from the headphone jack. Ensure that you're getting the sound you want without leaving your seat.
