Samyang 14mm T3.1 VDSLRII Cine Lens for Canon EF


Samyang Optics 14mm T3.1 VDSLR II is a wide angle manual focus cine lens designed for full frame sensor sizes.

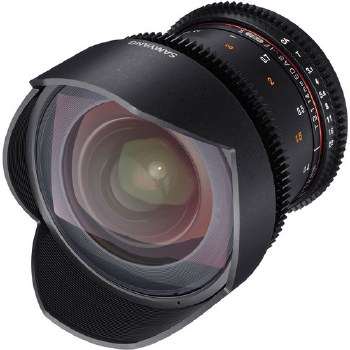

The Samyang 14mm T3.1 Cine Lens for Canon EF-Mount is optimized for film and video applications. The focus and iris rings feature industry-standard gearing, which provides an interface for use with a follow focus. To aid focus pullers, aperture and focus scales are marked on the side of the lens. This 14mm lens produces a 115.7°, ultra-wide angle-of-view when used with a full-frame or 35mm camera. Hybrid aspherical lenses render sharply defined images with a minimum of distortion and chromatic aberrations, and the minimum focus distance is 11.02" from the lens.
Some cameras will require that Shutter Lock be disengaged when using this lens.
- 14mm lens with approximately 115.7° angle-of-view on full-frame cameras
- Industry-standard gearing for focus and aperture rings
- "Declicked" aperture ring for smooth iris pulls
- 14 elements in 10 groups with 3 high refractive index elements, 2 ED element, an aspherical hybrid element and a aspherical glass element
- Ultra Multi Coated lenses minimize flare and ghosting
- A minimum focusing distance of 11.02"
- A built-in petal-type lens hood
Focal Length | 14mm |
Lens Mount | Canon EF |
Format | Full Frame |
Maximum T-Stop | T3.1 |
Minimum T-Stop | T22 |
Diagonal Angle of View | Super35: 93.9° Full Frame: 115.7° |
Minimum Focus Distance from Image Plane | 11.02" / 28 cm |
Optical Design | 14 Elements in 10 Groups |
Iris Blades | 6 |
Dimensions (W x H) | 3.43 x 3.43" / 87.1 x 87.1 mm |
Length | 3.78" / 9.61 cm |
Weight | 21.9 oz / 620.0 g |
