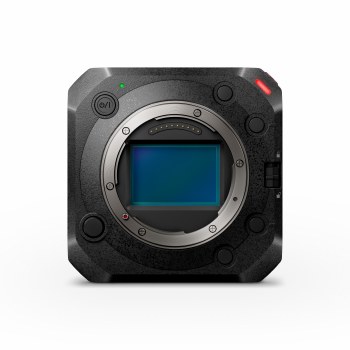

Panasonic Lumix BS1H 4K Cinema Box Camera

Name: Panasonic Lumix BS1H 4K Cinema Box Camera
Brand: Panasonic
SKU: 5025232923427
Price: 3299.00 EUR
Availability: OutOfStock

€3,299.00

EAN / UPC : 5025232923427 | Brand : Panasonic | SKU : DC-BS1HE

Awaiting More Stock Notify Me Request Delivery Info

Quantity add to basket

add to list add to registry

An Ultra-Compact Full-Frame Box-Style Camera for Live & Cinema: 24.2MP full-frame sensor with Dual Native ISO technology, 6K video, multiple recording modes and heat management for unlimited video recording
Exceptional Video Performance: 14+ stops of V-Log and V-Gamut, 12-bit RAW video data output over HDMI for external monitor/recorder, simultaneous internal/external recording, Anamorphic mode and VFR/HFR
Features that Enable Seamless Production: Simultaneous SDI/HDMI output, Genlock IN and Timecode IN/OUT and LINEAR/NONLINEAR focus ring control
Remote Control: 4K 60p IP streaming in H.265 (RTP/RTSP protocol) and remote control of multiple cameras is available with LUMIX Tether for Multicam PC software via Ethernet (PoE+).
Excellent Connectivity and Secure Operation: Double SD card slots, F3.5 Audio (in/out) jack, USB 3.1 Type-C, a 3G-SDI (BNC), Wi-Fi® , Bluetooth®, tally lamps(front/rear) operation lock switch and XLR microphone compatibility with DMW-XLR1 (sold separat

Details
Specifications

Box-Style Live & Cinema Full-frame Camera

A full-frame sensor and 6K 24p video recording performance condensed in a surprisingly compact box-style for everything from live streaming to multi-camera control and shooting using a gimbal or drone. A device that will innovate the video production workflow.

24.2MP full-frame sensor with Dual Native ISO technology

The 24.2-megapixel full-frame CMOS sensor delivers high sensitivity and top image quality in both still photos and videos. Dual Native ISO technology further enhances video performance.

6K video recording performance and multiple recording modes

Equipped with 6K 24p 4:2:0 10-bit (3:2) and 5.9K 30p/25p/24p 4:2:0 10-bit in addition to C4K/4K 60p/50p* 4:2:0 10-bit, C4K/4K 30p/25p/24p 4:2:2 10-bit and anamorphic 4K recording. Meets the diverse video production needs of professionals with a wide array of recording modes.

Heat management = unlimited recording

The LUMIX BS1H realizes unlimited video recording in all modes. The rise in the camera’s temperature can be suppressed with the cooling fan and can be used for an unlimited time within the guaranteed operating temperature range.

Flexible expandability with wired LAN connection

• Remote control with LUMIX Tether for Multicam enabled by Ethernet cable.
• Ethernet / PoE+ compatible camera
• IP streaming with PC (RTP/RTSP protocol)
• Simultaneous SDI/HDMI output
• Genlock IN and Timecode IN/OUT

Simultaneous internal / external recording supported

Simultaneous 6K 24p 4:2:0 10-bit (3:2) / 5.9K 30p/25p/24p 4:2:0 10-bit (16:9) internal recording and 4K 4:2:2 10-bit HDMI Live Output external recording are supported.

RAW video data output

The LUMIX BS1H enables the output of maximum 29.97p 5.9K (5888x3312, 16:9) / 59.94p 4K (4128x2176, 17:9) and Anamorphic 3.5K (3536x2656, 4:3) 12-bit RAW video data over HDMI to save it as Apple ProRes RAW on the Atomos Ninja V 4K HDR monitor-recorder.* The Blackmagic RAW can also be recorded on Video Assist 12G HDR.

TYPE
Type	Digital Single Lens Mirrorless camera
Lens mount	L-Mount
Recording media	SD Memory Card / SDHC Memory Card / SDXC Memory Card Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards.
IMAGE SENSOR
Type	35mm full-frame (35.6mm x 23.8mm) CMOS sensor
Camera effective pixels / Total pixels	24.20 megapixels / 25.28 megapixels
AR (Anti Reflection) coating	Yes
Aspect ratio / Color filter	3:2 / Primary color filter
Dust reduction system	-
LATITUDE
Latitude	14+ stops (V-Log)
STILL IMAGE
Recording file format	JPEG (DCF, Exif 2.31) Tethered photo shooting with LUMIX Tether for Multicam software
Aspect ratio	3:2
File size (Pixels)	When using full-frame lenses: 6000x4000(L) / 4272x2848(M) / 3024x2016(S) When using APS-C/Super 35mm lenses: 3888x2592(L) / 2784x1856(M) / 1968x1312(S)
Image quality	Fine / Standard
Color space	sRGB
Burst shooting	-
MOTION PICTURE
Recording file format	MOV: H.264/MPEG-4 AVC, H.265/HEVC (Audio format: LPCM (2ch 48kHz/16-bit, 48kHz/24-bit, 96kHz/24-bit)) When attaching DMW-XLR1 (sold separately). MP4: H.264/MPEG-4 AVC, H.265/HEVC (Audio format: AAC (2ch))
System frequency	59.94Hz / 50.00Hz / 24.00Hz
MOV (2) (3)
59.94Hz FULL	[6K] 5952x3968 (3:2), 23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (1) [5.4K] 5376x3584 (3:2), 29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (1) [5.9K] 5888x3312 (16:9), 29.97p, 200Mbps (4:2:0 10-bit LongGOP)(H.265/HEVC, LPCM, High-Res Audio) (1) [5.9K] 5888x3312 (16:9), 23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (1) [C4K] 4096x2160, 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (1) [C4K] 4096x2160, 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (1) [C4K] 4096x2160, 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) [C4K] 4096x2160, 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (1) [C4K] 4096x2160, 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (1) [C4K] 4096x2160, 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) [4K] 3840x2160, 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (1) [4K] 3840x2160, 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (1) [4K] 3840x2160, 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) [4K] 3840x2160, 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (1) [4K] 3840x2160, 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (1) [4K] 3840x2160, 23.98p,100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) [FHD] 1920x1080, 119.88p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (1) [FHD] 1920x1080, 59.94p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (1) [FHD] 1920x1080, 59.94p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (1) [FHD] 1920x1080, 59.94p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) [FHD] 1920x1080, 59.94i, 100Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (1) [FHD] 1920x1080, 59.94i, 50Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (1) [FHD] 1920x1080, 47.95p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (1) [FHD] 1920x1080, 29.97p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (1) [FHD] 1920x1080, 29.97p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (1) [FHD] 1920x1080, 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) [FHD] 1920x1080, 23.98p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (1) [FHD] 1920x1080, 23.98p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (1) [FHD] 1920x1080, 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
59.94Hz S35mm / PIXEL/PIXEL	[C4K] 4096x2160, 59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (1) [C4K] 4096x2160, 59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) [C4K] 4096x2160, 47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (1) [C4K] 4096x2160, 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (1) [C4K] 4096x2160, 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (1) [C4K] 4096x2160, 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) [C4K] 4096x2160, 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (1) [C4K] 4096x2160, 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (1) [C4K] 4096x2160, 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) [4K] 3840x2160, 59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (1) [4K] 3840x2160, 59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) [4K] 3840x2160, 47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (1) [4K] 3840x2160, 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (1) [4K] 3840x2160, 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (1) [4K] 3840x2160, 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) [4K] 3840x2160, 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (1) [4K] 3840x2160, 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (1) [4K] 3840x2160, 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) [Anamorphic 4K] 3328x2496 (4:3), 47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (1) [Anamorphic 4K] 3328x2496 (4:3), 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (1) [Anamorphic 4K] 3328x2496 (4:3), 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (1) [Anamorphic 4K] 3328x2496 (4:3), 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) [Anamorphic 4K] 3328x2496 (4:3), 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (1) [Anamorphic 4K] 3328x2496 (4:3), 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (1) [Anamorphic 4K] 3328x2496 (4:3), 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) [FHD] 1920x1080, 119.88p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (1) When S35mm is selected. HLG is selectable. [FHD] 1920x1080, 59.94p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (1) [FHD] 1920x1080, 59.94p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (1) [FHD] 1920x1080, 59.94p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) [FHD] 1920x1080, 59.94i, 100Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (1) [FHD] 1920x1080, 59.94i, 50Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (1) [FHD] 1920x1080, 47.95p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (1) [FHD] 1920x1080, 29.97p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (1) [FHD] 1920x1080, 29.97p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (1) [FHD] 1920x1080, 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) [FHD] 1920x1080, 23.98p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (1) [FHD] 1920x1080, 23.98p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (1) [FHD] 1920x1080, 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
50.00Hz FULL	[5.4K] 5376x3584 (3:2), 25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (1) [5.9K] 5888x3312 (16:9), 25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (1) [C4K] 4096x2160, 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (1) [C4K] 4096x2160, 25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (1) [C4K] 4096x2160, 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) [4K] 3840x2160, 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (1) [4K] 3840x2160, 25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (1) [4K] 3840x2160, 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) [FHD] 1920x1080, 100.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (1) [FHD] 1920x1080, 50.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (1) [FHD] 1920x1080, 50.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (1) [FHD] 1920x1080, 50.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) [FHD] 1920x1080, 50.00i, 100Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (1) [FHD] 1920x1080, 50.00i, 50Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (1) [FHD] 1920x1080, 25.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (1) [FHD] 1920x1080, 25.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (1) [FHD] 1920x1080, 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
50.00Hz S35mm / PIXEL/PIXEL	[C4K] 4096x2160, 50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (1) [C4K] 4096x2160, 50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) [C4K] 4096x2160, 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (1) [C4K] 4096x2160, 25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (1) [C4K] 4096x2160, 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) [4K] 3840x2160, 50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (1) [4K] 3840x2160, 50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) [4K] 3840x2160, 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (1) [4K] 3840x2160, 25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (1) [4K] 3840x2160, 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) [Anamorphic 4K] 3328x2496 (4:3), 50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (1) [Anamorphic 4K] 3328x2496 (4:3), 50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) [Anamorphic 4K] 3328x2496 (4:3), 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (1) [Anamorphic 4K] 3328x2496 (4:3), 25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (1) [Anamorphic 4K] 3328x2496 (4:3), 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) [FHD] 1920x1080, 100.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (1) When S35mm is selected. HLG is selectable. [FHD] 1920x1080, 50.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (1) [FHD] 1920x1080, 50.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (1) [FHD] 1920x1080, 50.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) [FHD] 1920x1080, 50.00i, 100Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (1) [FHD] 1920x1080, 50.00i, 50Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (1) [FHD] 1920x1080, 25.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (1) [FHD] 1920x1080, 25.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (1) [FHD] 1920x1080, 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
24.00Hz FULL	[6K] 5952x3968 (3:2), 24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (1) [5.9K] 5888x3312 (16:9), 24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (1) [C4K] 4096x2160, 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (1) [C4K] 4096x2160, 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (1) [C4K] 4096x2160, 24.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) [4K] 3840x2160, 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (1) [4K] 3840x2160, 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (1) [4K] 3840x2160, 24.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) [FHD] 1920x1080, 48.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (1) [FHD] 1920x1080, 24.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (1) [FHD] 1920x1080, 24.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (1) [FHD] 1920x1080, 24.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
24.00Hz S35mm / PIXEL/PIXEL	[C4K] 4096x2160, 48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (1) [C4K] 4096x2160, 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (1) [C4K] 4096x2160, 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (1) [C4K] 4096x2160, 24.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) [4K] 3840x2160, 48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (1) [4K] 3840x2160, 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (1) [4K] 3840x2160, 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (1) [4K] 3840x2160, 24.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) [Anamorphic 4K] 3328x2496 (4:3), 48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (1) [Anamorphic 4K] 3328x2496 (4:3), 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (1) [Anamorphic 4K] 3328x2496 (4:3), 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (1) [Anamorphic 4K] 3328x2496 (4:3), 24.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) [FHD] 1920x1080, 48.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (1) [FHD] 1920x1080, 24.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (1) [FHD] 1920x1080, 24.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (1) [FHD] 1920x1080, 24.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
MP4 (3)
59.94Hz FULL	[4K] 3840x2160, 29.97p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) (1) [4K] 3840x2160, 23.98p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) (1) [4K] 3840x2160, 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) [4K] 3840x2160, 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) [FHD] 1920x1080, 59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) [FHD] 1920x1080, 29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) [FHD] 1920x1080, 23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
59.94Hz S35mm / PIXEL/PIXEL	[4K] 3840x2160, 59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) (1) [4K] 3840x2160, 29.97p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) (1) [4K] 3840x2160, 23.98p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) (1) [4K] 3840x2160, 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) [4K] 3840x2160, 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) [FHD] 1920x1080, 59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) [FHD] 1920x1080, 29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) [FHD] 1920x1080, 23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
50.00Hz FULL	[4K] 3840x2160, 25.00p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) (1) [4K] 3840x2160, 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) [FHD] 1920x1080, 50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) [FHD] 1920x1080, 25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
50.00Hz S35mm / PIXEL/PIXEL	[4K] 3840x2160, 50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) (1) [4K] 3840x2160, 25.00p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) (1) [4K] 3840x2160, 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) [FHD] 1920x1080, 50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) [FHD] 1920x1080, 25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
24.00Hz	-
Variable frame rate, MOV (3)
59.94Hz FULL	[FHD] 1920x1080, 59.94p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) [FHD] 1920x1080, 29.97p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) [FHD] 1920x1080, 23.98p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) Angle of view narrows if you select a frame rate with a number of frames 151 or more.
59.94Hz S35mm	[C4K] 4096x2160, 29.97p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) [C4K] 4096x2160, 23.98p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) [4K] 3840x2160, 29.97p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) [4K] 3840x2160, 23.98p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) [Anamorphic 4K] 3328x2496 (4:3), 29.97p (Maximum output of sensor is 50fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) [Anamorphic 4K] 3328x2496 (4:3), 23.98p (Maximum output of sensor is 48fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) [FHD] 1920x1080, 59.94p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) [FHD] 1920x1080, 29.97p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) [FHD] 1920x1080, 23.98p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) Angle of view narrows if you select a frame rate with a number of frames 151 or more.
59.94Hz PIXEL/PIXEL	[C4K] 4096x2160, 29.97p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) [C4K] 4096x2160, 23.98p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) [4K] 3840x2160, 29.97p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) [4K] 3840x2160, 23.98p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) [Anamorphic 4K] 3328x2496 (4:3), 29.97p (Maximum output of sensor is 50fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) [Anamorphic 4K] 3328x2496 (4:3), 23.98p (Maximum output of sensor is 48fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) [FHD] 1920x1080, 29.97p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) [FHD] 1920x1080, 23.98p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
50.00Hz FULL	[FHD] 1920x1080, 50.00p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) [FHD] 1920x1080, 25.00p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) Angle of view narrows if you select a frame rate with a number of frames 151 or more.
50.00Hz S35mm	[C4K] 4096x2160, 25.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) [4K] 3840x2160, 25.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) [Anamorphic 4K] 3328x2496 (4:3), 25.00p (Maximum output of sensor is 50fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) [FHD] 1920x1080, 50.00p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) [FHD] 1920x1080, 25.00p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) Angle of view narrows if you select a frame rate with a number of frames 151 or more.
50.00Hz PIXEL/PIXEL	[C4K] 4096x2160, 25.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) [4K] 3840x2160, 25.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) [Anamorphic 4K] 3328x2496 (4:3), 25.00p (Maximum output of sensor is 50fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) [FHD] 1920x1080, 25.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
24.00Hz FULL	[FHD] 1920x1080, 24.00p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) Angle of view narrows if you select a frame rate with a number of frames 151 or more.
24.00Hz S35mm	[C4K] 4096x2160, 24.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) [4K] 3840x2160, 24.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) [Anamorphic 4K] 3328x2496 (4:3), 24.00p (Maximum output of sensor is 48fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) [FHD] 1920x1080, 24.00p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) Angle of view narrows if you select a frame rate with a number of frames 151 or more.
24.00Hz PIXEL/PIXEL	[C4K] 4096x2160, 24.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) [4K] 3840x2160, 24.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) [Anamorphic 4K] 3328x2496 (4:3), 24.00p (Maximum output of sensor is 48fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) [FHD] 1920x1080, 24.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
HDMI RAW DATA OUTPUT
Compatible external devices	ATOMOS Ninja V 4K HDR Monitor-Recorder Selectable recording mode depends on the firmware version of Atomos Ninja V. Please refer to the Atomos website for the information on the corresponding firmware version of Atomos Ninja V. Software that supports Apple ProRes RAW is required to edit RAW video recorded with NINJA V. Apply the LUT (Look up table) available on the following customer supports site to make the same color grading as V-Log/V-Gamut https://panasonic.jp/support/global/cs/dsc/download/lut/s1h_raw_lut/ All functions may not be available depending on the situation. Blackmagic Video Assist 5" 12G HDR, Blackmagic Video Assist 7" 12G HDR Selectable recording mode depends on the firmware version of Blackmagic Video Assist 12G HDR. Please refer to the Blackmagic Design website for the information on the corresponding firmware version of the Blackmagic Video Assist 12G HDR. DaVinci Resolve or DaVinci Resolve Studio is required to play back and edit Blackmagic RAW data. DaVinci Resolve Studio is required to deliver projects using Blackmagic RAW data in resolutions over 3840x2160. All functions may not be available depending on the situation.
Rec quality
59.94Hz FULL	[5.9K] 5888x3312 (16:9), 29.97p, 12-bit (LPCM) [5.9K] 5888x3312 (16:9), 23.98p, 12-bit (LPCM)
59.94Hz S35mm	[4K] 4128x2176 (17:9), 59.94p, 12-bit (LPCM) [4K] 4128x2176 (17:9), 29.97p, 12-bit (LPCM) [4K] 4128x2176 (17:9), 23.98p, 12-bit (LPCM) [Anamorphic 3.5K] 3536x2656 (4:3), 29.97p, 12-bit (LPCM) [Anamorphic 3.5K] 3536x2656 (4:3), 23.98p, 12-bit (LPCM)
50.00Hz FULL	[5.9K] 5888x3312 (16:9), 25.00p, 12-bit (LPCM)
50.00Hz S35mm	[4K] 4128x2176 (17:9), 50.00p, 12-bit (LPCM) [4K] 4128x2176 (17:9), 25.00p, 12-bit (LPCM) [Anamorphic 3.5K] 3536x2656 (4:3), 50.00p, 12-bit (LPCM) [Anamorphic 3.5K] 3536x2656 (4:3), 25.00p, 12-bit (LPCM)
Audio format	LPCM (2ch 48kHz/16-bit, 48kHz/24-bit, 96kHz/24-bit) High-res audio is selectable only when using the DMW-XLR1 (sold separately).
IP STREAMING
Protocol	RTP / RTSP
Streaming quality
59.94Hz	[4K] 3840x2160, 59.94p, 50Mbps / 25Mbps (H.265) [4K] 3840x2160, 59.94p, 50Mbps / 25Mbps (H.264) [4K] 3840x2160, 29.97p, 25Mbps / 12.5Mbps (H.265) [4K] 3840x2160, 29.97p, 25Mbps / 12.5Mbps (H.264) [FHD] 1920x1080, 59.94p, 20Mbps / 16Mbps (H.265) [FHD] 1920x1080, 59.94p, 16Mbps / 8Mbps (H.264) [FHD] 1920x1080, 29.97p, 12Mbps / 6Mbps (H.265) [FHD] 1920x1080, 29.97p, 6Mbps / 3Mbps (H.264) [HD] 1280x720, 59.94p, 6Mbps (H.264) [HD] 1280x720, 29.97p, 4Mbps (H.264)
50.00Hz	[4K] 3840x2160, 50.00p, 50Mbps / 25Mbps (H.265) [4K] 3840x2160, 50.00p, 50Mbps / 25Mbps (H.264) [4K] 3840x2160, 25.00p, 25Mbps / 12.5Mbps (H.265) [4K] 3840x2160, 25.00p, 25Mbps / 12.5Mbps (H.264) [FHD] 1920x1080, 50.00p, 20Mbps / 16Mbps (H.265) [FHD] 1920x1080, 50.00p, 16Mbps / 8Mbps (H.264) [FHD] 1920x1080, 25.00p, 12Mbps / 6Mbps (H.265) [FHD] 1920x1080, 25.00p, 6Mbps / 3Mbps (H.264) [HD] 1280x720, 50.00p, 6Mbps (H.264) [HD] 1280x720, 25.00p, 4Mbps (H.264)
RTSP port	Change (Up to 65535) / Default (554)
MONITOR
Viewfinder	-
Rear monitor	-
Status LCD	-
FOCUS
Type	Contrast AF system
DFD technology	Yes
Focus mode	AF / MF
AF detective range	EV -6 - 20 (F1.4, ISO100 equivalent, AF)
AF mode	Motion picture: Auto Detection (Face, Eye, Body, Animal) / Tracking / 225-Area / Zone (Oval) / 1-Area Still image: Auto Detection (Face, Eye, Body, Animal) / 225-Area /1-Area Tethered photo shooting with LUMIX Tether for Multicam software
AF custom setting (Video)	AF Speed, AF Sensitivity
AF lock	Set the Fn button in custom menu to AF lock
Focus ring control	Nonlinear / Linear (90/ 120/ 150/ 180/ 210/ 240/ 270/ 300/ 330/ 360/ 720/ 1080/ Maximum) When a compatible lens is attached.
Others	AF-ON, Continuous AF, AF+MF, MF Assist, MF Guide, 1-Area AF Moving Speed, Focus Ring Lock, Focus Peaking, Lens Focus Resume
EXPOSURE CONTROL
Light metering system	1,728-zone multi-pattern sensing system
Light metering mode	Multiple / Center Weighted / Spot / Highlight Weighted
Metering range	EV0-18 (F2.0 lens, ISO100 equivalent)
Exposure mode	Program AE / Aperture Priority AE / Shutter Priority AE / Manual Exposure
Exposure compensation	Motion picture: 1/3 EV step 3EV Still image: 1/3 EV step 5EV Tethered photo shooting with LUMIX Tether for Multicam software
ISO sensitivity (Standard output sensitivity)	Auto / 50 / 100 / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 / 25600 / 51200 / 102400 / 204800 (Changeable to 1/3 EV step) Extended ISO
Dual Native ISO	[Normal] Native ISO: 100, 640 Auto: Auto / 50 / 100-51200 / 102400 / 204800 Extended ISO Low: Auto / 50 / 100-800 Extended ISO High: Auto / 320 / 640-51200 / 102400 / 204800 Extended ISO [V-Log] Native ISO: 640, 4000 Auto: Auto / 320 / 640-51200 Extended ISO Low: Auto / 320 / 640-5000 Extended ISO High: Auto / 2000 / 4000-51200 Extended ISO [HLG] Native ISO: 400, 2500 Auto: Auto / 400-51200 / 102400 / 204800 Extended ISO Low: Auto / 400-3200 High: Auto / 2500-51200 / 102400 / 204800 Extended ISO [Cinelike D2 / Cinelike V2] Native ISO: 200, 1250 Auto: Auto / 100 / 200-51200 / 102400 / 204800 Extended ISO Low: Auto /100 / 200-1600 Extended ISO High: Auto / 640 / 1250-51200 / 102400 / 204800 Extended ISO
AE lock	Set the Fn button in custom menu to AE lock
IMAGE STABILIZATION SYSTEM
Body I.S.	-
Boost I.S. (Video)	Yes When a compatible lens equipped with O.I.S. is attached.
WHITE BALANCE
White balance	AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / White Set 1, 2, 3, 4 / Color temperature setting 1, 2, 3, 4
White balance adjustment	Blue/Amber bias, Magenta/Green bias
Color temperature setting	2500-10000K in 100K
SHUTTER
Type	-
Shutter speed	Motion picture: 1/16,000 - 1/2 Still image: 1/8,000 - 1 Tethered photo shooting with LUMIX Tether for Multicam software
PHOTO STYLE FILTER
Photo style	Standard / Vivid / Natural / Flat / Landscape / Portrait / Monochrome / L. Monochrome / L. Monochrome D / Cinelike D2 / Cinelike V2 / Like709 / V-Log / Like2100 (HLG) / My Photo Style 1-10 Picture adjustment: Contrast / Highlight / Shadow / Saturation / Color Tone / Hue / Filter Effect / Sharpness / Noise Reduction / Dual native ISO / ISO / WB Adjustable settings vary depending on the Photo Style mode.
Filter	Expressive / Retro / Old Days / High Key / Low Key / Sepia / Monochrome / Dynamic Monochrome / Impressive Art / High Dynamic / Cross Process / Toy Effect / Toy Pop / Bleach Bypass / Miniature Effect / Fantasy / One Point Color
OTHER FUNCTIONS
Vertical position information	ON / OFF
SS/Gain operation	Shutter Duration/ISO / Angle/ISO / Shutter Duration/dB
Luminance level	8-bit: 0-255 / 16-235 / 16-255 10-bit: 0-1023 / 64-940 / 64-1023
Synchro scan	Yes
Master pedestal level	31 steps
Knee control	Yes (in Like709 mode)
Level Gauge	Yes
V-Log view assist	Rec / Playback: HDMI / SDI
HLG view assist	Rec / Playback: HDMI (AUTO / MODE1 / MODE2 / OFF) / SDI (MODE1 / MODE2 / OFF)
Anamorphic desqueeze display	2.0x / 1.8x / 1.5x / 1.33x / 1.30x / OFF Rec: SDI Playback: HDMI / SDI
Color bars / 1kHz test tone	Yes (SMPTE / EBU / ARIB) / Yes
Other functions	Red REC Frame Indicator, Streaming Blue Frame Indicator
Function button
REC	Exposure Mode / Aperture Value / Shutter Speed / Exposure Comp. / Dual Native ISO Setting / Sensitivity / White Balance / Photo Style / Metering Mode / i.Dynamic Range / Filter Effect / One Push AE / Synchro Scan / Focus Mode / AF Mode / AF Custom Setting (Video) / Focus Peaking / Focus Peaking Sensitivity / 1-Area AF Moving Speed / Focus Ring Lock / AE LOCK / AF LOCK / AF/AE LOCK / AF-ON / AF-ON: Near Shift / AF-ON: Far Shift / Focus Area Set / Rec File Format / Rec Quality / Rec Quality (My List) / Variable Frame Rate / Time Code Display / HDMI RAW Data Output / Sound Rec Level Disp. / Mute Sound Input / Sound Rec Level Adj. / Sound Rec Level Limiter / XLR Mic Adaptor Setting / Special Mic. Directivity Adjust / Image Stabilizer / E-Stabilization (Video) / Boost I.S. (Video) / Image Area of Video / Focus Transition / Live Cropping / Q.MENU / Rec/Playback Switch / Video Record / Display Information / Level Gauge / Histogram / Luminance Spot Meter / Frame Marker / Zebra Pattern / LUT View Assist (HDMI) / LUT View Assist (SDI) / LUT Select / HLG View Assist (HDMI) / HLG View Assist (SDI) / Anamorphic Desqueeze Display / Color Bars / Focus Ring Control / Destination Card Slot / LAN/Wi-Fi / Info Display (HDMI/SDI) / Fan Mode / No Setting / Off (Disable Press and Hold) / Restore to Default
PLAY	Anamorphic Desqueeze Display / Delete Single / Protect / Rating 1, 2, 3, 4, 5 / Copy / Rec/Playback Switch / Video Record / Display Information / Card Slot Change / LAN/Wi-Fi / Info Display (HDMI/SDI) / Fan Mode / LUT View Assist (HDMI) / LUT View Assist (SDI) / HLG View Assist (HDMI) / HLG View Assist (SDI) / No Setting / Off (Disable Press and Hold) / Restore to Default
Operation lock	Yes with Operation Lock Switch
INTERFACE
USB	SuperSpeed USB 3.1 Gen1 Type-C
DC IN	DC 12V (11.4-12.6V), EIAJ Type4
HDMI (4)	HDMI TypeA Audio: Stereo Monitor-through 4:2:2 10bit (When [Rec Quality] is set to [4:2:2 10bit] or [4:2:0 10bit].) 4:2:2 8bit (When [Rec Quality] is set to [4:2:0 8bit].) Down Convert: Auto / 4K/30p/25p / 1080p / 1080i / OFF Playback 59.94Hz: Auto / C4K/59.94p / C4K/29.97p / C4K/23.98p / 4K/59.94p / 4K/29.97p / 4K/23.98p / 1080/59.94p / 1080/29.97p / 1080/23.98p / 1080/59.94i / 720/59.94p / 480/59.94p 50.00Hz: Auto / C4K/50.00p / C4K/25.00p / 4K/50.00p / 4K/25.00p / 1080/50.00p / 1080/25.00p / 1080/50.00i / 720/50.00p / 576/50.00p 24.00Hz: Auto / C4K/24.00p / 4K/24.00p / 1080/24.00p
SDI	BNC Terminal, 0.8V [p-p], 75O, 3G-SDI Level-A / HD-SDI Audio: Stereo, SDI Sound Output Gain Adj.: 0dB / -6dB / -8dB Monitor-through 4:2:2 10bit The bit accuracy is 8 bits when the 8-bit recording mode is selected. Playback 59.94Hz: 1080/59.94p LEVEL-A / 1080/29.97p / 1080/23.98p / 1080/59.94i / 1080/29.97PsF / 1080/23.98PsF / 720/59.94p 50.00Hz: 1080/50.00p LEVEL-A / 1080/25.00p / 1080/50.00i / 1080/25.00PsF / 720/50.00p 24.00Hz: 1080/24.00PsF
Ethernet	Remote Control: LAN Terminal (RJ-45) Power Supply: PoE+ (IEEE802.3at compliant) Use an IEC60950-1 or IEC62368-1 compliant PoE+ (IEEE802.3at compliant) hub or power supplying device.
Remote input	f2.5mm
Microphone	Stereo, Wind Noise Canceller: OFF / Low / Standard / High When attaching DMW-MS2 (sold separately).
Speaker	-
External microphone / external audio device input	f3.5mm for external microphone / external audio device MIC (Plug-in Power) / MIC / LINE is selectable. Stereo/Lens Auto/Shotgun/Super Shotgun/Manual is selectable when attaching DMW-MS2 (sold separately).
XLR microphone	Yes with DMW-XLR1 (sold separately)
Headphone output	f3.5mm
SD card slot	Slot 1, Slot 2
TC INOUT
Count up	Rec Run / Free Run
Time code mode	Drop Frame / Non-Drop Frame (When system frequency [59.94Hz] is selected.)
HDMI time code output	ON / OFF
SDI time code output	ON / OFF
External TC setting	TC Synchronization / TC Output Reference
Genlock IN
Genlock IN	ON / OFF
Horizontal phase synchronization	-206 - +49
Fan	Auto1 / Auto2 / Normal / Slow
Lamp	Tally Lamp (front/rear) / Card Access Lamp / Power LED / Network LED
Flash	-
WIRELESS
Wi-Fi	2.4GHz (STA/AP), IEEE 802.11b/g/n, 2412 MHz - 2462 MHz (1-11 ch), Wi-Fi / WPA / WPA2, Infrastructure mode
Bluetooth	Bluetooth v4.2 (Bluetooth Low Energy (BLE))
POWER
Direct power supply	AC Adaptor (12V, 3A) (bundled) Li-ion Battery Pack (7.28V) (sold separately) PoE+ (IEEE802.3at compliant) (sold separately)
Battery	Li-ion Battery Pack AG-VBR59 (7.28V, 5900mAh, 43Wh) (sold separately) Li-ion Battery Pack AG-VBR89 (7.28V, 8850mAh, 65Wh) (sold separately) Li-ion Battery Pack AG-VBR118 (7.28V, 11800mAh, 86Wh) (sold separately)
Continuous recordable time (Motion picture) (3)	MP4 [4K/60p]: Approx. 230 min (S35mm), MP4 [FHD/60p]: Approx. 300 min (FULL) When using S-R24105 and AG-VBR59 (sold separately). When the battery is fully charged. MP4 [4K/60p]: Approx. 360 min (S35mm), MP4 [FHD/60p]: Approx. 470 min (FULL) When using S-R24105 and AG-VBR89 (sold separately). When the battery is fully charged. MP4 [4K/60p]: Approx. 480 min (S35mm), MP4 [FHD/60p]: Approx. 630 min (FULL) When using S-R24105 and AG-VBR118 (sold separately). When the battery is fully charged.
Actual recordable time (Motion picture) (3)	MP4 [4K/60p]: Approx. 115 min (S35mm), MP4 [FHD/60p]: Approx. 150 min (FULL) When using S-R24105 and AG-VBR59 (sold separately). When the battery is fully charged. MP4 [4K/60p]: Approx. 180 min (S35mm), MP4 [FHD/60p]: Approx. 235 min (FULL) When using S-R24105 and AG-VBR89 (sold separately). When the battery is fully charged. MP4 [4K/60p]: Approx. 240 min (S35mm), MP4 [FHD/60p]: Approx. 315 min (FULL) When using S-R24105 and AG-VBR118 (sold separately). When the battery is fully charged.
DIMENSIONS WEIGHT
Dimensions (W x H x D)	Approx. 93.0 x 93.0 x 78.8 mm / 3.66 x 3.66 x 3.1 inch (excluding protrusions)
Weight	Approx. 585g / 1.29 lb (Body only)
OPERATING ENVIRONMENT
Operating temperature (5)	-10 to 40 (14F to 104F)
Operating humidity	10RH to 80RH
STANDARD ACCESSORIES
Software	LUMIX Tether for Multicam This software is used to control a Panasonic digital camera from a PC. It allows you to change various settings of the camera, perform remote recording, and save remotely recorded images to the PC. Check the site below to download and install the software. http://panasonic.jp/support/global/cs/soft/download/d_lumixtether.html (For Windows / Mac)
Standard accessories	AC Adaptor, AC Cable, Cable Lock Band, Body Cap, Hot Shoe Cover, AUDIO Terminal Cover, DC IN Terminal Cover, BNC Terminal Cover, HDMI Terminal Cover, REMOTE Terminal Cover The DC-BS1H Operating Instructions for advanced features is available for downloaded at Panasonic LUMIX Customer Support Site using PC, smartphone or tablet connected to the Internet.
NOTE	(1) HLG is selectable. (2) High-res audio is selectable only when using the DMW-XLR1 (sold separately). (3) About motion picture recording - Use a card with SD Speed Class with "Class 4" or higher when recording motion pictures in [MP4(under 28Mbps)]. - Use a card with SD Speed Class with "UHS-I / UHS-II UHS Speed Class 3 (U3)" when recording motion pictures with [MP4] in [4K] or [MOV]. (SD speed class is the speed standard regarding continuous writing.) - Video Speed Class 60 or higher is required for ALL-Intra 400Mbps recording. Use of SD Memory Card with Video Speed Class 60 or higher is recommended for C4K/4K ALL-Intra video recording. - MP4 motion pictures with [MP4] in [4K]: - When using an SDHC memory card: You can continue recording without interruption even if the file size exceeds 4 GB, but the motion picture file will be divided and recorded/played back separately. - When using an SDXC memory card: You can continue recording without interruption even if the file size exceeds 96 GB or 3 hours 4 minutes in length, but the motion picture file will be divided and recorded/played back separately. - MP4 motion pictures with [MP4] in [FHD]: - You can continue recording without interruption even if the file size exceeds 4 GB or 30 minutes in length, but the motion picture file will be divided and recorded/played back separately. - 4:2:2 10-bit recording is a recording mode for film production and the video needs to be processed on PC. The original video cannot be played on standard TV, Blu-ray Disc recorder and Blu-ray Disc player. It may cause problems such as freezing when played on these devices. - When the ambient temperature is high or continuous recording is performed, the camera may stop the recording to protect itself. Wait until the camera cools down. (4) For [6K] [5.9K] [5.4K] [C4K/60p] [C4K/50p] [4K/60p] [4K/50p] video output, use an HDMI2.0 cable that has the HDMI logo on it, and that is described as"4K compatible". (5) The camera may stop recording when used in lower or higher than recommended operating temperature: -10 to 40 degrees.
