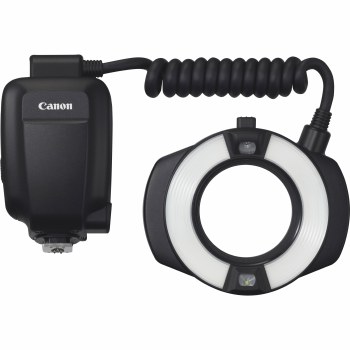

Canon Macro Ring Lite MR-14EX II

Lighting up the macro world
A high performance Macrolite flash delivering creative lighting solutions for photographers shooting close-up images, both on location and in the studio.
NB - this Macro Twin Lite requires the correct Canon Macrolite Adapter in order to be attached to your lens
- Ring-flash design for versatile lighting when shooting close-up
- Powerful performance with guide number 14 (ISO 100, m)
- Independently variable dual flash tubes for creative lighting control
- LED modelling lamps make composition and focusing easier
- Quick and easy to use: controllable from camera or flash
Creative close-up flash photography
A ring-flash design allows uniform lighting of small subjects – ideal for wildlife photographers shooting flowers and insects, and those working in specialist scientific applications. E-TTL II metering makes accurate flash exposures simple.
Creative shadow control
Dual flash tubes can be varied independently, over a six-stop ratio, permitting different lighting styles. Use both tubes evenly for a shadowless effect, or make one tube brighter than the other for relief lighting that emphasises textures. The Macro Ring Lite MR-14EX II’s flash head can be rotated around the lens, allowing the dominant light source to come from any angle.
High performance
High power output, with a guide number of 14 (ISO 100, m), allows the use of small apertures for maximum depth of field when shooting up close. Colour-temperature information is transmitted back to the camera during shooting, helping to optimise auto white balance.
Integrates with other flashes
The Macro Ring Lite MR-14EX II can be used as an optical wireless master in a multi-flash lighting set-up, triggering Speedlite flashes set to slave mode. This is useful when using a second flash to illuminate a background, for example.
Innovative, instinctive design
Control the Macro Ring Lite MR-14EX II using controls on your EOS camera, or via an easy-to-read dot matrix display. A bright LED modelling lamp makes focusing and composition easier in low light, while custom settings allow functions to be personalised to suit your own way of working.
Reliable performance you can count on
Fast, silent recycling ensures that you’ll be ready to shoot at just the right time. The Macro Ring Lite MR-14EX II is ready to fire again in just 5.5 sec following a full-power discharge. A self-cleaning hot-shoe with two-line electronic transmission ensures a proper connection with your camera.
POWER | |
---|---|
Guide No. (ISO100).meters | 14 |
ZOOM | |
Zoom head | No |
FLASH MODES | |
Auto exposure control | E-TTLII/E-TTL/TTL |
High speed sync (FP) | Yes |
Manual / output settings | Yes - 1/1- 1/128 |
Manual steps | 1/3 step |
FLASH-RELATED FUNCTION | |
FE lock | Yes |
Flash exposure compensation | Yes |
Flash exposure bracketing | Yes |
Second-curtain flash sync | Yes |
Modelling flash | Yes |
Colour temperature info communication | Yes |
WIRELESS FLASH | |
Transmitter | Yes |
Transmission type | Infra-red |
Transmitter Max range approx. | Indoors: 5m Outdoors: 3m |
Slave | No |
No. of groups | 3 |
No. of channels | 4 |
AF ASSIST | |
AF-assist beam | No (Focusing lamp) |
POWER SOURCE | |
Battery | 4 x AA batteries |
Minimum recycling time | Approx. 5.5sec |
External power supply | Yes - CP-E4 |
CONSTRUCTION | |
Dust and water resistance | No |
Mounting foot material | Metal |
MISC. | |
Custom function | 12 (27 options) + 3 personal functions |
Flash settings from camera menus | Yes |
External flash exposure sensor | No |
PC terminal | No |
Compatible accessories | Macro Lite Adapter 72c, 67Compact battery Pack CP-E4 EX Series Speedlite with Slave function |
Dedicated flash bracket | No |
DIMENSIONS & WEIGHT | |
Size (W x H x D), mm | Control unit 69.6 x 118.8 x 71.4Flash unit 129.6 x 112.1 x 25.3 |
Weight (Excluding batteries), grams | 455 |
