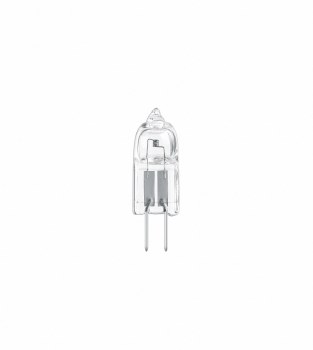

Osram 64275 AX Low-voltage halogen lamp without reflector
)
Product family features
- Xenon instead of krypton as the filler gas (XENOPHOT HLX versions)
- Luminous flux up to 10 % higher with same power consumption (XENOPHOT HLX versions)
- HLX tungsten halogen low-voltage lamp with or without reflector
- Dimmable (HLX)
Product family benefits
- Compared to standard lamps up to 10 % higher luminous efficacy (HLX)
- Instant light (HLX)
Areas of application
- Lamps for special luminaires
- Medical fiber optics (HLX)
Country specific categorizations
Order reference
64275 AX 35W 6V
LIF
M/137
Electrical data
Nominal voltage
6 V
Nominal wattage
35.00 W
Photometrical data
Color temperature
3350 K
Nominal luminous flux
755 lm
Color rendering index Ra
100
Dimensions & weight
Diameter
9 mm
Length
35.0 mm
Light center length (LCL)
26.0 mm
Filament length
1.30 mm
Illuminated field
1.3*1.6 mm²
Filament diameter
1.6 mm
Lifespan
Lifespan
50 h
Additional product data
Base (standard designation)
G4
Minimum diameter of lamp enclosure
9 mm
Capabilities
Burning position
Any
Application
Other
