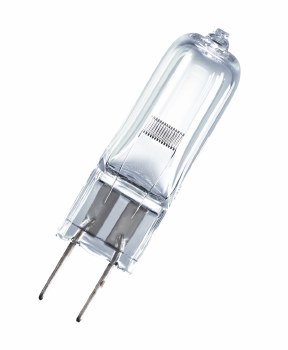

Osram 64657 HLX Low-voltage halogen lamp without reflector
Product family features
- Xenon instead of krypton as the filler gas (XENOPHOT HLX versions)
- Luminous flux up to 10 % higher with same power consumption (XENOPHOT HLX versions)
- HLX tungsten halogen low-voltage lamp with or without reflector
- Dimmable (HLX)
Product family benefits
- Compared to standard lamps up to 10 % higher luminous efficacy (HLX)
- Instant light (HLX)
Areas of application
- Lamps for special luminaires
- Medical fiber optics (HLX)
Country specific categorizations
Order reference
64657 HLX
ANSI code
EVC
LIF
M/33
Electrical data
Nominal voltage
24.0 V
Nominal wattage
250.00 W
Photometrical data
Nominal luminous flux
9000 lm
Color rendering index Ra
100
Dimensions & weight
Diameter
13.5 mm
Length
55.0 mm
Light center length (LCL)
33.0 mm
Filament length
8.00 mm
Illuminated field
8.0*4.0 mm²
Filament diameter
4.0 mm
Lifespan
Lifespan
300 h
Additional product data
Base (standard designation)
G6.35
Minimum diameter of lamp enclosure
14 mm
Capabilities
Burning position
s90
Application
Other
