DJI Focus Pro All-In-One Combo
DJI Focus Pro, DJI's first independent Automated Manual Focus (AMF) lens control system, provides cinematographers with a robust and comprehensive focus solution, ushering in a new era of human-machine collaborative focus control.
- LiDAR Focusing, Accessible to All
- AMF, Human-Machine Collaboration
- FIZ Lens Control, Master the Scene
- Seamless Interconnectivity, All-Scenario Experience
The Grip features a system power supply, touchscreen operations, lens calibration and data storage, Bluetooth start/stop recording, and handheld shooting capabilities. Based on efficient operation with the Grip, the Hand Unit helps collaborative teams bring depth to their visual storytelling through precise focus control, accommodating a diverse array of shooting scenarios and genres. When paired with the LiDAR and Motor, these offer an efficient autofocus and creative experience for cinematographers.

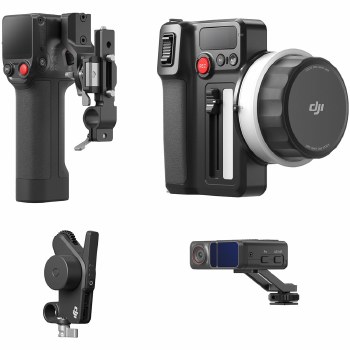

Includes the LiDAR, Grip, Motor, Hand Unit, and Carrying Case.
DJI Focus Pro LiDAR Specs
Compatibility
|
DJI RS 3 Pro / RS 4 Pro / Focus Pro Grip
|
Resolution
|
1920 x 1440
|
Frame Rate
|
30 fps
|
Field of View
|
57.4° (Horizontal)
44.6° (Vertical) |
Range
|
0.5 to 20 m
|
USB I/O
|
2 x USB-C Female Input
|
Power Source
|
USB
|
DC Input Power
|
6.6 to 17.2 VDC
|
Power Consumption
|
6.3 W (Typical)
6.8 W (Maximum |
Environmental Protectio
|
No
|
Mounting
|
1x Cold Shoe
1x 1/4"-20 Thread |
Color
|
Black
|
Cable Length
|
30 cm
|
Dimensions
|
68 x 57 x 25 mm
|
Weight
|
140 g
|
DJI Focus Pro Grip Specs
Compatibility
|
DJI Focus Pro Motor / RS 4 Pro Gimbal Stabilizer / RS 3 Pro Gimbal Stabilizer
|
Display Size
|
1.8"
|
Touchscreen
|
Yes
|
USB I/O
|
4 x USB-C Female Inpu
|
Wireless
|
2.4 GHz Radio/RF / Bluetooth |
Power Source
|
Battery
|
Battery Type
|
1x Internal Rechargeable
|
DC Input Power
|
6.6 to 8.4 VDC
|
Operating Temperature
|
-20 to 45°C
|
Mounting
|
1x NATO Clamp
2x NATO Rail 1x M4 Screw 1x 1/4"-20 Screw |
Color
|
Black
|
Cable Length
|
40 cm
|
Dimensions
|
162 x 73 x 59 mm
|
Weight
|
482 g
|
DJI Focus Pro Motor Specs
Compatibility
|
DJI RS 3 Gimbal Stabilizer / RS 4 Gimbal Stabilizer / RS 3 Pro Gimbal Stabilizer / RS 4 Pro Gimbal Stabilizer / Focus Pro Grip / Focus Pro Hand Unit / Ronin 4D Flex
|
Max Transmission Distance
|
160 m
|
Gear Specs
|
30 Teeth, 0.8 MOD
|
Max Torque
|
0.6 Nm
|
Speed
|
300 rpm (Max)
|
USB I/O
|
1 x USB-C Female Input
|
Wireless
|
2.4 GHz Radio/RF
|
Power Source
|
USB
|
DC Input Power
|
6.6 to 17.2 VDC
|
Certifications
|
CE, FCC
|
Operating Temperature
|
-20 to 45°C
|
Mounting
|
1x 15mm Rod
1x 1/4"-20 Screw 1x Rod Mount Kit |
Cable Length
|
30 cm
|
Dimensions
|
100 x 61 x 34 mm
|
Weight
|
123 g
|
DJI Focus Pro Hand Unit Specs
Compatibility
|
DJI RS 4 Pro Gimbal Stabilizer / RS 3 Pro Gimbal Stabilizer |
Max Transmission Distance
|
100 to 150 m
|
Display Size
|
1.09"
|
Touchscreen
|
Yes
|
Wireless
|
Bluetooth / 2.4 GHz Radio/RF
|
Power Source
|
Battery
|
Battery
|
1x Sony L-Series
|
DC Input Power
|
6.3 to 8.4 VDC
|
Power Consumption
|
0.83 W (Typical)
|
Certifications
|
CE, FCC
|
Operating Temperature
|
-20 to 45°C
|
Cable Length
|
50 cm
|
Dimensions
|
128 x 87 x 87 mm
|
Weight
|
555 g
|
