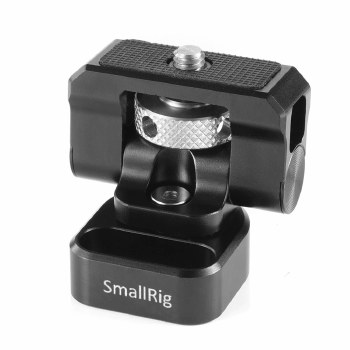

SmallRig Swivel and Tilt Monitor Mount BSE2294
SmallRig Swivel and Tilt Monitor Mount BSE2294 is designed to hold your monitor onto a camera cage, handle or other mounting system via two 1/4”-20 screws. The sturdy aluminum mount enables to swivel 360° sideways and tilt 150° without using tools. The lightweight mount weights only 68g and can support 5”and 7”monitor up to 1.2kg. It features rubber pads on the top to prevent your monitor from scratching. The thumbscrew features hex spanner holes to re-tighten the screw to ensure your monitor safe. When not in use, the mount can simply folds away for storage.
Designer: Tracy Joy
Note
1: Maximum payload: 1.2kg
2: Retighten the thumbscrew with the Allen key for security.
3: Do not adjust the monitor bracket without attaching a monitor or lamp.
Compatibility:
SmallHD Focus Series
SmallHD Focus OLED Series
SmallHD UltraBright Series
SmallHD 500 Series, 700 Series
Atomos Ninja Series
Atomos Shogun Flame
Blackmagic Video Assist 5 ”
Scope of delivery:
1 x monitor bracket
2 x Allen keys
2 x 1/4 "-20 screw
Product dimensions: 46 x 41.4 x 38 mm
Packaging dimensions: 76 x 63 x 40 mm
Net weight: 68g
Package Weight: 105g
Material: aluminum alloy
*Please note the import tax may occur.
