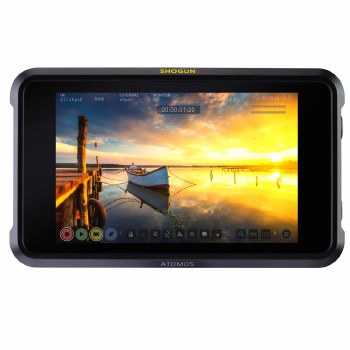

Atomos Shogun 7
)
Shogun 7 embraces the high production values of RAW and 4K HDR to give you complete control of every aspect of your production, on-set and in post. Meticulously monitor every pixel of SDR or HDR as it’s captured. Record up to 5.7K Apple ProRes RAW* or 4K Apple ProRes directly to affordable SSD drives avoiding the high costs and limitations of SD memory cards. You can even shoot RAW at high frame rates up to HDp240.
Intuitive touch screen operation
One-touch operation gives you access to a complete suite of scopes, exposure, zoom, calibration and focus tools to ensure a great recording every time.
Instant playback & review
Playback rushes on-set, either on-screen or out to any Dolby Vision capable TV or monitor. Even watch it in slow motion for more detailed frame-by-frame analysis.
Shot tagging
Metadata tag footage as you go to mark favorites, rejects and more. When you bring your footage into your edit timeline, immediately filter your tags.
Balanced audio
Add 48V stereo mics via an XLR breakout cable. Select mic or line input levels, record up to 12 channels of digital audio from HDMI or SDI and monitor via the 3.5mm headphone jack.
High speed connections
Cross convert between HDMI 2.0 and 1.5G/3G/6G/12G single link SDI or Dual/Quad Link in almost any combination, eliminating the need for specialist converters.
Quad SDI & HDMI 2.0 In/Out
Connect any SDI or HDMI device for monitoring and recording. Cross convert between HDMI 2.0 and 1.5G/3G/6G/12G/Quadlink SDI without specialist converters.
| Weight | |
|---|---|
| Without batteries & media | 709g / 25oz. |
| Dimensions (W x H x D mm) | 214 x 127 45mm |
| Construction | Polycarbonate ABS |
| Mounting points | 1/4-20 screw mount. 1x top and 1x bottom |
| Power | |
| Operating power | 10 - 33W |
| Compatible batteries | Atomos NP-F series and supporting accessories |
| Input voltage (battery) | 6.2V to 16.8V |
| Battery time (based on 2 x 7.4V) | 5200mAh - up to 1.5hrs (monitor & record 4K 30p) / 7800mAh - up to 2.2hrs (monitor & record 4K 30p) |
| DC In | 1 x DC in (6.2 - 16.8V) |
| Touchscreen | |
| Size | 7.2 |
| Resolution | 1920 x 1200 |
| PPI | 325 |
| Aspect ratio | 16:9 native |
| Color Gamut | Up to Wide color gamut (105 DCI-P3) |
| Look up table (LUT) support | 3D LUT (.cube format) |
| Anamorphic de-squeeze | 2x, 1.5x, 1.33x |
| Technology | Dynamic AtomHDR zoned backlight IPS LCD |
| Dynamic AtomHDR Technology | |
| Backlight | Direct LED |
| Zones | 360 direct backlight individual LEDs |
| LEDs | Wide Color Calibrated D65 or D95 |
| Bit depth | 10-bit (8+2 FRC) |
| Color | DCI-P3 105 |
| Brightness | 3000nits (+/- 10) |
| Control | On the fly real-time brightness analysis for LED control |
| HDR Conversion | Log/RAW to HLG or PQ |
| HDR Monitoring Technology | |
| Gamma | Sony SLog / SLog2 / SLog3 Canon CLog / CLog2 / Clog3 ARRI Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320 / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600 Panasonic Vlog JVC JLog1 RED Log3G10 / RED LogFilm FujiFilm F-log Nikon N-Log PQ10k HLG |
| Gamut | Sony SGamut / SGamut3 / SGamut3.cine Canon Cinema / DCI P3 / DCI P3+ Nikon Bt2020 Panasonic V Gamut Arri Alexa Wide Gamut Rec709 / BT.2020 JVC RED WideGamut / RED DragonColor / DragonColor2 / RED Color2 / RED Color3 / RED Color4 / |
| Video input/loop out | |
| HDMI | HDMI 1 x HDMI (2.0) |
| SDI | Quad Link 4 x 3G/6G SDI, 4 x 3G-SDI, 2x 12G single link SDI |
| Signal | Uncompressed true 10-bit or 8-bit 422 (camera dependent) |
| Genlock | Genlock input signal and output signal |
| Video output (play out) | |
| HDMI | 1 x HDMI (2.0) |
| SDI | 2x 4K-SDI 12G or HD-SDI 3G/6G |
| Signal | Uncompressed true 10-bit or 8-bit 422 (playback file dependent) |
| Video signal conversion | |
| HDMI to SDI | - |
| SDI to HDMI | - |
| Audio in/out (48kHz PCM audio) | |
| HDMI | 2 or 8ch 24-bit, camera dependent |
| SDI | 12ch 48kHz 24-bit |
| Audio | 2ch balanced XLR analogue in/out Dynamic range >90dB Max signal level +24dBu Max analogue gain +52dB 48V Phantom Power for Mic |
| Headphone out | 3.5mm 2ch. |
| Supported Codecs & frame rates (record & playback) | |
| Raw to: | ProRes RAW ProRes CinemaDNG (CDNG up to 30p only) Avid DNxHD |
| Sony FS700, FS-5, FS-7, FS-7MkII | 4K DCI; 24/25/30/50/60p 4K UHD; not supported in camera 2K; 24/25/30/50/60/100/120/200/240p 1080; not supported in camera |
| Canon C300MKII/C500 CDNG |
4K DCI; 24/25/30p 4K UHD; 24/25/30p 2K; not supported in camera 1080; not supported in camera |
| Panasonic VaricamLT, EVA1 |
5.7K DCI; 24/25/30p (EVA1 ProRes RAW only) 4K DCI; 24/25/30/50/60p 4K UHD; 24/25/30/50/60p 2K; 24/25/30/50/60/100/120/200/240p 1080; not supported in camera |
| Supported base resolution & FPS from cameras | 4K DCI: 23.98/29.9/59.94p 4K UHD: 23.98/29.9/59.94p 2K DCI: 23.98/29.9/59.94p 1080p: 23.98/29.9/59.94p |
| Supported FPS & resolution from gaming consoles and graphic cards | 1080p; 24/25/30/50/60/100/120 |
| Onboard processing | |
| Pulldown removal | 24/25/30pSF > 24/25/30p (2:2 pulldown) 60i > 24p (3:2 pulldown) |
| 4K UHD downscale for HD monitoring | Yes - Loop-out and playback (Not available in RAW) |
| Remote start/stop | |
| HDMI | Auto HDMI Trigger Supported Protocols - Dolby Vision, Canon, Sony, Atomos Open Standard |
| SDI | SDI trigger camera selectable |
| Other | LANC control - Slave |
| Playback | |
| Playlist / Genlock / LTC | Yes / Yes / Yes |
| CDNG (Recorded content) | No support |
| ProRes (Recorded content) | All recorded files can playback. Playback in slow motion > 100fps. |
| DNxHR / DNxHD (recorded content) | All recorded files can playback. Playback in slow motion > 100fps. |
| Recording | |
| Pre-roll record | Yes (HD 8s, 4K 2s) |
| Custom timelapse | Yes |
| Supported media | 2.5 SSD/HDD compatibility depends on recording format, resolution and frame rate. Visit |
| atomos.com/drives | for list of tested and approved drives |
| Master caddy case | Master Caddy II (included) 75mm x 105mm x 12mm |
| Master caddy dock | 2.5 SATA to USB 2.0/3.0 |
| Supported applications | Final Cut Pro / Media Composer / Premiere Pro / After Effects / EDIUS / Vegas Pro / Lightworks / Autodesk Smoke |
| Whats in the box | |
| Accessories included | Shogun 7 unit, Master Caddy II x 1, 12V-3A AC power supply, Carry Case Quick Start guide |
| Optional extras | 1 x charger, 1 x power supply, HPRC case, USB dock, control cable, Dtap cable, Master Caddy x 4, Power supply, Sun hood 1 x charger, 1 x power supply Breakout XLR cable, X-Rite i1DisplayPro calibration |
Atomos devices can monitor and record professional audio and video from any HDMI or SDI device. Not only cameras, but also Mac, PC, Game Consoles and Industrial devices. While the devices can record almost anything, to be useful you'll want to ensure that your camera has a "clean output" i.e. no menu information on the sensor output. The list below will allow you to browse cameras that are compatible with a specific Atomos device. To search for compatible Atomos devices based on the camera you own try their ALL PRODUCTS page.
