Reflecta VideoCapture Set USB

With the reflecta VideoCapture Set USB, your analogue video treasures can be digitized in a very easy way. The extensive set allows easy connection of any old video recorder or camcorder. No drivers need to be installed to bring the video grabber to the start. Simply plug it into an USB port on your PC and the device will automatically be recognized as an USB camera. The incoming video and audio signal can now be captured with standard software like Windows Camera or QuickTimeTM on Mac. Especially for editing and burning DVDs the included video editing program honestech VHS to DVD is very useful.
- For digitising your analogue video treasures
- The extensive set allows easy connection of old video recorders and camcorders
- No drivers required, automatic device detection
Connections
- Output: USB 2.0 / 3.0
- Input: Composite Video (Cinch), S-Video (Mini DIN 4-pin), Audio L/R (Cinch)

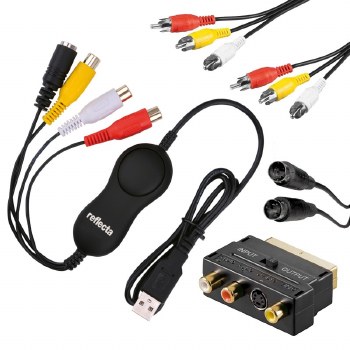

In The Box
- Video grabber
- Scart adapter
- Cinch cable (audio/video)
- S-Video cable
- Honestech VHS to DVD 3.0 SE software (on CD, Windows only)
Countless old video cassettes are still being stored in many households. Entire film collections with holiday memories, wedding videos or a child’s first steps are sidelined, not having been connected to a camcorder for the longest of times. How can one save the precious videos into the digital age before time takes its toll and renders them unusable?
The specialist for digitization of analog image and sound material, reflecta GmbH, delivers an equally easy and effective possibility of digitizing analog video treasures. The extensive set has all the needed cables and adaptors, and allows for a simple connecting to old video recorders and camcorders via a USB port of any computer. No drivers need to be installed with the video grabber, the 80cm long cable is simply connected to the USB port of a PC, which automatically recognizes it as a USB camera. The conveyed video and audio signal can be received and recorded with a standard software such as the Windows Camera™ or QuickTime™.
This enables the VideoCapture Set to run under both Windows as well as Mac OS, without needing to install an additional driver. To record, edit, or burn DVDs, we suggest the "honestech VHS to DVD™" program, included in delivery.
Video resolution | NTSC: 160x120 - 720x480 PAL: 160x120 - 720x576 |
Power Supply | USB |
System Requirements (Windows) | Windows 10/8/7/Vista, Pentium IV 1.7 GHz of faster, min. 512 MB RAM, min. 1GB free HDD storage, USB 2 port |
System Requirements (Mac) | OS X 10.4 or higher |
USB connection | USB 2.0 USB 3.0 |
TV-System | PAL/NTSC |
Input | Composite Video (Cinch), S-Video (Mini DIN 4-pin), Audi L/R (Cinch) |
Frame rate | PAL 25 fps, NTSC 30 fps |
Weight | 67 g |
Dimensions | 73 x 30 x 22 mm (L x W x H) |
Scope of delivery | VideoGrabber, Scart adapter, cinch cable (Audio / Video), S-Video cable, software (Windows only) |
