Sennheiser SKP 500 G4 Microphone

Sennheiser SKP 500 G4 Microphone
€549.00
EAN / UPC : 4044155265767 | Brand : Sennheiser | SKU : 509899

Notify Me Request Delivery Info

add to basket
  add to list   add to registry

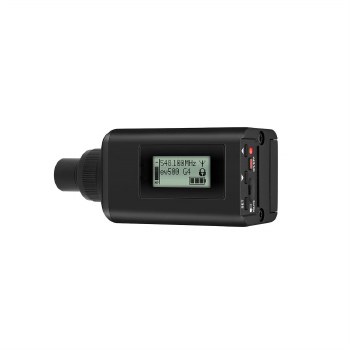

Powerful black plug-on transmitter with phantom power, increased bandwidth and transmission power for evolution wireless G4 500P Series systems. For professional film productions.

  • Professional sound and excellent construction quality
  • Easy to use and fast setup time
  • Easy and flexible wireless synchronisation between transmitter and receiver via infrared
  • Up to 88 MHz bandwidth, up to 32 channels
  • Range: up to 100 meters / 330 feet
  • Increased RF output power (10/30/50 mW)
  • Up to 8 hours of operation time
  • With 48 V phantom powering
  • Frequency range

    AS: 520 - 558 MHz

    Aw+: 470 - 558 MHz

    Bw: 626 - 698 MHz

    Cw: 718 - 790 MHz

    Dw: 790 - 865 MHz

    GBw: 606 - 678 MHz

    Gw: 558 - 626 MHz

    Gw1: 558 - 608 MHz

    JB: 806 - 810 MHz

    K+: 925 - 937.5 MHz

  •
  • Dimensions

    Approx. 105 x 43 x 43 mm

  •
  • Compander

    Sennheiser HDX

  •
  • THD, total harmonic distortion

    ≤ 0.9 %

  •
  • Weight

    (incl. batteries) approx. 195 g

  •
  • Signal-to-noise ratio

    ≥ 120 dBA

  •
  • RF output power

    switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW

  •
  • Switching bandwidth

    up to 88 MHz

  •
  • Peak deviation

    ±48 kHz

  •
  • Nominal deviation

    ±24 kHz

  •
  • Operating time

    Typically 8 h

  •
  • Modulation

    Wideband FM

  •
  • Power supply

    2 AA batteries, 1.5 V or BA 2015 accupack

  •
  • Current consumption

    at nominal voltage: typ. 210 mA

    with transmitter switched off: ≤ 25 μA

  •
  • Input impedance

    68 kΩ, unbalanced

  •
  • Max. Input voltage

    6 Veff

  •
  • Powering

    3 V battery / 2.4 V rechargeable battery

  •
  • Transmission frequency

    Max. 3520 frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation 6 frequency banks with up to 32 programmable channels

  •
  • AF frequency response

    80 – 18,000 Hz

  •
  • Temperature Range

    -10 °C to +55 °C

What's in the Box
  • SKP 500 G4 pro plug-on transmitter
  • 2 AA batteries
  • POP 1 pouch with belt clip
  • quick guide
  • safety guide
  • manufacturer declaration sheet
