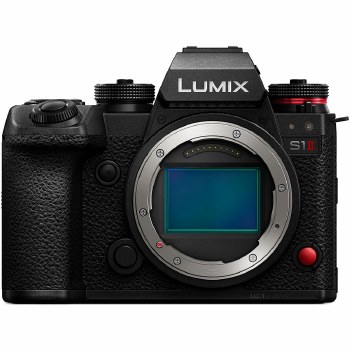

Panasonic Lumix S1 Mark II Full-Frame Hybrid Mirrorless Camera Body
Promotions & Cashbacks
Save €300 On Selected Lenses Bought With A Camera
Claim Panasonic Warranty Extension to 5 Years
NB - This 'Body Only' version does not include a lens with the camera. You will require at least one lens in order to take pictures.
Equipped with a newly developed partially stacked CMOS sensor, this hybrid model turns fleeting moments into stunning photos, records ultra-smooth high-frame-rate video, and delivers up to 15 stops of dynamic range*, capturing every instant with breathtaking intensity.
- Image Quality - newly developed 24.1MP full-frame, partially stacked CMOS image sensor, 96MP highres, LUMIX color science, AFC/AFS 70 fps with Blackout-free , HEIF Recording, latest L² Technology engine.
- Video Professional – LUMIX's first Open Gate 5.1K 60p high-speed recording option, along with other high-speed formats such as 4K 120p / 5.8K 60p, LUMIX’s first 15 stops of dynamic range video recording in V-Log at frame rates below 30p, ARRI LogC3 is supported via Upgrade Key DMW-SFU3A.
- Precise autofocus – Phase Hybrid AF with AI, image stabilizer, burst shooting, REAL TIME LUT, new AF recognition for ‘Urban Sports’, accurately capturing dynamic movements like breakdancing, skateboarding, and parkour.
- Shooting efficiency - LUMIX Lab/Flow App, Capture One, Frame.io, loading settings between different models.
- Superb operability - Photo/Video/S&Q switch, tilt and free-angle rear monitor, view finder, Hybrid/Crop Zoom.
The LUMIX S1II is meticulously crafted for professional photographers and videographers featuring LUMIX Color Science, wide dynamic range, 24MP high-speed performance allowing the creators to efficiently and precisely capture photos and videos just as they envision. Its newly developed 24.1MP full-frame partially stacked CMOS image sensor powered by an advanced-generation Venus Engine enables faster readout speeds and processing, and high frame rate recording in 4K120p and 5.1K 60p.
With the Dynamic Range Boost mode, it achieves up to 15 stops in V-Log at frame rates below 30p. Photography features include up to 70 frames high-speed continuous shooting per second with SH / SH pre-burst shooting up to 1.5 seconds ensures the capture of fleeting moments. LUMIX S1II also enhances workflow for versatility and streamlines content production. The highlyregarded Open Gate feature now supports formats beyond 6K30p, enabling 5.1K60p, thereby broadening creative possibilities for users. A future firmware update promises the addition of multiple frame marker displays for further enhancing creative flexibility.

Add-ons













Stunning clarity and dynamic range, powered by high-speed readout
The LUMIX S1II features a newly developed partially stacked CMOS sensor — LUMIX’s first* — delivering ultra-fast readout speeds and exceptionally detailed reproduction. This is also the first in the LUMIX S Series to feature Dynamic Range Boost, delivering smoother gradations and richer, more expressive video.
*As of May 2025, among Panasonic’s digital cameras.
A full suite of video formats featuring 5.1K 60p open gate recording
Designed for creators with a vision, this camera comes packed with advanced video recording formats. Thanks to a newly developed partially stacked CMOS sensor with high-speed readout, it supports open gate 6K 30p (3:2) and 5.1K 60p (3:2) recording, C4K/4K 120p high frame rate video, along with oversampled 4K video that delivers exceptional resolution and low noise. It opens up new creative possibilities for filmmakers and content creators.
8.0-stop 5-axis I.S. technology* / Active I.S. technology
Enjoy steady framing for both photos and videos, even when shooting handheld. When recording video, it reduces the significant shake and perspective distortion that often come with walking shots. There's also a cropless mode that works well for wide-angle shots.
A full suite of video formats featuring 5.1K 60p open gate recording
Designed for creators with a vision, this camera comes packed with advanced video recording formats. Thanks to a newly developed partially stacked CMOS sensor with high-speed readout, it supports open gate 6K 30p (3:2) and 5.1K 60p (3:2) recording, C4K/4K 120p high frame rate video, along with oversampled 4K video that delivers exceptional resolution and low noise. It opens up new creative possibilities for filmmakers and content creators.
Next-level autofocus with advanced AI recognition technology
Equipped with Phase Hybrid AF system that delivers high speed, precision, and tracking performance, the LUMIX S1II takes autofocus to the next level. With advanced AI technology, it can accurately recognize and focus on eyes and faces, even in challenging conditions where faces are tilted or partially obscured. The system now includes the Urban Sports recognition, enabling the camera to maintain precise focus on your subject, even in dynamic performance scenes. Additionally, the Motorcycle mode has evolved into the Motorcycle/Bike recognition mode.
Every moment, captured with clarity — 24.1MP sensor
LUMIX’s unique colour science, based on its picture-making philosophy “Capturing It All,” works in harmony with a newly developed 24.1MP partially stacked CMOS sensor to capture fleeting moments in rich, expressive detail. REAL TIME LUT also let you explore your own creative style. HEIF recording is now available as an option, adding extra flexibility to your workflow. High Resolution mode also enables you to capture 96MP-equivalent images*, even when shooting handheld, for exceptional detail without sacrificing mobility.
Fastest in the LUMIX S Series*: AFC burst shooting at 70 fps
With a newly developed partially stacked CMOS sensor that enables high-speed readout, the camera offers AFC burst shooting at approximately 10 fps using the mechanical shutter. Switch to the electronic shutter’s SH Burst or SH Pre-Burst modes, and you can capture critical moments at up to 70 fps, even during fast-moving scenes like sports, wildlife, or vehicles. The viewfinder and monitor stay blackout-free, allowing for confident framing with post view support.
*As of May 2025, among Panasonic’s digital cameras.
A tilt and free-angle monitor designed for comfortable creative work
A tilt and free-angle rear monitor lets you compose shots on the optical axis. You can rotate the monitor while the cable is still plugged in, which also makes it extremely useful for video production. When shooting outdoors, the high-resolution OLED viewfinder with approximately 5,760k dots supports natural framing.
Compact body without compromising operability
Designed with ergonomics in mind, every button, dial, and joystick is thoughtfully positioned for intuitive use. A refined compact design, weighing approximately 800g, was achieved without compromising operability. An operation lock lever helps prevent accidental adjustments.
Built to withstand extremes from -10°C to 40°C
The LUMIX S1II is designed to operate at temperatures as low as -10°C, and has also been verified for operation at temperatures as high as 40°C. Even in harsh field environments, it will support your passion for shooting photos and videos without fail.
Compatible with a variety of recording media
The LUMIX S1II is equipped with a dual card slot. Slot 1 is compatible with CFexpress Type B cards, enabling smooth recording of high-speed burst shooting and high-bitrate video. It also supports direct recording to USB-SSD, giving you the flexibility to choose the recording media that best suits your needs.
Compatible with a wide range of apps and software
From everyday use to production purposes, the LUMIX S1II supports a wide range of software. This includes LUMIX Lab app, which allows you to edit and upload content with one-stop; Capture One, which is used by professional photographers; LUMIX Flow, an app which makes video production more accessible; and Frame.io Camera to Cloud, a cloud-based service that allows you to share and collaborate on content.
Type | Digital Single Lens Mirrorless camera | |
Lens mount | L-Mount | |
IMAGE SENSOR | ||
---|---|---|
Type | 35mm full-frame (35.8mm x 23.8mm) CMOS sensor | |
Camera effective pixels / Total pixels | 24.1 megapixels / 26.8 megapixels | |
AR (Anti Reflection) coating | Yes | |
Aspect ratio / Colour filter | 3:2 / Primary colour filter | |
Dust reduction system | Image sensor shift type | |
Shutter Behavior at Power Off | ON / OFF | |
LATITUDE | ||
Dynamic Range Boost ON | 15 stops (V-Log) | |
Dynamic Range Boost OFF | 14+ stops (V-Log) | |
STILL IMAGE | ||
Recording file format | JPEG (DCF, Exif 3.0), RAW, HEIF | |
Aspect ratio | 4:3 / 3:2 / 16:9 / 1:1 / 65:24 / 2:1 | |
File size (Pixels) / When using full-frame lenses | 3:2 | 6000x4000(L) / 4272x2848(M) / 3024x2016(S) / 1920x1280(XS) / 12000x8000(XL)* / 8496x5664(LL)* *High Resolution mode. |
4:3 | 5328x4000(L) / 3792x2848(M) / 2688x2016(S) / 1712x1280(XS) / 10656x8000(XL)* / 7552x5664(LL)* *High Resolution mode. | |
16:9 | 6000x3368(L) / 4272x2400(M) / 3024x1704(S) / 1920x1080(XS) / 12000x6736(XL)* / 8496x4784(LL)* *High Resolution mode. | |
1:1 | 4000x4000(L) / 2848x2848(M) / 2016x2016(S) / 1280x1280(XS) / 8000x8000(XL)* / 5664x5664(LL)* *High Resolution mode. | |
65:24 | 6000x2208(L) | |
2:1 | 6000x3000(L) | |
File size (Pixels) / When using APS-C | 3:2 | 3984x2656(L) / 2880x1920(M) / 2064x1376(S) / 1920x1280(XS) |
4:3 | 3536x2656(L) / 2560x1920(M) / 1840x1376(S) / 1712x1280(XS) | |
16:9 | 3984x2240(L) / 2880x1624(M) / 2064x1160(S) / 1920x1080(XS) | |
1:1 | 2656x2656(L) / 1920x1920(M) / 1376x1376(S) / 1280x1280(XS) | |
Image quality | Fine, Standard | |
HDR (HLG) | Yes | |
Colour space | sRGB, AdobeRGB | |
MOTION PICTURE | ||
Recording file format | MOV: H.264/MPEG-4 AVC, H.265/HEVC, Apple ProRes, Apple ProRes RAW MP4: H.264/MPEG-4 AVC, H.265/HEVC |
|
Audio format | 4ch Audio Recording: OFF | MOV Linear format: LPCM (2ch stereo 48kHz/24-bit, 96kHz/24-bit*) Float format**: LPCM (2ch stereo 48kHz/32-bit, 96kHz/32-bit) *When attaching Φ3.5mm microphone or DMW-XLR2 (sold separately). **When attaching DMW-XLR2 (sold separately). MP4 Linear format: AAC (2ch stereo 48kHz/16-bit) |
4ch Audio Recording: XLR* | MOV Linear format: LPCM (4ch monaural 48kHz/24-bit) Float format: LPCM (4ch monaural 48kHz/32-bit) *When attaching DMW-XLR2 (sold separately). |
|
4ch Audio Recording: XLR*+Camera | MOV Linear format: LPCM (4ch monaural 48kHz/24-bit, 96kHz/24-bit**) *When attaching DMW-XLR2 (sold separately). **When attaching Φ3.5mm microphone or DMW-XLR2 (sold separately). |
|
System frequency | 59.94Hz / 50.00Hz / 24.00Hz | |
Image area of video | Full / APS-C / PIXEL/PIXEL | |
Log recording | V-Log, ARRI LogC3* *Upgrade Software Key (DMW-SFU3A) is required. | |
Proxy | ON / OFF Proxy Rec Quality: H / M / L Real Time LUT (Proxy): ON / OFF *When the following functions are being used, proxy recording is not available: [MP4], [Rec Quality] exceeding a resolution of C4K, [Rec Quality] with [4:3] or [3:2] aspect ratio, [Rec Quality] with a high frame rate video, and [Streaming]. |
|
MOV ¹ ² ³ / 59.94Hz / FULL | [6K] 5952x3968 (3:2) | 29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) |
[6K] 5952x2512 (2.4:1) | 59.94p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 47.95p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) |
|
[5.9K] 5888x3312 (16:9) | 59.94p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 47.95p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) |
|
[5.8K] 5760x3040 (17:9) | 59.94p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 47.95p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) |
|
[5.1K] 5088x3392 (3:2) | 59.94p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 47.95p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) |
|
[4.8K] 4800x3600 (4:3) | 59.94p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 47.95p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) |
|
[C4K] 4096x2160 (17:9) | 119.88p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 95.90p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 59.94p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 59.94p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 59.94p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; 59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; 59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; 47.95p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 47.95p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 47.95p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; 29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; 23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; |
|
[Cs4K] 4096x1728 (2.4:1) | 119.88p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 95.90p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 59.94p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 59.94p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 59.94p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; 59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; 59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; 47.95p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 47.95p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 47.95p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; 29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; 23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; |
|
[4K] 3840x2160 (16:9) | 119.88p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 59.94p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 59.94p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 59.94p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; 59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; 59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; 47.95p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 47.95p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 47.95p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; 29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; 23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; |
|
[FHD] 1920x1080 (16:9) | 239.76p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 239.76p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 239.76p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 119.88p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 119.88p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 119.88p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 59.94p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 59.94p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; 59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; 59.94p, 50Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; 47.95p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 47.95p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 47.95p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 29.97p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 29.97p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; 29.97p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; 29.97p, 25Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; 23.98p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 23.98p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; 23.98p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; 23.98p, 25Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; |
|
MOV ¹ ² ³ / 59.94Hz / PIXEL/PIXEL | [4.8K] 4800x3600 (4:3) | 59.94p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 47.95p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) |
MOV ¹ ² ³ / 59.94Hz / APS-C / PIXEL/PIXEL | [3.3K] 3328x2496 (4:3) | 119.88p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 59.94p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 59.94p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 59.94p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 47.95p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 47.95p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 47.95p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) |
[C4K] 4096x2160 (17:9) | 119.88p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 95.90p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 59.94p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 59.94p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 59.94p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; 59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; 59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; 47.95p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 47.95p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 47.95p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; 29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; 23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; |
|
[Cs4K] 4096x1728 (2.4:1) | 119.88p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 95.90p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 59.94p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 59.94p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 59.94p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; 59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; 59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; 47.95p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 47.95p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 47.95p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; 29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; 23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; |
|
[4K] 3840x2160 (16:9) | 119.88p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 59.94p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 59.94p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 59.94p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; 59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; 59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; 47.95p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 47.95p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 47.95p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; 29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; 23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; |
|
[FHD] 1920x1080 (16:9) | 239.76p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 239.76p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 239.76p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 119.88p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 119.88p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 119.88p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 59.94p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 59.94p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; 59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; 59.94p, 50Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; 47.95p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 47.95p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 47.95p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 29.97p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 29.97p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; 29.97p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; 29.97p, 25Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; 23.98p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 23.98p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; 23.98p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; 23.98p, 25Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; |
|
MOV ¹ ² ³ / 50.00Hz / FULL | [6K] 5952x3968 (3:2) | 25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) |
[6K] 5952x2512 (2.4:1) | 50.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) |
|
[5.9K] 5888x3312 (16:9) | 50.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) |
|
[5.8K] 5760x3040 (17:9) | 50.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) |
|
[5.1K] 5088x3392 (3:2) | 50.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) |
|
[4.8K] 4800x3600 (4:3) | 50.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) |
|
[C4K] 4096x2160 (17:9) | 100.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 50.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 50.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 50.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; 50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; 50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; 25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; |
|
[Cs4K] 4096x1728 (2.4:1) | 100.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 50.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 50.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 50.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; 50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; 50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; 25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; |
|
[4K] 3840x2160 (16:9) | 100.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 50.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 50.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 50.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; 50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; 50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; 25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; |
|
[FHD] 1920x1080 (16:9) | 200.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 200.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 200.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 100.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 100.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 100.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 50.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 50.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; 50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; 50.00p, 50Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; 25.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 25.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; 25.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; 25.00p, 25Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; |
|
MOV ¹ ² ³ / 50.00Hz / PIXEL/PIXEL | [4.8K] 4800x3600 (4:3) | 50.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) |
MOV ¹ ² ³ / 50.00Hz / APS-C / PIXEL/PIXEL | [3.3K] 3328x2496 (4:3) | 100.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 50.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 50.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 50.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) |
[C4K] 4096x2160 (17:9) | 100.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 50.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 50.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 50.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; 50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; 50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; 25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; |
|
[Cs4K] 4096x1728 (2.4:1) | 100.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 50.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 50.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 50.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; 50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; 50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; 25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; |
|
[4K] 3840x2160 (16:9) | 100.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 50.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 50.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 50.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; 50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; 50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; 25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; |
|
[FHD] 1920x1080 (16:9) | 200.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 200.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 200.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 100.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 100.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 100.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 50.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 50.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; 50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; 50.00p, 50Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; 25.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 25.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; 25.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; 25.00p, 25Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; |
|
MOV ¹ ² ³ / 24.00Hz / FULL | [6K] 5952x3968 (3:2) | 24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) |
[6K] 5952x2512 (2.4:1) | 48.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) |
|
[5.9K] 5888x3312 (16:9) | 48.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) |
|
[5.8K] 5760x3040 (17:9) | 48.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) |
|
[5.1K] 5088x3392 (3:2) | 48.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) |
|
[4.8K] 4800x3600 (4:3) | 48.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) |
|
[C4K] 4096x2160 (17:9) | 120.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 96.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 48.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 48.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 48.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; 24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; 24.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; |
|
[Cs4K] 4096x1728 (2.4:1) | 120.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 96.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 48.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 48.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 48.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; 24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; 24.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; |
|
[4K] 3840x2160 (16:9) | 120.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 48.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 48.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 48.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; 24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; 24.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; |
|
[FHD] 1920x1080 (16:9) | 48.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 48.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 48.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 24.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 24.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; 24.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; 24.00p, 25Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; |
|
MOV ¹ ² ³ / 24.00Hz / APS-C / PIXEL/PIXEL | [3.3K] 3328x2496 (4:3) | 120.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 48.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 48.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 48.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) |
[C4K] 4096x2160 (17:9) | 120.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 96.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 48.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 48.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 48.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; 24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; 24.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; |
|
[Cs4K] 4096x1728 (2.4:1) | 120.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 96.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 48.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 48.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 48.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; 24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; 24.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; |
|
[4K] 3840x2160 (16:9) | 120.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 48.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 48.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 48.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; 24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; 24.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; |
|
[FHD] 1920x1080 (16:9) | 48.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 48.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 48.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 24.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 24.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; 24.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; 24.00p, 25Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) &sup4; |
|
MP4 ¹ ² / 59.94Hz / FULL | [4K] 3840x2160 (16:9) | 59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) 29.97p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 23.98p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) |
[FHD] 1920x1080 (16:9) | 59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) |
|
MP4 ¹ ² / 59.94Hz / APS-C / PIXEL/PIXEL | [4K] 3840x2160 (16:9) | 59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) 29.97p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 23.98p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) |
[FHD] 1920x1080 (16:9) | 59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) |
|
MP4 ¹ ² / 50.00Hz / FULL | [4K] 3840x2160 (16:9) | 50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) 25.00p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) |
[FHD] 1920x1080 (16:9) | 50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) |
|
MP4 ¹ ² / 50.00Hz / APS-C / PIXEL/PIXEL | [4K] 3840x2160 (16:9) | 50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) 25.00p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) |
[FHD] 1920x1080 (16:9) | 50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) |
|
ProRes ¹ ² ³ / 59.94Hz / FULL | [5.8K] 5760x3040 (17:9) | 29.97p, 1.9Gbps (ProRes 422 HQ) (LPCM) 29.97p, 1.3Gbps (ProRes 422) (LPCM) 23.98p, 1.5Gbps (ProRes 422 HQ) (LPCM) 23.98p, 1.0Gbps (ProRes 422) (LPCM) |
[4.8K] 4800x3600 (4:3) | 29.97p, 1.9Gbps (ProRes 422 HQ) (LPCM) 29.97p, 1.3Gbps (ProRes 422) (LPCM) 23.98p, 1.5Gbps (ProRes 422 HQ) (LPCM) 23.98p, 1.0Gbps (ProRes 422) (LPCM) |
|
[C4K] 4096x2160 (17:9) | 59.94p, 1.9Gbps (ProRes 422 HQ) (LPCM) &sup4; 59.94p, 1.3Gbps (ProRes 422) (LPCM) &sup4; 29.97p, 972Mbps (ProRes 422 HQ) (LPCM) &sup4; 29.97p, 648Mbps (ProRes 422) (LPCM) &sup4; 23.98p, 778Mbps (ProRes 422 HQ) (LPCM) &sup4; 23.98p, 519Mbps (ProRes 422) (LPCM) &sup4; |
|
[Cs4K] 4096x1728 (2.4:1) | 59.94p, 1.6Gbps (ProRes 422 HQ) (LPCM) &sup4; 59.94p, 1.0Gbps (ProRes 422) (LPCM) &sup4; 29.97p, 778Mbps (ProRes 422 HQ) (LPCM) &sup4; 29.97p, 519Mbps (ProRes 422) (LPCM) &sup4; 23.98p, 622Mbps (ProRes 422 HQ) (LPCM) &sup4; 23.98p, 415Mbps (ProRes 422) (LPCM) &sup4; |
|
[4K] 3840x2160 (16:9) | 59.94p, 1.8Gbps (ProRes 422 HQ) (LPCM) &sup4; 59.94p, 1.2Gbps (ProRes 422) (LPCM) &sup4; 29.97p, 911Mbps (ProRes 422 HQ) (LPCM) &sup4; 29.97p, 608Mbps (ProRes 422) (LPCM) &sup4; 23.98p, 729Mbps (ProRes 422 HQ) (LPCM) &sup4; 23.98p, 486Mbps (ProRes 422) (LPCM) &sup4; |
|
[FHD] 1920x1080 (16:9) | 119.88p, 901Mbps (ProRes 422 HQ) (LPCM) 119.88p, 601Mbps (ProRes 422) (LPCM) 59.94p, 454Mbps (ProRes 422 HQ) (LPCM) &sup4; 59.94p, 302Mbps (ProRes 422) (LPCM) &sup4; 29.97p, 227Mbps (ProRes 422 HQ) (LPCM) &sup4; 29.97p, 151Mbps (ProRes 422) (LPCM) &sup4; 23.98p, 181Mbps (ProRes 422 HQ) (LPCM) &sup4; 23.98p, 121Mbps (ProRes 422) (LPCM) &sup4; |
|
ProRes ¹ ² ³ / 59.94Hz / PIXEL/PIXEL | [5.8K] 5760x3040 (17:9) | 29.97p, 4.2Gbps (ProRes RAW HQ) (LPCM) 29.97p, 2.8Gbps (ProRes RAW) (LPCM) 23.98p, 3.4Gbps (ProRes RAW HQ) (LPCM) 23.98p, 2.2Gbps (ProRes RAW) (LPCM) |
[4.8K] 4800x3600 (4:3) | 29.97p, 1.9Gbps (ProRes 422 HQ) (LPCM) 29.97p, 1.3Gbps (ProRes 422) (LPCM) 23.98p, 1.5Gbps (ProRes 422 HQ) (LPCM) 23.98p, 1.0Gbps (ProRes 422) (LPCM) |
|
[C4K] 4096x2160 (17:9) | 59.94p, 4.2Gbps (ProRes RAW HQ) (LPCM) &sup4; 59.94p, 2.8Gbps (ProRes RAW) (LPCM) &sup4; 29.97p, 2.1Gbps (ProRes RAW HQ) (LPCM) &sup4; 29.97p, 1.4Gbps (ProRes RAW) (LPCM) &sup4; 23.98p, 1.7Gbps (ProRes RAW HQ) (LPCM) &sup4; 23.98p, 1.1Gbps (ProRes RAW) (LPCM) &sup4; |
|
ProRes ¹ ² ³ / 59.94Hz / APS-C / PIXEL/PIXEL | [3.3K] 3328x2496 (4:3) | 59.94p, 1.8Gbps (ProRes 422 HQ) (LPCM) 59.94p, 1.2Gbps (ProRes 422) (LPCM) 29.97p, 913Mbps (ProRes 422 HQ) (LPCM) 29.97p, 609Mbps (ProRes 422) (LPCM) 23.98p, 730Mbps (ProRes 422 HQ) (LPCM) 23.98p, 487Mbps (ProRes 422) (LPCM) |
[C4K] 4096x2160 (17:9) | 59.94p, 1.9Gbps (ProRes 422 HQ) (LPCM) &sup4; 59.94p, 1.3Gbps (ProRes 422) (LPCM) &sup4; 29.97p, 972Mbps (ProRes 422 HQ) (LPCM) &sup4; 29.97p, 648Mbps (ProRes 422) (LPCM) &sup4; 23.98p, 778Mbps (ProRes 422 HQ) (LPCM) &sup4; 23.98p, 519Mbps (ProRes 422) (LPCM) &sup4; |
|
[Cs4K] 4096x1728 (2.4:1) | 59.94p, 1.6Gbps (ProRes 422 HQ) (LPCM) &sup4; 59.94p, 1.0Gbps (ProRes 422) (LPCM) &sup4; 29.97p, 778Mbps (ProRes 422 HQ) (LPCM) &sup4; 29.97p, 519Mbps (ProRes 422) (LPCM) &sup4; 23.98p, 622Mbps (ProRes 422 HQ) (LPCM) &sup4; 23.98p, 415Mbps (ProRes 422) (LPCM) &sup4; |
|
[4K] 3840x2160 (16:9) | 59.94p, 1.8Gbps (ProRes 422 HQ) (LPCM) &sup4; 59.94p, 1.2Gbps (ProRes 422) (LPCM) &sup4; 29.97p, 911Mbps (ProRes 422 HQ) (LPCM) &sup4; 29.97p, 608Mbps (ProRes 422) (LPCM) &sup4; 23.98p, 729Mbps (ProRes 422 HQ) (LPCM) &sup4; 23.98p, 486Mbps (ProRes 422) (LPCM) &sup4; |
|
[FHD] 1920x1080 (16:9) | 119.88p, 901Mbps (ProRes 422 HQ) (LPCM) 119.88p, 601Mbps (ProRes 422) (LPCM) 59.94p, 454Mbps (ProRes 422 HQ) (LPCM) &sup4; 59.94p, 302Mbps (ProRes 422) (LPCM) &sup4; 29.97p, 227Mbps (ProRes 422 HQ) (LPCM) &sup4; 29.97p, 151Mbps (ProRes 422) (LPCM) &sup4; 23.98p, 181Mbps (ProRes 422 HQ) (LPCM) &sup4; 23.98p, 121Mbps (ProRes 422) (LPCM) &sup4; |
|
ProRes ¹ ² ³ / 50.00Hz / FULL | [5.8K] 5760x3040 (17:9) | 25.00p, 1.6Gbps (ProRes 422 HQ) (LPCM) 25.00p, 1.1Gbps (ProRes 422) (LPCM) |
[4.8K] 4800x3600 (4:3) | 25.00p, 1.6Gbps (ProRes 422 HQ) (LPCM) 25.00p, 1.1Gbps (ProRes 422) (LPCM) |
|
[C4K] 4096x2160 (17:9) | 50.00p, 1.6Gbps (ProRes 422 HQ) (LPCM) &sup4; 50.00p, 1.1Gbps (ProRes 422) (LPCM) &sup4; 25.00p, 811Mbps (ProRes 422 HQ) (LPCM) &sup4; 25.00p, 541Mbps (ProRes 422) (LPCM) &sup4; |
|
[Cs4K] 4096x1728 (2.4:1) | 50.00p, 1.3Gbps (ProRes 422 HQ) (LPCM) &sup4; 50.00p, 865Mbps (ProRes 422) (LPCM) &sup4; 25.00p, 649Mbps (ProRes 422 HQ) (LPCM) &sup4; 25.00p, 433Mbps (ProRes 422) (LPCM) &sup4; |
|
[4K] 3840x2160 (16:9) | 50.00p, 1.5Gbps (ProRes 422 HQ) (LPCM) &sup4; 50.00p, 1.0Gbps (ProRes 422) (LPCM) &sup4; 25.00p, 760Mbps (ProRes 422 HQ) (LPCM) &sup4; 25.00p, 507Mbps (ProRes 422) (LPCM) &sup4; |
|
[FHD] 1920x1080 (16:9) | 100.00p, 757Mbps (ProRes 422 HQ) (LPCM) 100.00p, 505Mbps (ProRes 422) (LPCM) 50.00p, 378Mbps (ProRes 422 HQ) (LPCM) &sup4; 50.00p, 252Mbps (ProRes 422) (LPCM) &sup4; 25.00p, 189Mbps (ProRes 422 HQ) (LPCM) &sup4; 25.00p, 126Mbps (ProRes 422) (LPCM) &sup4; |
|
ProRes ¹ ² ³ / 50.00Hz / PIXEL/PIXEL | [5.8K] 5760x3040 (17:9) | 25.00p, 3.5Gbps (ProRes RAW HQ) (LPCM) 25.00p, 2.3Gbps (ProRes RAW) (LPCM) |
[4.8K] 4800x3600 (4:3) | 25.00p, 1.6Gbps (ProRes 422 HQ) (LPCM) 25.00p, 1.1Gbps (ProRes 422) (LPCM) |
|
[C4K] 4096x2160 (17:9) | 50.00p, 3.5Gbps (ProRes RAW HQ) (LPCM) &sup4; 50.00p, 2.4Gbps (ProRes RAW) (LPCM) &sup4; 25.00p, 1.8Gbps (ProRes RAW HQ) (LPCM) &sup4; 25.00p, 1.2Gbps (ProRes RAW) (LPCM) &sup4; |
|
ProRes ¹ ² ³ / 50.00Hz / APS-C / PIXEL/PIXEL | [3.3K] 3328x2496 (4:3) | 50.00p, 1.5Gbps (ProRes 422 HQ) (LPCM) 50.00p, 1.0Gbps (ProRes 422) (LPCM) 25.00p, 761Mbps (ProRes 422 HQ) (LPCM) 25.00p, 508Mbps (ProRes 422) (LPCM) |
[C4K] 4096x2160 (17:9) | 50.00p, 1.6Gbps (ProRes 422 HQ) (LPCM) &sup4; 50.00p, 1.1Gbps (ProRes 422) (LPCM) &sup4; 25.00p, 811Mbps (ProRes 422 HQ) (LPCM) &sup4; 25.00p, 541Mbps (ProRes 422) (LPCM) &sup4; |
|
[Cs4K] 4096x1728 (2.4:1) | 50.00p, 1.3Gbps (ProRes 422 HQ) (LPCM) &sup4; 50.00p, 865Mbps (ProRes 422) (LPCM) &sup4; 25.00p, 649Mbps (ProRes 422 HQ) (LPCM) &sup4; 25.00p, 433Mbps (ProRes 422) (LPCM) &sup4; |
|
[4K] 3840x2160 (16:9) | 50.00p, 1.5Gbps (ProRes 422 HQ) (LPCM) &sup4; 50.00p, 1.0Gbps (ProRes 422) (LPCM) &sup4; 25.00p, 760Mbps (ProRes 422 HQ) (LPCM) &sup4; 25.00p, 507Mbps (ProRes 422) (LPCM) &sup4; |
|
[FHD] 1920x1080 (16:9) | 100.00p, 757Mbps (ProRes 422 HQ) (LPCM) 100.00p, 505Mbps (ProRes 422) (LPCM) 50.00p, 378Mbps (ProRes 422 HQ) (LPCM) &sup4; 50.00p, 252Mbps (ProRes 422) (LPCM) &sup4; 25.00p, 189Mbps (ProRes 422 HQ) (LPCM) &sup4; 25.00p, 126Mbps (ProRes 422) (LPCM) &sup4; |
|
ProRes ¹ ² ³ / 24.00Hz / FULL | [5.8K] 5760x3040 (17:9) | 24.00p, 1.5Gbps (ProRes 422 HQ) (LPCM) 24.00p, 1.0Gbps (ProRes 422) (LPCM) |
[4.8K] 4800x3600 (4:3) | 24.00p, 1.5Gbps (ProRes 422 HQ) (LPCM) 24.00p, 1.0Gbps (ProRes 422) (LPCM) |
|
[C4K] 4096x2160 (17:9) | 24.00p, 779Mbps (ProRes 422 HQ) (LPCM) &sup4; 24.00p, 519Mbps (ProRes 422) (LPCM) &sup4; |
|
[Cs4K] 4096x1728 (2.4:1) | 24.00p, 623Mbps (ProRes 422 HQ) (LPCM) &sup4; 24.00p, 415Mbps (ProRes 422) (LPCM) &sup4; |
|
[4K] 3840x2160 (16:9) | 24.00p, 730Mbps (ProRes 422 HQ) (LPCM) &sup4; 24.00p, 487Mbps (ProRes 422) (LPCM) &sup4; |
|
[FHD] 1920x1080 (16:9) | 120.00p, 908Mbps (ProRes 422 HQ) (LPCM) 120.00p, 606Mbps (ProRes 422) (LPCM) 24.00p, 182Mbps (ProRes 422 HQ) (LPCM) &sup4; 24.00p, 121Mbps (ProRes 422) (LPCM) &sup4; |
|
ProRes ¹ ² ³ / 24.00Hz / PIXEL/PIXEL | [5.8K] 5760x3040 (17:9) | 24.00p, 3.4Gbps (ProRes RAW HQ) (LPCM) 24.00p, 2.2Gbps (ProRes RAW) (LPCM) |
[4.8K] 4800x3600 (4:3) | 24.00p, 1.5Gbps (ProRes 422 HQ) (LPCM) 24.00p, 1.0Gbps (ProRes 422) (LPCM) |
|
[C4K] 4096x2160 (17:9) | 24.00p, 1.7Gbps (ProRes RAW HQ) (LPCM) &sup4; 24.00p, 1.1Gbps (ProRes RAW) (LPCM) &sup4; |
|
ProRes ¹ ² ³ / 24.00Hz / APS-C / PIXEL/PIXEL | [3.3K] 3328x2496 (4:3) | 24.00p, 731Mbps (ProRes 422 HQ) (LPCM) 24.00p, 487Mbps (ProRes 422) (LPCM) |
[C4K] 4096x2160 (17:9) | 24.00p, 779Mbps (ProRes 422 HQ) (LPCM) &sup4; 24.00p, 519Mbps (ProRes 422) (LPCM) &sup4; |
|
[Cs4K] 4096x1728 (2.4:1) | 24.00p, 623Mbps (ProRes 422 HQ) (LPCM) &sup4; 24.00p, 415Mbps (ProRes 422) (LPCM) &sup4; |
|
[4K] 3840x2160 (16:9) | 24.00p, 730Mbps (ProRes 422 HQ) (LPCM) &sup4; 24.00p, 487Mbps (ProRes 422) (LPCM) &sup4; |
|
[FHD] 1920x1080 (16:9) | 120.00p, 908Mbps (ProRes 422 HQ) (LPCM) 120.00p, 606Mbps (ProRes 422) (LPCM) 24.00p, 182Mbps (ProRes 422 HQ) (LPCM) &sup4; 24.00p, 121Mbps (ProRes 422) (LPCM) &sup4; |
|
SLOW & QUICK | ||
MOV ¹ ² / 59.94Hz / FULL | [6K] 5952x2512 (2.4:1) | 29.97p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 23.98p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) |
[5.9K] 5888x3312 (16:9) | 29.97p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 23.98p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) |
|
[5.8K] 5760x3040 (17:9) | 29.97p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 23.98p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) |
|
[5.1K] 5088x3392 (3:2) | 29.97p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 23.98p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) |
|
[C4K] 4096x2160 (17:9) | 59.94p (Maximum output of sensor is 75fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; 29.97p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 29.97p (Maximum output of sensor is 75fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; 23.98p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 23.98p (Maximum output of sensor is 75fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; |
|
[Cs4K] 4096x1728 (2.4:1) | 59.94p (Maximum output of sensor is 120fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; 29.97p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 29.97p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; 23.98p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 23.98p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; |
|
[4K] 3840x2160 (16:9) | 59.94p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; 29.97p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 29.97p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; 23.98p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 23.98p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; |
|
[FHD] 1920x1080 (16:9) | 59.94p (Maximum output of sensor is 240fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; *The angle of view narrows if you select a frame rate of 240. 59.94p (Maximum output of sensor is 240fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; *The angle of view narrows if you select a frame rate of 240. 29.97p (Maximum output of sensor is 240fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; *The angle of view narrows if you select a frame rate of 240. 29.97p (Maximum output of sensor is 240fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; *The angle of view narrows if you select a frame rate of 240. 23.98p (Maximum output of sensor is 240fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; *The angle of view narrows if you select a frame rate of 240. 23.98p (Maximum output of sensor is 240fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; *The angle of view narrows if you select a frame rate of 240. |
|
MOV ¹ ² / 59.94Hz / APS-C | [C4K] 4096x2160 (17:9) | 59.94p (Maximum output of sensor is 120fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; 29.97p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 29.97p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; 23.98p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 23.98p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; |
[Cs4K] 4096x1728 (2.4:1) | 59.94p (Maximum output of sensor is 120fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; 29.97p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 29.97p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; 23.98p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 23.98p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; |
|
[4K] 3840x2160 (16:9) | 59.94p (Maximum output of sensor is 120fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; 29.97p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 29.97p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; 23.98p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 23.98p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; |
|
[FHD] 1920x1080 (16:9) | 59.94p (Maximum output of sensor is 180fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; *The angle of view narrows if you select a frame rate of 180. 59.94p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; *The angle of view narrows if you select a frame rate of 180. 29.97p (Maximum output of sensor is 180fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; *The angle of view narrows if you select a frame rate of 180. 29.97p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; *The angle of view narrows if you select a frame rate of 180. 23.98p (Maximum output of sensor is 180fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; *The angle of view narrows if you select a frame rate of 180. 23.98p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; *The angle of view narrows if you select a frame rate of 180. |
|
MOV ¹ ² / 50.00Hz / FULL | [6K] 5952x2512 (2.4:1) | 25.00p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) |
[5.9K] 5888x3312 (16:9) | 25.00p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
[5.8K] 5760x3040 (17:9) | 25.00p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
[5.1K] 5088x3392 (3:2) | 25.00p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
[C4K] 4096x2160 (17:9) | 50.00p (Maximum output of sensor is 75fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; 25.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 25.00p (Maximum output of sensor is 75fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; |
|
[Cs4K] 4096x1728 (2.4:1) | 50.00p (Maximum output of sensor is 120fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; 25.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 25.00p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; |
|
[4K] 3840x2160 (16:9) | 50.00p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; 25.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 25.00p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; |
|
[FHD] 1920x1080 (16:9) | 50.00p (Maximum output of sensor is 240fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; *The angle of view narrows if you select a frame rate of 240. 50.00p (Maximum output of sensor is 240fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; *The angle of view narrows if you select a frame rate of 240. 25.00p (Maximum output of sensor is 240fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; *The angle of view narrows if you select a frame rate of 240. 25.00p (Maximum output of sensor is 240fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; *The angle of view narrows if you select a frame rate of 240. |
|
MOV ¹ ² / 50.00Hz / APS-C | [C4K] 4096x2160 (17:9) | 50.00p (Maximum output of sensor is 120fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; 25.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 25.00p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; |
[Cs4K] 4096x1728 (2.4:1) | 50.00p (Maximum output of sensor is 120fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; 25.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 25.00p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; |
|
[4K] 3840x2160 (16:9) | 50.00p (Maximum output of sensor is 120fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; 25.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 25.00p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; |
|
[FHD] 1920x1080 (16:9) | 50.00p (Maximum output of sensor is 180fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; *The angle of view narrows if you select a frame rate of 150 or more. 50.00p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; *The angle of view narrows if you select a frame rate of 150 or more. 25.00p (Maximum output of sensor is 180fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; *The angle of view narrows if you select a frame rate of 150 or more. 25.00p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; *The angle of view narrows if you select a frame rate of 150 or more. |
|
MOV ¹ ² / 24.00Hz / FULL | [6K] 5952x2512 (2.4:1) | 24.00p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) |
[5.9K] 5888x3312 (16:9) | 24.00p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
[5.8K] 5760x3040 (17:9) | 24.00p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
[5.1K] 5088x3392 (3:2) | 24.00p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) | |
[C4K] 4096x2160 (17:9) | 24.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 24.00p (Maximum output of sensor is 75fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; |
|
[Cs4K] 4096x1728 (2.4:1) | 24.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 24.00p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; |
|
[4K] 3840x2160 (16:9) | 24.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 24.00p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; |
|
[FHD] 1920x1080 (16:9) | 24.00p (Maximum output of sensor is 240fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; *The angle of view narrows if you select a frame rate of 240. 24.00p (Maximum output of sensor is 240fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; *The angle of view narrows if you select a frame rate of 240. |
|
MOV ¹ ² / 24.00Hz / APS-C | [C4K] 4096x2160 (17:9) | 24.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 24.00p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; |
[Cs4K] 4096x1728 (2.4:1) | 24.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 24.00p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; |
|
[4K] 3840x2160 (16:9) | 24.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; 24.00p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; |
|
[FHD] 1920x1080 (16:9) | 24.00p (Maximum output of sensor is 180fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) &sup4; *The angle of view narrows if you select a frame rate of 150 or more. 24.00p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) &sup4; *The angle of view narrows if you select a frame rate of 150 or more. |
|
HDMI RAW DATA OUTPUT | ||
Compatible external devices | Blackmagic Video Assist 5" 12G HDR, Blackmagic Video Assist 7" 12G HDR *DaVinci Resolve or DaVinci Resolve Studio is required to play back and DaVinci Resolve Studio to edit Blackmagic RAW data. *Please refer to the Blackmagic Design website for the information on the corresponding firmware version of Blackmagic Video Assist 5” 12G HDR and Blackmagic Video Assist 7” 12G HDR. *All functions may not be available depending on the situation. *When recording in C4K 120p/100p, 4.8K 60p/50p or 5.7K 60p/50p, constant bitrate 5:1 or less is recommended for SSD recording and 8:1 or less for SD card recording. ATOMOS devices "Ninja V" / "Ninja V+" / "Ninja" / "Ninja Ultra" / "Shogun" / "Shogun Ultra" / "Shogun Connect" *All functions may not be available depending on the situation. *Please check for compatible firmware versions of external recorders. *"Ninja V" "Ninja" "Shogun" does not support some RAW video data. *Software that supports Apple ProRes RAW is required to edit RAW video recorded. *A LUT (Lookup table) exclusively designed for RAW video is available on the customer support website to make the same colour grading as V-Log/V-Gamut. |
|
59.94Hz / FULL | [6K] 6000x4000 (3:2) | 29.97p (LPCM) &sup4; 23.98p (LPCM) &sup4; |
[5.9K] 5888x3312 (16:9) | 29.97p (LPCM) &sup4; 23.98p (LPCM) &sup4; |
|
[5.7K] 5728x3024 (17:9) | 59.94p (LPCM) &sup4; 29.97p (LPCM) &sup4; 23.98p (LPCM) &sup4; |
|
59.94Hz / PIXEL/PIXEL | [4.8K] 4800x3600 (4:3) | 59.94p (LPCM) &sup4; 29.97p (LPCM) &sup4; 23.98p (LPCM) &sup4; |
[C4K] 4096x2160 (17:9) | 119.88p (LPCM) 59.94p (LPCM) &sup4; 29.97p (LPCM) &sup4; 23.98p (LPCM) &sup4; |
|
59.94Hz / APS-C | [3.5K] 3536x2656 (4:3) | 59.94p (LPCM) &sup4; 29.97p (LPCM) &sup4; 23.98p (LPCM) &sup4; |
50.00Hz / FULL | [6K] 6000x4000 (3:2) | 25.00p (LPCM) &sup4; |
[5.9K] 5888x3312 (16:9) | 25.00p (LPCM) &sup4; | |
[5.7K] 5728x3024 (17:9) | 50.00p (LPCM) &sup4; 25.00p (LPCM) &sup4; |
|
50.00Hz / PIXEL/PIXEL | [4.8K] 4800x3600 (4:3) | 50.00p (LPCM) &sup4; 25.00p (LPCM) &sup4; |
[C4K] 4096x2160 (17:9) | 100.00p (LPCM) 50.00p (LPCM) &sup4; 25.00p (LPCM) &sup4; |
|
50.00Hz / APS-C | [3.5K] 3536x2656 (4:3) | 50.00p (LPCM) &sup4; 25.00p (LPCM) &sup4; |
EXTERNAL USB-SSD RECORDING | ||
Compatible | Yes (ON / OFF) | |
STREAMING | ||
Wi-Fi / Protocol | RTMPS | |
Wi-Fi / 59.94Hz | [FHD] 1920x1080 | 59.94p, 8Mbps (H.264) 29.97p, 6Mbps / 3Mbps (H.264) |
[HD] 1280x720 | 59.94p, 6Mbps (H.264) 29.97p, 4Mbps (H.264) |
|
Wi-Fi / 50.00Hz | [FHD] 1920x1080 | 50.00p, 8Mbps (H.264) 25.00p, 6Mbps / 3Mbps (H.264) |
[HD] 1280x720 | 50.00p, 6Mbps (H.264) 25.00p, 4Mbps (H.264) |
|
USB Tethering / Protocol | RTMPS | |
USB Tethering / 59.94Hz | [4K] 3840x2160 | 29.97p, 12.5Mbps (H.264) |
[FHD] 1920x1080 | 59.94p, 16Mbps / 8Mbps (H.264) 29.97p, 6Mbps / 3Mbps (H.264) |
|
[HD] 1280x720 | 59.94p, 6Mbps (H.264) 29.97p, 4Mbps (H.264) |
|
USB Tethering / 50.00Hz | [4K] 3840x2160 | 25.00, 12.5Mbps (H.264) |
[FHD] 1920x1080 | 50.00p, 16Mbps / 8Mbps (H.264) 25.00p, 6Mbps / 3Mbps (H.264) |
|
[HD] 1280x720 | 50.00p, 6Mbps (H.264) 25.00p, 4Mbps (H.264) |
|
VIEWFINDER | ||
Type | OLED Live View Finder | |
Pixels | Approx. 5.76 million dots | |
Field of view / Magnification | Approx. 100% / Approx. 0.78x with 50 mm lens at infinity; -1.0 m-1, when the aspect ratio is set to 3:2 | |
Eye point / Diopter adjustment | Approx. 21 mm at infinity; -1.0 m-1 / -4.0 - +2.0 (dpt) | |
Eye sensor | Yes | |
Display speed | 120fps* / 60fps *During live view in photo recording mode. | |
REAR MONITOR | ||
Type | TFT LCD monitor with static touch control | |
Monitor size | Tilt free-angle, 3.0-inch (7.6cm), 3:2 aspect | |
Pixels | Approx. 1.84 million dots | |
Field of view | Approx. 100% | |
FOCUS &sup5; | ||
Type | Phase Detection AF system (779-point) / Contrast AF system (315-area) | |
DFD technology | Yes | |
Focus mode | AFS (Single) / AFC (Continuous) / MF | |
AF mode | Tracking / Full Area AF / Zone (Horizontal/Vertical) / Zone / 1-Area+ / 1-Area / Pinpoint *Automatic Detection can be turned ON to switch between Human / Animal / Car / Motorcycle/Bike / Train / Airplane. Except when Pinpoint is set. Target Parts can also be set. |
|
AF detective range | EV -6 - 18 (F1.4, ISO100 equivalent, AFS) | |
AF custom setting | AF Sensitivity, AF Area Switching Sensitivity, Moving Object Prediction | |
AF assist light | Yes | |
AF lock | Set the Fn button in custom menu to AF lock | |
Focus ring control | Nonlinear / Linear (90°/ 120°/ 150°/ 180°/ 210°/ 240°/ 270°/ 300°/ 330°/ 360°/ 720°/ 1080°/ Maximum) Direction of ring rotation: Forward and reverse selectable |
|
Others | AF-ON, AF-ON: Near Shift, AF-ON: Far Shift, Focus Limiter, Focus Peaking, Focus Frame Moving Speed, Focus/Shutter Priority, Focus Switching for Vert/Hor, AF/AE Lock Hold, AF+MF, MF Assist, MF Guide, Focus Ring Lock, Show/Hide AF Mode, AF-Point Scope, Shutter AF, Half Press Shutter, Quick AF, Eye Sensor AF, Loop Focus Frame, Enlarged Live Display (Video), AFS Behavior in Video Mode, Touch Shutter, Touch AF/AE Function, Touch Pad AF, Lens Focus Resume, AF Micro Adjustment | |
EXPOSURE CONTROL | ||
Light metering system | 1,728-zone multi-pattern sensing system | |
Light metering mode | Multiple / Center Weighted / Spot / Highlight Weighted | |
Metering range | EV0-18 (F2.0 lens, ISO100 equivalent) | |
Recording mode | Mode dial | Program AE (P) / Aperture Priority AE (A) / Shutter Priority AE (S) / Manual Exposure (M) / Custom 1, 2, 3, 4, 5 / Intelligent Auto |
Photo/Video/S&Q switch | Photo Mode / Video Mode / Slow&Quick Mode | |
Custom mode | The settings can be registered for each of the photo, video, and S&Q modes. | |
Exposure compensation | 1/3 EV step ±5EV (±3EV for motion picture) | |
Synchro scan | Still image / Motion picture | |
AE lock | Set the Fn button in custom menu to AE lock | |
ISO SENSITIVITY | ||
Still image | [Normal] | Auto / 50* / 100-51200 / 102400* / 204800* (1/3 or 1 EV step) *Extended ISO |
[V-Log] | Auto / 320* / 640-51200 (1/3 or 1 EV step) *Extended ISO |
|
Motion picture | [Normal] | When Dynamic Range Boost OFF: Auto / 50* / 100-51200 / 102400* / 204800* (1/3 or 1 EV step) When Dynamic Range Boost ON: Auto / 50* / 100-25600 (1/3 or 1 EV step) *Extended ISO |
[V-Log] | When Dynamic Range Boost OFF: Auto / 320* / 640-51200 (1/3 or 1 EV step) When Dynamic Range Boost ON: Auto / 500* / 1000-25600 (1/3 or 1 EV step) *Extended ISO |
|
[HLG] | When Dynamic Range Boost OFF: Auto / 400-51200 / 102400* / 204800* (1/3 or 1 EV step) When Dynamic Range Boost ON: Auto / 400-25600 (1/3 or 1 EV step) *Extended ISO |
|
Dual Native ISO | [Normal] | Auto (Base ISO 100 / 800): Auto / 50* / 100-51200 / 102400* / 204800* Low (Base ISO 100): Auto / 50* / 100-800 High (Base ISO 800): Auto / 400* / 800-51200 / 102400* / 204800* *Extended ISO |
[V-Log] | Auto (Base ISO 640 / 5000): Auto / 320* / 640-51200 Low (Base ISO 640): Auto / 320* / 640-5000 High (Base 5000): Auto / 2500* / 5000-51200 *Extended ISO |
|
[HLG] | Auto (Base ISO 400 / 3200): Auto / 400-51200 / 102400* / 204800* Low (Base ISO 400): Auto / 400-3200 High (Base ISO 3200): Auto / 3200-51200 / 102400* / 204800* *Extended ISO |
|
[Cinelike A2 / Cinelike D2 / Cinelike V2] | Auto (Base ISO 200 / 1600): Auto / 100* / 200-51200 / 102400* / 204800* Low (Base ISO 200): Auto / 100* / 200-1600 High (Base ISO 1600): Auto / 800* / 1600-51200 / 102400* / 204800* *Extended ISO |
|
IMAGE STABILIZATION SYSTEM | ||
B.I.S. | 5-axis | Center: 8.0-stop / Periphery: 7.0-stop *Based on the CIPA 2024 standard [Yaw/Pitch/Roll direction: focusing distance f=60mm when S-R2060 is used.] |
Dual I.S. 2 | 5-axis | Center: 7.0-stop / Periphery: 7.0-stop *Based on the CIPA 2024 standard [Yaw/Pitch/Roll direction: focusing distance f=105mm when S-R24105 is used.] |
WHITE BALANCE | ||
White balance | AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2, 3, 4 / Colour temperature setting 1, 2, 3, 4 AI-AWB can be set when RAW processing. |
|
White balance adjustment | Blue/Amber bias, Magenta/Green bias | |
Colour temperature setting | 2500-10000K in 100K | |
SHUTTER | ||
Type | Focal-plane shutter | |
Silent mode / Shutter type | Yes / Yes (Auto / Mechanical / Electronic front curtain / Electronic / Electronic+NR) | |
Shutter speed | Still image: Bulb (Max. 30 minutes), 1/8,000 - 60 Electronic front curtain shutter: Bulb (Max. 30 minutes), 1/2,000 - 60 Electronic shutter: Bulb (Max. 60 sec), 1/16,000 - 60 Motion picture: 1/16,000 - 1/25* (Dynamic Range Boost OFF) Motion picture: 1/6,400 - 1/25* (Dynamic Range Boost ON) Motion picture M mode / MF mode: 1/16,000 - 1/25* (Dynamic Range Boost OFF) Motion picture M mode / MF mode: 1/6,400 - 1/25* (Dynamic Range Boost ON) *Can be set up to 1/2 of a second when exposure is M and focus mode is MF in video mode. |
|
Self timer | 10sec, 3 images / 2sec / 10sec / Custom Time | |
Remote control | Remote control by DMW-RS2 (sold separately) | |
BRACKET | ||
AE bracket | 3, 5, 7 images in 1/3, 2/3 or 1 EV step, max. ±3 EV, single/burst | |
Aperture bracket | 3, 5 or all positions | |
Focus bracket | Yes | |
White balance bracket | 3 images in blue/amber axis or in magenta/green axis, colour temperature setting | |
BURST SHOOTING | ||
Burst speed | Mechanical shutter / Electronic front curtain shutter |
H Image Priority: 8 frames/sec (AFS/MF), 7 frames/sec (AFC) (with Live View) H Speed Priority: 10 frames/sec (AFS/MF), 8 frames/sec (AFC) (with Live View) H+ Image Priority: 8 frames/sec (AFC) H+ Speed Priority: 10 frames/sec (AFC) M: 5 frames/sec (AFS/AFC/MF) (with Live View) L: 2 frames/sec (AFS/AFC/MF) (with Live View) |
Electronic shutter | SH Image Priority: 60 frames/sec (AFS/AFC/MF) SH Speed Priority: 70 frames/sec (AFS/AFC/MF) SH PRE Image Priority: 60 frames/sec (AFS/AFC/MF) SH PRE Speed Priority: 70 frames/sec (AFS/AFC/MF) H: 10 frames/sec (AFS/MF), 8 frames/sec (AFC) (with Live View) H+ Image Priority: 9 frames/sec (AFC) H+ Speed Priority: 10 frames/sec (AFC) M: 5 frames/sec (AFS/AFC/MF) (with Live View) L: 2 frames/sec (AFS/AFC/MF) (with Live View) |
|
Number of recordable images | H/H+/M/L* RAW+JPEG: More than 200 images RAW: More than 200 images JPEG: More than 300 images RAW+HEIF: More than 160 images HEIF: More than 180 images *Until the burst shooting speed slows. When recording is performed under the test conditions specified by Panasonic. *When using a card with SD Speed Class with "UHS-II UHS Speed Class 3 (U3)". SH RAW / RAW+JPEG / JPEG: 180 images RAW+HEIF / HEIF: 170 images |
|
FLASH | ||
Flash type | Sold separately | |
Synchronization speed | Less than 1/250 second *The guide number decreases at 1/250 second. Only when set to M mode or S mode. | |
Flash mode | Auto* / Auto/Red-eye Reduction* / Forced On / Forced On/Red-eye Reduction / Slow Sync. / Slow Sync./Red-eye Reduction / Forced Off *For iA only. | |
Flash output adjustment | 1/3EV step ±3EV | |
Flash synchronization | 1st Curtain Sync, 2nd Curtain Sync. | |
Wireless control | Yes (When using DMW-FL200L / FL360L / FL580L (sold separately)), Wireless Channel: 1ch/2ch/3ch/4ch | |
COLOUR SETTINGS | ||
Photo Style | Photo Style | Standard / Vivid / Natural / L. Classic Neo / Flat / Landscape / Portrait / Monochrome / L. Monochrome / L. Monochrome D / L. Monochrome S / LEICA Monochrome / Cinelike A2 / Cinelike D2 / Cinelike V2 / Like709 / V-Log / ARRI LogC3* / Standard (HLG)** / Monochrome (HLG)** / REAL TIME LUT / Like2100 (HLG) / Like2100 (HLG) Full Range*** / My Photo Style 1-4 (5-10)*** *Upgrade Software Key (DMW-SFU3A) is required. **This can be selected when HEIF format is set to HDR(HLG). ***Set to ON from Show/Hide Photo Style to select. |
Picture adjustment | Contrast / Highlight / Shadow / Saturation / Colour Tone / Hue / Filter Effect / Grain Effect / Colour Noise / Sharpness / Noise Reduction / Dual Native ISO / ISO / WB / LUT / LUT 1 / LUT 2 / LUT Opacity / LUT 1 Opacity / LUT 2 Opacity *Adjustable settings vary depending on the Photo Style mode, whether a LUT is applied, and the base Photo Style of the applied LUT. |
|
Filter | Expressive / Retro / Old Days / High Key / Low Key / Sepia / Cross Process / Bleach Bypass | |
LUT Library | Supported file types: .vlt, .cube Vlog_709 / Set 1-39 (Set 1-3: Sample LUT) *REAL TIME LUT in Photo Style, Apply LUT in Fn button, Apply LUT in RAW Processing, LUT View Assist in Log View Assist, LUT can be applied from these settings. |
|
ZOOM FUNCTION | ||
Hybrid zoom | Still image / Motion picture | |
Crop zoom | Still image / Motion picture | |
MOTION PICTURE FUNCTION | ||
Time lapse shot | Yes | |
Stop motion animation | Yes | |
Live cropping | Yes | |
SS/Gain operation | Shutter Duration/ISO / Angle/ISO / Shutter Duration/dB | |
Luminance level | 8-bit: 0-255 / 16-235 / 16-255 10-bit: 0-1023 / 64-940 / 64-1023 |
|
Master pedestal level | 31 steps | |
Colour bars / Test tone | Yes (SMPTE / EBU / ARIB) / Yes | |
LUT view assist | Monitor / HDMI | |
HLG view assist | Monitor (MODE1 / MODE2 / OFF) / HDMI (AUTO / MODE1 / MODE2 / OFF) | |
Anamorphic desqueeze display | 2.0x / 1.8x / 1.5x / 1.33x / 1.30x / OFF | |
False Colour | Yes | |
Wave form monitor / Vectorscope | Selectable | |
Knee control | Yes (in Like709 mode) | |
Other functions | Red REC Frame Indicator, Streaming Blue Frame Indicator | |
VERTICAL POSITION INFORMATION | ||
Recorded | Still image / Motion picture (ON/OFF) | |
LEVEL GAUGE | ||
Yes | ||
FUNCTION BUTTON | ||
REC | Exposure Comp. / Dual Native ISO Setting / Dynamic Range Boost / Sensitivity / White Balance / Photo Style / Apply LUT / REAL TIME LUT / Metering Mode / Aspect Ratio / Rec. File Format (Photo) / Switch JPEG/HEIF / JPEG/HEIF Picture Quality / HEIF Format / Picture Size / 1 Shot Spot Metering / Long Exposure NR / Min. Shutter Speed / 1 Shot RAW+JPG/1 Shot RAW+HEIF / i.Dynamic Range / Colour Shading Compensation / Filter Effect / One Push AE / Touch AE / AWB Lock / Exposure Control (Photo Mode) / Exposure Control (Video Mode) / Synchro Scan (Photo) / Synchro Scan (Video) / AF Mode / AF Detection Setting / Detecting Subject / AF Custom Setting (Photo) / AF Custom Setting (Video) / Focus Limiter / Focus Limiter Range Set / Focus Peaking / Focus Peaking Sensitivity / Focus Frame Moving Speed / Focus Ring Lock / AE LOCK / AF LOCK / AF/AE LOCK / AF-ON / AF-ON: Near Shift / AF-ON: Far Shift / AF-Point Scope / Focus Area Set / Enlarged Live Display (Video) / Flash Mode / Flash Adjust. / Wireless Flash Setup / Drive Mode Setting / Bracketing / Silent Mode / Image Stabilizer / Shutter Type / Hybrid Zoom (Photo) / Crop Zoom / Live View Composite / Rec. File Format (Video) / Rec Quality / Rec Quality (My List) / Proxy Recording / Slow & Quick Setting / Time Code Display / Audio Information / Sound Rec Level Disp. / Mute Sound Input / Sound Rec Level Adj. / Sound Rec Quality / Sound Rec Level Limiter / 4ch Audio Recording / XLR Mic Adaptor Setting / Sound Monitoring Channel / Image Stabilizer / E-Stabilization (Video) / Boost I.S. (Video) / Image Area of Video / Hybrid Zoom(Video) / Crop Zoom / Focus Transition / Live Cropping / Live Cropping Settings / Q.MENU / Rec/Playback Switch / Video Record / LVF/Monitor Switch / Dial Operation Switch / Preview / Preview Aperture Effect / Constant Preview / Level Gauge / Histogram / Luminance Spot Meter / Frame Marker / Photo Grid Line / Live View Boost / Monochrome Live View / Night Mode / LVF/Monitor Disp. Set / Image Flip (Monitor) / Zebra Pattern / LUT View Assist (Monitor) / LUT View Assist (HDMI) / LUT Select (LUT View Assist) / HLG View Assist (Monitor) / HLG View Assist (HDMI) / Sheer Overlay / I.S. Status Scope / False Colour / WFM/Vector Scope / Anamorphic Desqueeze Display / Colour Bars / Focus Ring Control / AF Micro Adjustment / Lens Information / Destination Card Slot / Streaming / Wi-Fi / Fan Mode / Save to Custom Mode / No Setting / Off (Disable Press and Hold) / Same Setting as Photo Mode / Restore to Default | |
PLAY | Magnify from AF Point / LUT View Assist (Monitor) / HLG View Assist (Monitor) / Anamorphic Desqueeze Display / RAW Processing / HEIF to JPEG Conversion / Delete Single / Protect / Rating 1, 2, 3, 4, 5 / Copy / Rec/Playback Switch / LVF/Monitor Switch / Video Record / Night Mode / Card Slot Change / Sound Monitoring Channel (Play) / Wi-Fi / Fan Mode / Send Image (Smartphone) / Send Images to Frame.io / LUT View Assist (HDMI) / HLG View Assist (HDMI) / No Setting / Off (Disable Press and Hold) / Restore to Default | |
INTERFACE | ||
USB | USB Type-C® (USB 10Gbps) | |
HDMI &sup6; | HDMI | HDMI TypeA Audio: ON / OFF, MP4: 2ch, MOV: 2ch (When [4ch Mic Input] is set to OFF.), 4ch (When [4ch Mic Input] is set to ON.) |
Monitor-through | 4:2:2 10bit (When [Rec Quality] is set to [4:2:2 10bit] or [4:2:0 10bit].) 4:2:2 8bit (When [Rec Quality] is set to [4:2:0 8bit].) Down Convert: Auto / C4K/4K / 1080p / 1080i / OFF |
|
Playback | 59.94Hz: C4K/120p / C4K/60p / C4K/30p / 4K/120p / 4K/60p / 4K/30p / 1080/120p / 1080p / 1080i / 720p* / 480p* 50.00Hz: C4K/100p / C4K/50p / C4K/25p / 4K/100p / 4K/50p / 4K/25p / 1080/100p / 1080p / 1080i / 720p* / 576p* 24.00Hz: C4K/120p / C4K/24p / 4K/120p / 4K/24p / 1080/120p / 1080p *Only for playback. |
|
Remote input | φ2.5mm | |
Audio | Build-in microphone | Stereo Wind Noise Canceller: OFF / Standard / High |
External microphone / External audio device input | φ3.5mm for external microphone / external audio device MIC (Plug-in Power) / MIC / LINE Wind Cut: OFF / Low / Standard / High *When attaching 3.5mm microphone (sold separately). Special Mic: Stereo / Shotgun *When attaching DMW-MS2 (sold separately). |
|
XLR microphone | Yes with DMW-XLR2 (sold separately) | |
4ch mic input | Yes with DMW-XLR2 (sold separately) | |
Speaker | Monaural | |
Headphone output | φ3.5mm | |
Card slot | Slot 1 | CFexpress Type B Card |
Slot 2 | SD Memory Card / SDHC Memory Card* / SDXC Memory Card* | |
*Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards. | ||
TC IN/OUT | ||
Count up | Rec Run / Free Run | |
Time code mode | Drop Frame / Non-Drop Frame (When system frequency [59.94Hz] is selected.) | |
HDMI time code output | ON / OFF | |
External TC setting | TC Synchronization via Bluetooth® | |
FAN | ||
Modes | Auto1 / Auto2 / Fast / Normal / Slow* / OFF** *SLOW setting cannot be used depending on the video recording quality. **OFF can not be set when in Video mode. |
|
LAMP | ||
Tally Lamp (front/rear) / Card Access Light / Charging Light/Network Connection Light | ||
WIRELESS | ||
Wi-Fi | 2.4GHz bands (STA/AP) (IEEE802.11b/g/n) 5GHz bands (STA/AP) (IEEE 802.11a/n/ac) Security: WPA/WPA2/WPA3 |
|
Bluetooth | Bluetooth® v5.0 (Bluetooth Low Energy (BLE)) | |
DUST AND SPLASH RESISTANT* | ||
Yes. *Dust and Splash Resistant does not guarantee that damage will not occur if this camera is subjected to direct contact with dust and water. |
||
POWER | ||
Battery | Li-ion Battery Pack (7.2V, 2200mAh, 16Wh) (bundled) USB power supply, USB power charging, USB power delivery |
|
Battery life (CIPA standard) | When using CFexpress Card | Approx. 350 images (rear monitor), 310 images (LVF), 1,000 images (Power Save LVF mode*) with S-R24105 / DMW-BLK22 *Using a Nextorage CFexpress Type B card. Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec. |
When using SD memory card | Approx. 360 images (rear monitor), 320 images (LVF), 1,150 images (Power Save LVF mode*) with S-R24105 / DMW-BLK22 *Using a Nextorage SDXC memory card. Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec. |
|
Continuous recordable time (Motion picture) (*¹) | When using CFexpress Card | MP4 [4K/60p (FULL)]: Approx. 90 min with S-R24105 MP4 [FHD/30p (FULL)]: Approx. 120 min with S-R24105 |
When using SD memory card | MP4 [4K/60p (FULL)]: Approx. 90 min with S-R24105 MP4 [FHD/30p (FULL)]: Approx. 130 min with S-R24105 |
|
Actual recordable time (Motion picture) (*¹) | When using CFexpress Card | MP4 [4K/60p (FULL)]: Approx. 45 min with S-R24105 MP4 [FHD/30p (FULL)]: Approx. 60 min with S-R24105 |
When using SD memory card | MP4 [4K/60p (FULL)]: Approx. 45 min with S-R24105 MP4 [FHD/30p (FULL)]: Approx. 65 min with S-R24105 |
|
Battery grip | DMW-BG2 (sold separately) | |
DIMENSIONS / WEIGHT | ||
Dimensions (W x H x D) | Approx. 134.3 x 102.3 x 91.8 mm / 5.29 x 4.03 x 3.61 inch (Body only, excluding protrusions) Approx. 134.3 x 102.3 x 187.8 mm / 5.29 x 4.03 x 7.40 inch (with S-R24105, excluding protrusions) |
|
Weight | Approx. 800g / 1.76 lb (Body, Hot Shoe Cover, Battery, SD Memory Card x 1) (excluding body cap) Approx. 718g / 1.58 lb (Body, Hot Shoe Cover) (excluding body cap) |
|
OPERATING ENVIRONMENT | ||
Operating temperature | -10℃ to 40℃ (14℉ to 104℉) ・The performance of the battery (number of pictures that can be taken/available recording time) may decrease temporarily at temperatures between -10℃ to 0℃ (14℉ to 32℉). ・When using in low temperatures (-10℃ to 0℃ (14℉ to 32℉)), attach a Panasonic lens with a minimum recommended operating temperature of -10℃ (14℉). |
|
Operating humidity | 10%RH to 80%RH | |
STANDARD ACCESSORIES | ||
Software | LUMIX Lab / LUMIX Flow ・This software is used to control a Panasonic digital camera from a smartphone. Check your phone's App Store to download and install the software. LUMIX Tether ・This software is used to control a Panasonic digital camera from a computer. It allows you to change various settings of the camera, perform remote recording, and save remotely recorded images to the PC. Check the Panasonic website to download and install the software. ・The software to process RAW file on computer is not bundled with this camera. To do this, SILKYPIX Developer Studio is available for download at Adwaa's website using computer connected to the Internet. |
|
Standard accessories | DC-S1M2 Kit | Battery Pack, Battery Charger, Shoulder Strap, Body Cap, Hot Shoe Cover, Cover for the Battery Grip Connector |
DC-S1M2M Kit | Battery Pack, Battery Charger, Shoulder Strap, Body Cap, Hot Shoe Cover, Cover for the Battery Grip Connector, Lens Cap, Lens Hood, Lens Rear Cap | |
*The Operating Instructions for advanced features is available for downloaded at Panasonic LUMIX Customer Support Site using PC, smartphone or tablet connected to the Internet. |
Notes
- About motion picture recording
- The cards that can be used for recording vary depending on the motion pictures bit rate and format type.
Motion pictures with 72Mbps or less: CFexpress card, SD memory card with SD Speed Class with Class 10 or Video Speed Class 10 or higher
Motion pictures with 200Mbps or less: CFexpress card, SD memory card with UHS-I / UHS-II UHS Speed Class 3 (U3) or Video Speed Class 30 or higher
Motion pictures with 400Mbps or less: CFexpress card, SD memory card with Video Speed Class 60 or higher
Motion pictures with 600Mbps or less: CFexpress card, SD memory card with Video Speed Class 90
Motion pictures with 800Mbps or more, S&Q video with ALL-Intra, ProRes in 3.3K or higher resolution, or ProRes in FHD at 100p or more: CFexpress card - A new file will be created to continue recording if the continuous recording time exceeds the following conditions.
Motion pictures with less than 72Mbps: 30 minutes
Motion pictures with 72Mbps or more: 3 hours 4 minutes - A new file will be created to continue recording if the file size exceeds the following conditions.
[MP4] in [FHD]: 4GB
[MP4] in [4K]: 96GB
[MOV] in 600Mbps or less: 192GB
[MOV] in 800Mbps: 640GB
[ProRes] in [5.8K] [4.8K] [C4K] [Cs4K] [4K] [3.3K]: 640GB - The recording time varies depending on the shooting format and the operating conditions. It will stop automatically once the internal temperature gets too high.
- The cards that can be used for recording vary depending on the motion pictures bit rate and format type.
- HLG is selectable in [4:2:2 10bit] or [4:2:0 10bit].
- High-res audio is selectable only when attaching Φ3.5mm microphone or DMW-XLR2 (sold separately).
- Proxy video recording is available.
- About AF
- Automatic Detection is not available for High Frame Rate video shooting above 3.3K 100p (C4K/Cs4K/4K/3.3K 100p/120p).
- Tracking and Automatic Detection are not available when using HDMI cable or USB connection cable for High Frame Rate video shooting above 4.8K (6K/5.9K/5.8K/5.1K/4.8K).
- Tracking are not available for burst shooting [H+].
- To output motion pictures with 4K or higher, use a Premium High Speed HDMI cable (Type A - Type A plug).
To output motion pictures with 4K 120p/100p, use an Ultra High Speed HDMI cable (Type A - Type A plug).
Lumix S1 Mark II E![]() This hybrid camera brings together LUMIX’s renowned colour science, uncompromising control inherited from the LUMIX S1RII and S1II, and reliable performance throughout the workflow. |
Lumix S1 Mark II![]() This hybrid model, with a new partially stacked CMOS sensor, captures stunning photos, smooth high-frame-rate video, and up to 15 stops of dynamic range*, preserving every moment with breathtaking detail. |
Lumix S1R Mark II![]() Hybrid model featuring a 44.3MP full-frame sensor and LUMIX's first-ever 8K video recording. Delivers outstanding still and video performance with excellent operability and reliability while streamlining creators' workflows. |
|
---|---|---|---|
Camera Mount | L-Mount | L-Mount | L-Mount |
Image Sensor Size | 35mm full-frame (35.8mm x 23.8mm) CMOS sensor | 35mm full-frame (35.8mm x 23.8mm) CMOS sensor | 35mm full-frame (35.8mm x 23.9mm) CMOS sensor |
Camera Effective Pixels | 24.2 | 24.1 | 44.3 |
Recording File Format | JPEG (DCF, Exif 3.0), RAW, HEIF MOV: H.264/MPEG-4 AVC, H.265/HEVC, Apple ProRes, Apple ProRes RAW MP4: H.264/MPEG-4 AVC, H.265/HEVC |
JPEG (DCF, Exif 3.0), RAW, HEIF MOV: H.264/MPEG-4 AVC, H.265/HEVC, Apple ProRes, Apple ProRes RAW MP4: H.264/MPEG-4 AVC, H.265/HEVC |
JPEG (DCF, Exif 3.0), RAW MOV: H.264/MPEG-4 AVC, H.265/HEVC, Apple ProRes, Apple ProRes RAW MP4: H.264/MPEG-4 AVC, H.265/HEVC |
4K Video Recording | ✔ | ✔ | ✔ |
Shutter Speed | Still image: Bulb (Max. 30 minutes), 1/8,000 - 60 Electronic front curtain shutter: Bulb (Max. 30 minutes), 1/2,000 - 60 Electronic shutter: Bulb (Max. 60 sec), 1/8,000 - 60 Motion picture: 1/16,000 - 1/25* *Can be set up to 1/2 of a second when exposure is M and focus mode is MF in video mode. |
Still image: Bulb (Max. 30 minutes), 1/8,000 - 60 Electronic front curtain shutter: Bulb (Max. 30 minutes), 1/2,000 - 60 Electronic shutter: Bulb (Max. 60 sec), 1/16,000 - 60 Motion picture: 1/16,000 - 1/25* (Dynamic Range Boost OFF) Motion picture: 1/6,400 - 1/25* (Dynamic Range Boost ON) Motion picture M mode / MF mode: 1/16,000 - 1/25* (Dynamic Range Boost OFF) Motion picture M mode / MF mode: 1/6,400 - 1/25* (Dynamic Range Boost ON) *Can be set up to 1/2 of a second when exposure is M and focus mode is MF in video mode. |
Still image: Bulb (Max. 30 minutes), 1/8,000 - 60 Electronic front curtain shutter: Bulb (Max. 30 minutes), 1/2,000 - 60 Electronic shutter Image Priority mode: Bulb (Max. 60 sec), 1/8,000 - 60 Electronic shutter Speed Priority mode: Bulb (Max. 60 sec), 1/16,000 - 60 Motion picture: 1/10,000 - 1/25* Motion picture M mode / MF mode: 1/10,000 - 1/2* *To set the shutter speed longer than the frame rate, please set Shutter Speed Limiter function to OFF. |
Burst Shooting | [Mechanical shutter/Electronic front curtain shutter] H Image Priority: 7 frames/sec (AFS/MF), 6 frames/sec (AFC) (with Live View) H Speed Priority: 10 frames/sec (AFS/MF), 8 frames/sec (AFC) (with Live View) H+ Image Priority: 7 frames/sec (AFC) H+ Speed Priority: 10 frames/sec (AFC) M: 5 frames/sec (AFS/AFC/MF) (with Live View) L: 2 frames/sec (AFS/AFC/MF) (with Live View) [Electronic shutter] SH: 30 frames/sec (AFS/AFC/MF) SH PRE: 30 frames/sec (AFS/AFC/MF) H Image Priority: 7 frames/sec (AFS/MF), 6 frames/sec (AFC) (with Live View) H Speed Priority: 10 frames/sec (AFS/MF), 8 frames/sec (AFC) (with Live View) H+ Image Priority: 7 frames/sec (AFC) H+ Speed Priority: 10 frames/sec (AFC) M: 5 frames/sec (AFS/AFC/MF) (with Live View) L: 2 frames/sec (AFS/AFC/MF) (with Live View) |
[Mechanical shutter/Electronic front curtain shutter] H Image Priority: 8 frames/sec (AFS/MF), 7 frames/sec (AFC) (with Live View) H Speed Priority: 10 frames/sec (AFS/MF), 8 frames/sec (AFC) (with Live View) H+ Image Priority: 8 frames/sec (AFC) H+ Speed Priority: 10 frames/sec (AFC) M: 5 frames/sec (AFS/AFC/MF) (with Live View) L: 2 frames/sec (AFS/AFC/MF) (with Live View) [Electronic shutter] SH Image Priority: 60 frames/sec (AFS/AFC/MF) SH Speed Priority: 70 frames/sec (AFS/AFC/MF) SH PRE Image Priority: 60 frames/sec (AFS/AFC/MF) SH PRE Speed Priority: 70 frames/sec (AFS/AFC/MF) H: 10 frames/sec (AFS/MF), 8 frames/sec (AFC) (with Live View) H+ Image Priority: 9 frames/sec (AFC) H+ Speed Priority: 10 frames/sec (AFC) M: 5 frames/sec (AFS/AFC/MF) (with Live View) L: 2 frames/sec (AFS/AFC/MF) (with Live View) |
[Mechanical shutter] H Image Priority: 9 frames/sec (AFS/MF), 7 frames/sec (AFC) (with Live View) H Speed Priority: 10 frames/sec (AFS/MF), 8 frames/sec (AFC) (with Live View) H+ Image Priority: 9 frames/sec (AFC) H+ Speed Priority: 10 frames/sec (AFC) M: 5 frames/sec (AFS/AFC/MF) (with Live View) L: 2 frames/sec (AFS/AFC/MF) (with Live View) [Electronic front curtain shutter] H Image Priority: 9 frames/sec (AFS/MF), 7 frames/sec (AFC) (with Live View) H Speed Priority: 10 frames/sec (AFS/MF), 8 frames/sec (AFC) (with Live View) H+ Image Priority: 9 frames/sec (AFC) H+ Speed Priority: 10 frames/sec (AFC) M: 5 frames/sec (AFS/AFC/MF) (with Live View) L: 2 frames/sec (AFS/AFC/MF) (with Live View) [Electronic shutter] SH: 40 frames/sec (AFS/AFC/MF) SH PRE: 40 frames/sec (AFS/AFC/MF) H Image Priority: 9 frames/sec (AFS/MF), 7 frames/sec (AFC) (with Live View) H Speed Priority: 10 frames/sec (AFS/MF), 8 frames/sec (AFC) (with Live View) H+ Image Priority: 9 frames/sec (AFC) H+ Speed Priority: 10 frames/sec (AFC) M: 5 frames/sec (AFS/AFC/MF) (with Live View) L: 2 frames/sec (AFS/AFC/MF) (with Live View) |
ISO Sensitivity |
[Still image] |
[Still image] |
[Still image] |
[Motion picture] V-Log: Auto / 320* / 640-51200 (1/3 or 1 EV step) HLG:Auto / 400-51200 / 102400* / 204800* (1/3 or 1 EV step) |
[Motion picture] V-Log: HLG: |
[Motion picture] V-Log: HLG: Auto / 320-51200 / 102400* (1/3 or 1 EV step) |
|
[Dual Native ISO] Yes |
[Dual Native ISO] Yes |
[Dual Native ISO] Yes |
|
*Extended ISO | |||
Image Stabilizer | ✔ | ✔ | ✔ |
Viewfinder | OLED Live View Finder, approx. 5.76 million dots | OLED Live View Finder, approx. 5.76 million dots | OLED Live View Finder, approx. 5.76 million dots |
Monitor | Tilt free-angle monitor with static touch control, approx. 1.84 million dots, 3.0-inch (7.6cm), 3:2 aspect | Tilt free-angle monitor with static touch control, approx. 1.84 million dots, 3.0-inch (7.6cm), 3:2 aspect | Tilt free-angle monitor with static touch control, approx. 1.84 million dots, 3.0-inch (7.6cm), 3:2 aspect |
Flash | External (Sold Separately) | External (Sold Separately) | External (Sold Separately) |
Microphone / Speaker | Stereo / Monaural | Stereo / Monaural | Stereo / Monaural |
Interface | USB socket (USB Type-C® (USB 10Gbps)) HDMI socket (HDMI TypeA) Remote socket φ2.5mm MIC jack φ3.5mm Headphone jack φ3.5mm Double card slot |
USB socket (USB Type-C® (USB 10Gbps)) HDMI socket (HDMI TypeA) Remote socket φ2.5mm MIC jack φ3.5mm Headphone jack φ3.5mm Double card slot |
USB socket (USB Type-C® (USB 10Gbps)) HDMI socket (HDMI TypeA) Remote socket φ2.5mm MIC jack φ3.5mm Headphone jack φ3.5mm Double card slot |
Wi-Fi | ✔ | ✔ | ✔ |
Bluetooth | ✔ | ✔ | ✔ |
Power Supply |
Li-ion Battery Pack (7.2V, 2200mAh, 16Wh) (bundled) USB power supply, USB power charging, USB power delivery |
Li-ion Battery Pack (7.2V, 2200mAh, 16Wh) (bundled) USB power supply, USB power charging, USB power delivery |
Li-ion Battery Pack (7.2V, 2200mAh, 16Wh) (bundled) USB power supply, USB power charging, USB power delivery |
Battery Life |
[When using CFexpress card] with S-R24105 / DMW-BLK22 [When using SD memory card] with S-R24105 / DMW-BLK22 |
[When using CFexpress card] with S-R24105 / DMW-BLK22 [When using SD memory card] with S-R24105 / DMW-BLK22 |
[When using CFexpress card] with S-R24105 / DMW-BLK22 [When using SD memory card] with S-R24105 / DMW-BLK22 |
*Using a Nextorage memory card. Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec. | |||
Dust and Splash Resistant | ✔ | ✔ | ✔ |
Dimensions | Approx. 134.3 x 102.3 x 91.8 mm / 5.29 x 4.03 x 3.61 inch (Body only, excluding protrusions) |
Approx. 134.3 x 102.3 x 91.8 mm / 5.29 x 4.03 x 3.61 inch (Body only, excluding protrusions) |
Approx. 134.3 x 91.8 x 102.3 mm / 5.29 x 3.61 x 4.03 inch (Body only, excluding protrusions) |
Weight |
Approx. 712g / 1.57 lb (Body, inc Hot Shoe Cover) Approx. 795g / 1.75 lb (Body, with Hot Shoe Cover, Battery, SD Memory Card x 1) |
Approx. 718g / 1.58 lb (Body, inc Hot Shoe Cover) Approx. 800g / 1.76 lb (Body, with Hot Shoe Cover, Battery, SD Memory Card x 1) |
Approx. 712g / 1.57 lb (Body, inc Hot Shoe Cover) Approx. 795g / 1.75 lb (Body, with Hot Shoe Cover, Battery, SD Memory Card x 1) |

Get a €300 discount off a qualifying Panasonic lens when bought in the same transaction as a qualifying Lumix S Camera.
This promotion is strictly subject to availability, and can only be applied to orders, layaways, or transactions where a qualifying camera and a qualifying lens appear on the same receipt, and when both are collected during the promotional period.
Offer valid from 13/05/2025 to 04/08/2025 (inclusive). Terms & Conditions Apply.
GET 5 YEAR EXTENDED WARRANTY FOR LUMIX FULL FRAME CAMERAS AND LENSES
Step 1 Purchase eligible LUMIX S series products from Conns Cameras | Step 2 Register your cameras and lenses in My Panasonic | Step 3 Enjoy 5 year extended warranty and focus on creation without any worries |
For the avoidance of doubt, this promotion is an extension of the standard Panasonic warranty to a total of 5 years (full details available at www.panasonic.co.uk/euguarantee)
Offer valid from 14/03/2025 to 31/03/2026 (inclusive). Claims can be made until 30/06/2026. Terms & Conditions Apply.Showcased Accessories







Share:
Share on Facebook Share on Twitter Share on Pinterest Tell a friend
