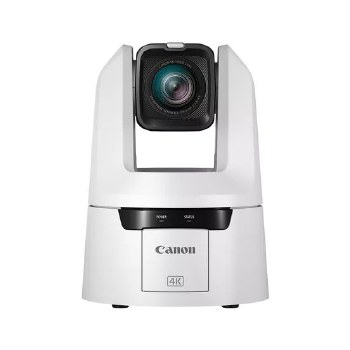

Canon CR-N500 White PTZ Camera

CLOSE THE DISTANCE WITH UNRIVALLED CLARITY

A dynamic PTZ camera aimed at productions and video streaming, the CR-N500 boasts a 1.0-type 4K UHD sensor and Dual Pixel CMOS AF, plus 15x optical zoom, smooth pan and tilt as well as image stabilisation to capture content in superb detail.

Camera

• Image Sensor

  Type 1.0 (1.0 in.) single-plate CMOS sensor

• Effective Pixels

  approx. 8.29 megapixels (3840 x 2160)

• Lens

  f=8.3 – 124.5 mm, F/2.8 – 4.5, 15x optical zoom, 9-bladed iris diaphragm

• Optical Zoom

  15x optical zoom

• Digital Zoom

  20x digital zoom

• Focal Length

  f=8.3 – 124.5 mm, F/2.8 – 4.5,
  35mm equivalent focal length: approx. 25.5 (W) – 382.5 mm (T)

• Angle of View

  Horizontal: 73.0 (W) – 5.7° (T)
  Vertical: 45.2° (W) – 3.2° (T)

• Minimum Subject Illumination

  3840 x 2160: Approx. 1.5 lux (shutter speed 1/30 sec., Frame Rate 29.97P, Gain 33.0 dB)
  1920 x 1080: Approx. 3 lux (shutter speed 1/60 sec., Frame Rate 59.94P, Gain 33.0 dB)

• Shutter Speed

  1/3 – 1/2000 sec. (specific values depend on the frame frequency and frame rate)

• Iris

  Manual/Automatic aperture

• Gain

  -6.0 db ～ 33.0 db

• ND Filter

  Built-in (Off, 1/4, 1/16, 1/64), motor operated

• White Balance

  AUTO (AWB), Set A, Set B, preset settings (daylight: 5,600 K*, tungsten lamp: 3,200 K*),
  color temperature setting (2,000 K – 15,000 K), Manual

  * Color temperatures are given for reference purposes only.

• Focus

  Focus mode: Manual, AF-boosted MF, Continuous AF, Face AF, Tracking
  AF type: Dual Pixel CMOS AF, Contrast AF

• Gamma

  Normal1 (Standard), Normal2 (x4.0), Normal3 (BT.709), Normal4 (x5.0), Wide DR, Canon Log 3

• Pan and Tilt

  Pan operation range: Horizontal ±170°
  Pan operation speed: 0.1° – 100°/sec.
  Tilt operation range: Vertical -30° – +90°
  Tilt operation speed: 0.1° – 100°/sec.

Pan and Tilt Operation

• Protocol

  XC (Canon's original), RTSP/RTP, NDI|HX, RTMP/RTMPS, Standard Communication (Serial), Standard Communication (IP), SRT, FreeD

Server

• Video Output Format: SDI

  1920 x 1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P (4:2:2 10 bit)
  1280 x 720: 59.94P, 50.00P (4:2:2 10 bit)
  – Same video format required for SDI and HDMI (cannot select different formats for
  SDI and HDMI)
  – When 3840 x 2160 is selected for HDMI, video will not be outputted to SDI.

• Video Output Format: HDMI

  3840 x 2160: 29.97P, 25.00P, 23.98P (4:2:2 10 bit)
  1920 x 1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P (4:2:2 10 bit)
  1280 x 720: 59.94P, 50.00P (4:2:2 10 bit)
  – Same video format required for SDI and HDMI (cannot select different formats for
  SDI and HDMI)
  – When 3840 x 2160 is selected for HDMI, video will not be outputted to SDI.

• Video Output Format: IP

  3840 x 2160: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
  1920 x 1080: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
  1280 x 720: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
  640 x 360: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
  – If 59.94/50.00 Hz is selected for the frame frequency, the 3840 x 2160 format cannot be selected.
  – A frame rate that exceeds the frame frequency cannot be selected.
  – JPEG has one pattern fixed depending on the frame frequency (format is fixed and cannot be selected)
  Resolution: 1280 x 720
  When frame frequency is 59.94/50.00 Hz: 14.99 fps, when frame frequency is 23.98 Hz: 11.99 fps, when frame frequency is 29.97/25.00 Hz: 12.50 fps

• Video Output Format: USB

  -

• Preset

  Number of presets: Max. 100 (including home position)

Interface

• Communication Control

  LAN, Wi-Fi, Serial, IR

• Network Terminal

  LAN x 1, RJ45, 1000Base-T

• SDI OUT Terminal

  BNC jack (output only) x 1, 0.8 Vp-p/75 Ω, unbalanced
  SMPTE 424, SMPTE 425, SMPTE ST 299-2 compliant
  Embedded audio, Time code (VITC/LTC)

• GEN-LOCK Terminal

  BNC jack x 1, 1.0 Vp-p/75 Ω, input only

• HDMI OUT Terminal

  HDMI connector x 1, output only

• RS-422 Terminal

  RJ45 connector x 1

• INPUT 1/INPUT 2 Terminals

  XLR/Audio Input (3-pin jack) (pin1: shield, pin2: hot, pin3: cold), 2 sets, balanced
  Sensitivity (MIC): -60 dBu (Manual volume center, full scale -18 dB)/600 Ω/Att.: 20 dB
  Sensitivity (LINE): +4 dBu (Manual volume center, full scale -18 dB)/1 kΩ or more
  Supply Voltage: 48 V DC (Bias resistance: 6.8 kΩ)

• MIC Terminal

  ϕ3.5 mm stereo mini jack (unbalanced, plug-in power supported)
  Sensitivity (MIC): -72 dBV (Manual volume center, full scale -18 dB)/1 kΩ or more/Att.: 20 dB
  Sensitivity (LINE): -10 dBV (Manual volume center, full scale -18 dB)/1 kΩ or more
  Supply Voltage: 2.4 V DC (Bias resistance: 2.2 kΩ)

• USB Terminal

  Type-A (USB 2.0) x 1 (future expansion)

Physical Features

• Operating Environment

  Temperature
  0°C – +40°C (+32°F – +104°F)
  Humidity
  10% – 90% (without condensation)

• Power Supply

  PoE: PoE+ power supply via LAN connector (IEEE802.3at compliant)
  – PoE cannot be used
  External power source: 24 V DC (using included AC adaptor)

• Power Consumption

  PoE+ Input: Approx. 19.6 W* max. (body only)
  DC Input: Approx. 18.6 W max. (body only)

  * Class 4 (25.5 W required) for power supply devices

• Dimensions (W x H x D)

  Approx. 200 x 269 x 208 mm (7.87 x 10.59 x 8.19 in.) (excluding protrusions)

• Weight

  Approx. 4.1 kg (9.04 lb.) (body only)

• IP Rating

  -
