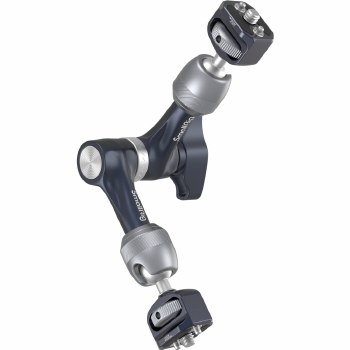

SmallRig 4194 Rosette Arm (7”)

The SmallRig 4194 Rosette Arm (7") is made of aluminium and stainless steel. It has 1/4"-20 screws and stretch pins at both ends for securely attaching accessories, especially with anti-twist holes such as monitors, LED video lights, microphones, mobile phones, iPads and action cameras.

Highlight

• Stretchable pins and 1/4"-20 screws prevent twisting
• Load capacity of up to 3 kg
• New locking structure at the rosette connection

When locking accessories, the thumb screw helps and has holes for hex spanners for further tightening. The ball heads, which are adjustable 360 degrees, have a spiral pattern to increase friction and can support up to 3 kg of load. On the stainless steel rosette joint is a spring for easier angle adjustment.

An ergonomically designed anti-slide thumb lever, with a built-in pressure ball bearing, feels smooth and comfortable and locks the arm and ball heads quickly in a second. This rosette arm is CNC milled for increased robustness and durability and also features pads on both accessory mounts to prevent scratches.

Characteristics

• Stretchable pins
• 1/4"-20 screws
• Load capacity up to 3 kg
• New locking structure at the rosette joint
• Dimensions: 178.0 x 69.0 x 25.5 mm
• Weight: 214.0 ± 5.0g
• Material: aluminium alloy, stainless steel, silicone
• 2-year warranty

In the box

• 1 x SmallRig 4194 Rozet Arm (7")
