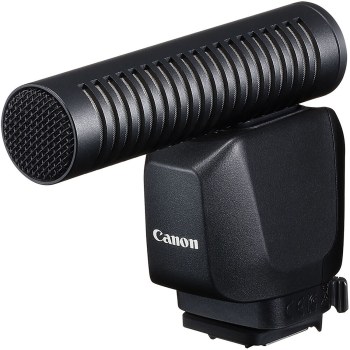

Canon DM-E1D Stereo Microphone
)
Bring your audio into the digital age with crisp, clear sound from a microphone that makes use of Canon’s Multi-function shoe, delivering reliable performance and simple operation.
Digital Audio for Clear, Stunning Sound
Outputting a digital signal for cleaner audio, the Directional stereo microphone DM-E1D microphone slides onto your camera’s Multi-function shoe with no cables for a reliable, secure connection - leaving you free to focus on the moment.
High quality digital audio
Using digital signal processing for a cleaner, crisper audio signal helps deliver a richer experience – with a soundscape that puts the audience at the heart of the performance.
Cableless connection
Sliding and locking easily onto the Multi-function shoe of compatible cameras, the Directional stereo microphone DM-E1D is entirely cableless for a reliable and secure connection, with low noise.
Power direct from the camera
Attach Directional stereo microphone DM-E1D with confidence and never worry about how much power is left in the microphone’s battery – as it is powered directly from the camera.
Directional for precise control
Three modes of directional pick-up give you the flexibility to capture audio on your terms. Switch between shotgun (monaural), 90° or 120° stereo for different sized spaces.
Easy operation from the camera menu
Press the MENU button on the microphone to bring up the microphone settings menu on the camera’s LCD, allowing for fast, simple operation and control.
| Microphone Characteristics | |
|---|---|
| Microphone Type | Back-electret-condenser type stereo microphone |
| Directional Sound Pick-Up | Shotgun (Monaural) 90° and 120° (Stereo) |
| Sensitivity | SHOTGUN: -16dB (1kHz, 0db=1V/Pa) 90°: -18.7dB (1kHz, 0db=1V/Pa) 120°: -20dB (1kHz, 0db=1V/Pa) |
| Frequency | SHOTGUN: 100 Hz - 10000 kHz 90°: 100 Hz - 10000 kHz 120°: 100 Hz - 10000 kHz |
| S/N Ratio | 62 dB or higher (1 kHz, 1 Pa) |
| Audio Output | |
| Analogue / Digital | Digital |
| Bits | 16-bit |
| Sampling Frequency | 48 kHz |
| Attenuator | Yes |
| Wind Filter | Yes |
| Interface | |
| Output Terminal | Multi-Function foot |
| Mounting Shoe | Multi-Function shoe only |
| Power Source | |
| Battery | Powered from the camera |
| Power Consumption | 0.11 W |
| Miscellaneous | |
| Buttons | MENU button |
| Water/Dust Resistance | Between the Multi-Function foot and camera shoe only (Dust and water seal engaged with a lever operation and locking mechanism on the foot) |
| Accessories | |
| Included | Wind screen, (Shoe) cover |
| Physical Specifications | |
| Dimensions (WxHxD) | 41.3 x 87.4 x 108.6mm |
| Weight (Body Only) | Approx. 136g |
| Working Temperature | 0 to 40 °C |
| Working Humidity | 85% or less |
